Black Color Extruded Aluminium Window Frames for high end decoration
Black Color Extruded Aluminium Window Frames for high end decoration
Black Color Extruded Aluminium Window Frames for high end decoration
Black Color Extruded Aluminium Window Frames for high end decoration
Specifications
Brand Name :
MAXL
Certification :
ISO9001, ISO14001, OHSAS18001
Place of Origin :
CHINA
MOQ :
500 Kg
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50000Kg Per Month
Delivery Time :
7-15 work days
Packaging Details :
EPE Foam together with Kraft Paper
Material :
Alloy Aluminium 6063 T5, 6061 T6
Color :
Black or Sliver
Surface Treatment :
Electrophoresis
Length :
6m Max
Thickness :
0.8mm-1.2mm
Application :
Windows, Doors, etc
Description

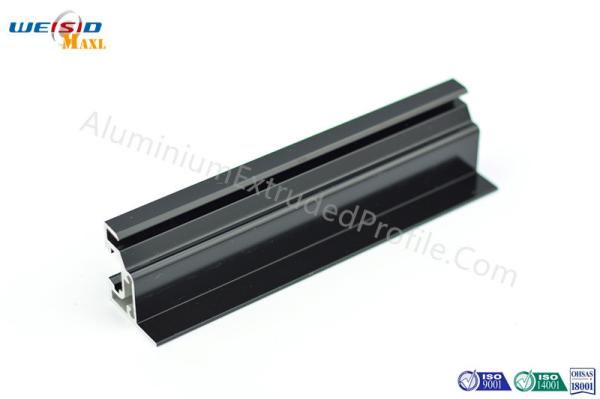

Black Color Aluminium Extruded Profile Frame With Electrophoresis Treatment / Windows Frame

Descrition:

Black color Electrophoresis Aluminium extruded profile is the most popular style for windows and doors frame application. It is mainly applied in the top-end decoration. The surface is much smoother than anodized aluminum profile. It has a bright finish looking, bright and shining. Its main market is for USA, European, East-South Asian.

Brief Introduction:

Brand

MAXL

Alloy

6063-T5,6061-T6

Profile Shape

square, round, flat, angle, T profile etc

Color

white, black, silver, bronze, gold, champagne, copper, dark, etc

Maximum Length

6m

Surface Treatment

anodizing, electrophoresis, powder coating, sand blasting, wood grain transfer, matt, mill finish etc

Usuage

commercial building, windows and doors, curtain walls, solar energy etc

Packing

1. protective film and shrinkable plastic bag 2. protective film and kraft paper 3.peral wool and brown packing paper

Port

QINGDAO

Delivery

7-15 days

Charge

aluminum ingots + process

Chemical Composition:

Alloy

Chemical compositon

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

other

Al

6061

0.40~0.8

0.7

0.15~0.40

0.15

0.8~1.2

0.04~0.35

0.25

0.15

0.05

0.15

rest

6063

0.20~0.6

0.35

0.1

0.1

0.45~0.9

0.1

0.1

0.1

0.05

0.15

rest

Aluminum Profile meter weight( kg/m) tolerance

  • Wall thickness 1.2 : ±5﹪ kg/m
  • Wall thickness 1.0-1.1: ±7﹪kg/m
  • Wall thickness 0.8-0.9: ±8﹪kg/m
  • Wall thickness 0.6-0.7: ±10 kg/m﹪
  • Wall thickness <0.6: ±12﹪kg/m
  • Anodized thickness: 8~12μm

Competitive Advantages:

  • Cost: The whole production lines are adopted, produces the products begin from aluminum ingot, minimize the cost from every single step.
  • Quality: The modern management and advanced equipments create the stable and super quality.

E.G: The most advanced aluminum rod homogenizing furnaces are adopted to make the aluminum rod more stable.

Automatic digital control anodized production lines with advanced anodizing formula creates the even surface and control the anodized thickness within 8 to 12μm. The precision is much better than manual operation.

  • Service: Any request will be replied within 24 hours, Local office in Mexico, Colombia and Canada, no communication problem, no time difference problem.

You can also get these advanced conditions below:

  1. More than 400 types moulds are adopted, can meet almost all kinds of design in South American market.
  2. Good Quality Control, CE, ISO certificates approved.
  3. Fast Delivery, Only 15 Days which is not easy achieve for other factory in China.
  4. Expert export Package, perfect protection, length could reach to 5.995m, full loaded and minimized the waste space of 20GP and 40HQ container.

Production Process:

Aluminum ingot -> Aluminum Rod -> Homogeneous processing -> Extrusion->Aging Furnace->Anodizing->Electrophoresis

Black Color Extruded Aluminium Window Frames for high end decoration

Black Color Extruded Aluminium Window Frames for high end decoration

Packing process

Pearl wool-> Heat shrinkable file-> Kraft

Each step will ensure the safety for transporation.

Black Color Extruded Aluminium Window Frames for high end decoration

Have you met the problems with your supplier below?

  • No suitable mould
  • The quantity is too less to produce
  • High rate in surface scratching
  • Long production time
  • Damaged in shipping
  • Language problem
  • Low efficiency because of time difference

Try MAXL, the expert manufacturer of aluminum profile for South American market, ready to serve you all the time.
