Specifications
Brand Name :
MAXL
Certification :
ISO9001, ISO14001, OHSAS18001
Place of Origin :
CHINA
MOQ :
500 Kg
Payment Terms :
L/C, T/T
Supply Ability :
5000T Per Month
Delivery Time :
7-15 work days
Packaging Details :
EFE Foam together with Kraft Paper
Material :
AA6063 T5, AA6061 T6
Application :
Windows
Color :
Green
Layer :
Three Layers
Style :
Wood Aluminium Combination Window
Description

Aluminium Window Profiles / Green Color Three Layers Glass Combined Windows

Descrition:

Three layers glass aluminium window profiles are designed for high-end market. And it is applicated in high grade business building and apartment which has strict requests in sound insulation.

It has many features such as beautiful looking, super sound and heat insulation,easy install and environment friendly and so on.

Customer desgin could be acceptable.

Company Brief Intruduction:

MAXL is the professional manufacturer of aluminium products including aluminium rod, aluminium profile, aluminium sheet, aluminium composite panel, aluminium rim since 2009. Focus on South American market. Now we have over 400 sets mould of aluminium profile which can be satisfied with all kinds of design in such market.

Chemical Composition(%)

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others

Al

6061

0.40-0.80

0.70

0.15-0.40

0.15

0.80-1.20

0.04-0.35

0.25

0.15

0.15

remainder

6063

0.20-0.60

0.35

0.10

0.10

0.45-0.90

0.10

0.10

0.10

0.10

remainder

Mechanical Property

Alloy

Temper

Tensile Strength

Yield Strength

Elongation

6063

T5

>160Mpa

>110Mpa

>8%

6063

T6

>205Mpa

>180Mpa

>8%

6061

T6

>265Mpa

>245Mpa

>8%

Anodized

oxide layer

(average thickness)

AA10

≥10μm

AA15

≥15μm

sealing quality

≤30mg/dm2

Electrophoretic Coating

composite layer

(average thickness)

A

≥21μm

B

≥16μm

layer hardness

≥3H

gird test

≥0

Powder Coating

minimum local thickness

≥40μm

indentation hardness

≥80

gird test

≥0

Competitive Advantage:

1: More than 400 types moulds, can meet almost all kinds of design in South American market.

2: Good Quality Control,CE,ISO certificates approved.

3: Fast Delivery, Only 15 Days which is not easy achieve for other factory in China.

4: Expert export Package, perfect protection and full load the container without any space waste.

5: Quick Response, within 48 Hours after the complain or inquiry from customer.

6: No language problem, we have local agents in Columbia, Canada, Chile, Mexico.

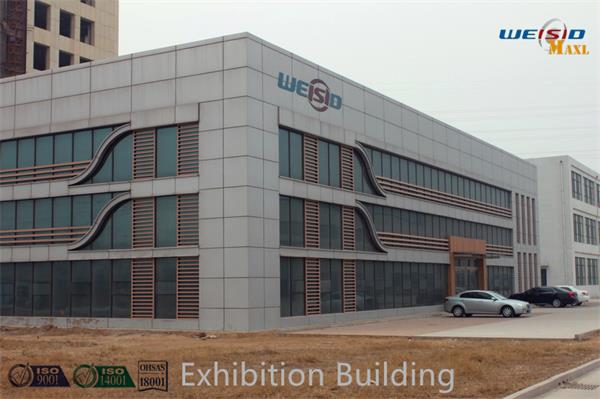

Factory and equipments:

Extruded Aluminium Window Profiles / Green Color Three Layers Glass Combined Windows

Extruded Aluminium Window Profiles / Green Color Three Layers Glass Combined Windows
