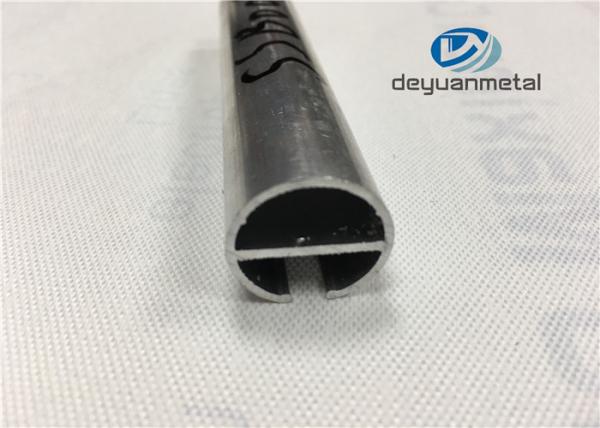

CNC Process Aluminium Construction Profiles Thickness 1.2mm 6063 6060 6463 T5 T6 T66
CNC Process Aluminium Construction Profiles Thickness 1.2mm 6063 6060 6463 T5 T6 T66
Specifications
Brand Name :
DeYuan
Certification :
ISO9001:2004, SGS
Place of Origin :
China
MOQ :
500kgs
Delivery Time :
20 days
Packaging Details :
Packed with EPE ,Pallet or wooden case
Price :
Negotiable
Place of oringin :
China
Alloy temper :
6063-T5
Surface treatment :
Mill finish
Quality Standard :
GB 5237-2008
Application :
Curtain Wall
Length :
5.95m
Payment Term :
T/T
Processing :
CNC process
Description

CNC Process Aluminium Construction Profiles Thickness 1.2mm 6063 6060 6463 T5 T6 T66
Detailed Product Description

Product Name:

Mill Finish Aluminium

Alloy:

6063,6463



Material :



Aluminium Alloy


Surface Treatment:

Mill finish,Powde coating, wood grain

Deep Process :

Cutting,Drilling,Bending

Temper:

T5,T6

Mill Finish Aluminium Extruision Profile For Curtain Wall With 6063-T5


Description:

1) Material: 6063 6060 6463 T5 T6 T66
2) Surface: Mill Finished, Anodizing, Electrophoresis, Powder Coating ,Polishing, Wooden grain, Sand Blasting
3) Color: Clear Satin, Bronze, Black, Golden, Silver, other colors for Powder Coating
4) MOQ: 1ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
5) Length:
For Anodizing and Electrophoresis: Maximum 6.8 Meters
For Powder Coating : Maximum 12 Meters
6) Packing:
A) EPE, waterproof paper wrapped in small bundles.
B) Paper interleave each piece and packing in wooden box and finally on Steel Rack to pull into container
7) Sample delivery: Two weeks (one week for mould +one week making sample)
8) Sample design: It is better we can get your drawing or sample, we mainly make according to your design, and we can keep confidential for your design.
9) Maximum extruder machine: 3500 tons; Minimum extruder machine: 500 tons
Primary Technical Data

1) Chemical composition

Alloy

Si

Mg

Fe

Cu

Mn

Zn

Cr

Ti

6063

0.2~0.6

0.45~0.90

<0.35

<0.10

<0.10

<0.10

<0.10

<0.10

6060

0.3~0.6

0.35~0.60

0.1~0.3

~

<0.10

<0.15

<0.05

~

6463

0.2~0.6

0.45~0.90

<0.15

<0.20

<0.05

<0.05

~

~

6005

0.6~0.9

0.40~0.60

<0.35

<0.10

<0.10

<0.10

<0.10

<0.10

6061

0.4~0.8

0.80~1.2

<0.70

0.15~0.4

<0.15

<0.25

0.04~0.35

<0.15

6082

0.7~1.3

0.60~1.2

<0.50

<0.1

0.4~1.0

<0.20

<0.25

<0.10

6351

0.7~1.3

0.40~0.8

<0.50

<0.1

0.4~0.8

<0.20

~

<0.10


2) Mechanical property

Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T5

≥ 265Mpa

≥ 245Mpa

≥ 8%


Business areas :
(1)Extrusions
Extrusions is a producer of extruded aluminium profiles. Sites also handle cutting, bending, anodizing and painting. With production facilities across the world, Extrusions is organized in three business areas, covering the Americas, Asia, and Europe.
(2)Building Systems
Building Systems develops and sells aluminium-based window, door and facade products. This includes the development of energy-saving concepts. Our company has a portfolio Building System and Original Systems - to ensure a proper response to the various segments of the global market.
(3)Precision Tubing
Precision Tubing develops and markets aluminium tubing and tubing solutions primarily for heat transfer applications in the automotive industry and in the heating, ventilation, air conditioning and refrigeration industry. Our aluminium solutions also are used in solar market segments and in tube lines for carrying liquids or gases.
Equipment:

Production linesQuantityMax product length
Extrusion press26 press range from 500MT to 2500MTCircumcircle diameter≤2200mm
Anodizing and electrophoresis3≤7500mm
Powder Coating2≤8500mm
Wood Grain1≤8500mm
Painting1≤8500mm
Polishing1≤6000mm
Brushing1≤6000mm
