Reflective Aluminum Circle Sheet O Temper 1050 / 1100 / 3003 Road Safety Sign
Reflective Aluminum Circle Sheet O Temper 1050 / 1100 / 3003 Road Safety Sign
Reflective Aluminum Circle Sheet O Temper 1050 / 1100 / 3003 Road Safety Sign
Reflective Aluminum Circle Sheet O Temper 1050 / 1100 / 3003 Road Safety Sign
Specifications
Brand Name :
Trumony
Model Number :
TR-Al026
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
5 ton
Price :
negotiation
Supply Ability :
100ton/week
Delivery Time :
15-30 days
Packaging Details :
export seaworthy wooden case
Alloy :
1050 1060 3003
Temper :
O-H112
Thickness :
0.5-8.0mm
Diameter :
100-1000mm
Packing :
in seaworthy wooden pallet or case
Description

Reflective Circle Aluminum Traffic Sign for Road Safety Sign 1050 / 1100 / 3003

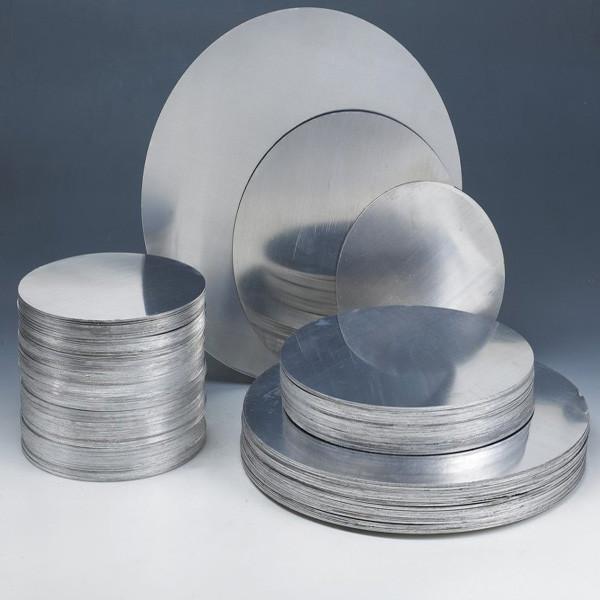

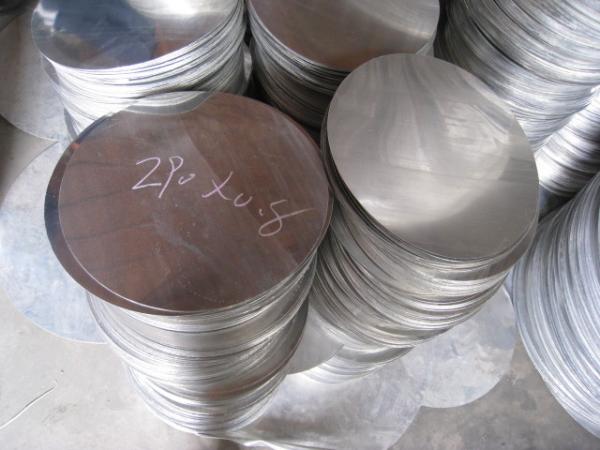

Aluminum circle is also called aluminum discs,aluminum stamping,aluminum round and aluminum blank circle etc.

Aluminium Circle
Alloy: 1050, 1060, 1070, 1100, 3003
Temper: O, H22, H14, H16
Thickness: 0.50~8.0mm
Diameter: 100~1000mm

Product Range:
1) Product Specifications:

Product Name Alloy Purity Hardness Specifications(mm)
Thickness Diameter
Aluminum Circle 1050 1060 3003 96.95-99.70% O,H12,H14 0.5-6.0mm 20-980mm

1*** non alloy, 3**** is alloy

2) Chemical Composition (%):

Alloy Si Fe Cu Mn Mg Cr Ni Zn Ca V Ti Other Min Al
1050 0.25 0.40 0.05 0.05 0.05 - - 0.05 - 0.05 0.03 0.03 99.5
1070 0.25 0.25 0.04 0.03 0.03 - - 0.04 - 0.05 0.03 0.03 99.7
3003 0.60 0.70 0.05-0.20 1.00-1.50 0.03 - - 0.10 - - - 0.15 96.95-96.75

3) Product Properties:

Temper Thickness(mm) Tensile Strength Elongation(%) Standard
O 0.4-6.0 60-100 ≥ 20 GB/T3190-1996
H12 0.5-6.0 70-120 ≥ 4
H14 0.5-6.0 85-120 ≥ 2

Aluminum Circle Process:
Aluminum Ingots --- Melting Furnace – Holding Furnace --- D.C. Caster --- Slab ---- Scalper --- Hot Rolling Mill – Cold Rolling Mill – Punching – Annealing Furnace -- Final Inspection – Packing --- Delivery

Application of Aluminum Circle:
As a main supplier of Aluminium Circle, we are manufactured from pure aluminum and are used in cookware and engineering, such as cooking wares, lighting purpose, cooker, frypan, pots, kettles, reflector of the light, etc...Deep drawing and hard anodizing quality Aluminium Circle Sheet can be supplied.Our circles are excellent material for producing cookware, utensil, pots, pans and kettles.

Aluminum Circle / Aluminium disc Features:
1. Wide range of selection on circles' size.
2. Excellent Surface Quality for lighting reflectors.
3. Excellent deep drawing and spinning quality.
4. We provide heavy gauge circles with thicknesses up to 5mm diameter up to 1200mm, which would meet all your needs.
5. Anodizing Quality and Deep Drawing Quality which is suitable for cookware as well.
6. Well-Protected Packing.
