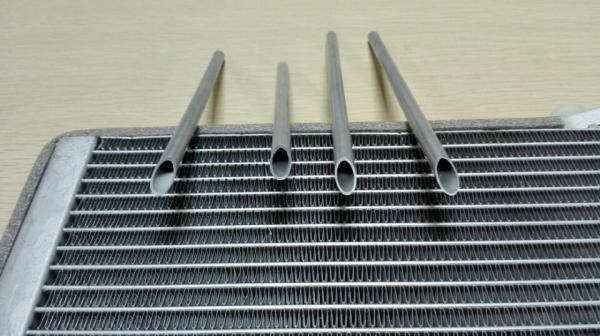

Internally Enhanced Round Aluminum Tubing 3003 / 3103 Threaded Aluminum Pipe
Internally Enhanced Round Aluminum Tubing 3003 / 3103 Threaded Aluminum Pipe
Internally Enhanced Round Aluminum Tubing 3003 / 3103 Threaded Aluminum Pipe
Internally Enhanced Round Aluminum Tubing 3003 / 3103 Threaded Aluminum Pipe
Internally Enhanced Round Aluminum Tubing 3003 / 3103 Threaded Aluminum Pipe
Internally Enhanced Round Aluminum Tubing 3003 / 3103 Threaded Aluminum Pipe
Specifications
Brand Name :
Trumony
Model Number :
TR-014
Certification :
ISO 9001:2000,ISO/TS16949:2002
Place of Origin :
China
MOQ :
3-5ton
Price :
negotiable
Supply Ability :
20000mts
Delivery Time :
15-20days
Packaging Details :
plywood case
Material :
3000 Series
Thickness :
0.45-0.8mm
O.D. :
6.35-9.52mm
Function :
Increase heat transfer rate,decrease material cost
Application :
Evaporator, Condenser, Connection tube
Description

3003 / 3103 Internally Enhanced Round Tube / Aluminum Inner Grooved Tube

Product Description:

The Aluminum Inner Grooved Tube is following a helical pattern and have been optimized to improve heat transfer. The improvement in heat transfer coefficient of the tube is two times what can be achieved with
traditional smooth bore tubes3. This increased efficiency can help achieve a more compact design of the heat exchangers and a reduction in refrigerant load. different grooves depth and geometry satisfy the specific regional requirements and refrigerants in use.

Parameter for Aluminum Inner Grooved Tube

Specification bottom wall thickness Tooth height Tooth number Helix Angle Rib-top Angle g/m
φ7mm 0.4-0.5 0.05-0.18 40-50 18° 50° 28+/-3
φ9.52mm 0.45-0.55 0.05-0.18 45-55 18° 50° 45+/-3
φ7.94mm 0.4-0.5 0.05-0.18 40-50 18° 50° 40+/-3

The parameters in above form can also be adjusted as per customer's request.
Tensile:120MPa min
Elongation:35% min
Expanding:40% min
Density:2.7

Application:Air-conditioner heat exchanger system

Product feature:
1. Light-weight
2. Good thermal conductivity properties and electrical conductivity
3. Good corrosion resistance
4. Good forming and bending properties
5. High recycling value
6. Small deviation range
7. High surface quality

Production time:15-20days
