Specifications
Brand Name :
Trumony
Model Number :
TR-ACT002
Certification :
IATF/ISO/SGS
Place of Origin :
China
MOQ :
500KG for mass quantity,sample quantity can also be arranged
Price :
negotiable
Delivery Time :
30days including tooling time
Packaging Details :
Ply-wood box specialized for export
Payment Terms :
T/T, L/C, D/P, D/A
Supply Ability :
100000 tons yearly
Alloy :
3003,3102,1100,1050
Temper :
O,F,H111,H112
Shape :
Flat
Surface :
Zn spraying / without Zn spraying
Thickness :
1-10mm
Width :
8-200mm
Length :
500-3000mm
Applications :
Radiators,Condensers,Evaporators
Description

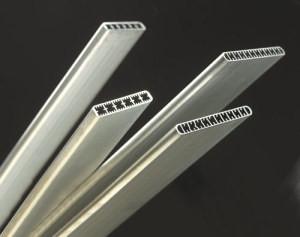

MultiPort Extrusions / Microchannel Aluminum Extruded Tubes 1100 / 3003 / 3102


1. Product Introduction:

The Aluminium Multi Port Extruded tubes,also called micro-channel aluminum tubes,are unique tubes developed with highly refined manufacturing quality. With their large internal surface area, they can achieve more efficient heat transfer and hence are widely used in highly effective heat exchangers.


2. The Aluminium Multi Port Extrusion (MPE) or microchannel tube is unique tube developed with the highest manufacturing quality and is characterized by the following properties:

1) Low weight
2) Excellent conductor of heat and electricity
3) High corrosion resistance
4) High recycling value
5) High surface quality
6) High pressure resistance


3. Commonly used material chemical composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) 0.05-0.20 ≤0.05 --- --- ≤0.10 --- ---
3 3102 ≤0.40 ≤0.70 ≤0.10 0.05-0.40 --- --- ≤0.30 --- ≤0.10
4 3003 ≤0.15 ≤0.15 ≤0.01 0.90-1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05


4. Supply state and mechanical properties

Alloy Temper Tensile Strength Yield Strength Elongation

1050

 O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%


5. The corrosion resistance performance
Salt spray test ≥750hours

6. The pressure resistance performance

Automobile Condensers Household Condensers Evaporators
≥9MPa ≥13.5 MPa ≥3.5 MPa

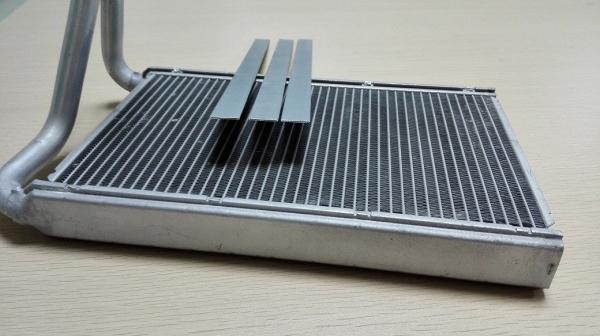

7. Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:
1) Condensers
2) Evaporators
3) Oil coolers
4) Radiators
5) Heater cores

8. Equipment introduction:

Production Line Number Equipment Details Annual Output
Heat Extruding Line 6 800T/one to one/ 1 set 12000 Tons
2000T/one to four/2 sets
2500T/one to six/3 sets (Phase II)
Decoiling Cutting Line 12 Double Tubes 10000 Tons
Tooling Center 1 Series devices 5000 sets
Industrial Profiles Production Line 1 1650T 4500 Tons
Integrated Productivity Micro channel aluminum flat tube: 12000 Tons
Industrial Profiles: 4500 Tons

9. The Multi Port Extruded profiles are available in various sizes and alloys, ensuring the best properties for the purpose required.We could also produce the size as per our customers' design.

10. Package: Shipped in the form of coil or straight with fixed length.


11. Surface Treatment : With Zinc spraying or without Zinc spraying.

MultiPort Extrusions / Microchannel Aluminum Extruded Tubes 1100 / 3003 / 3102
