Flat Oval Aluminum Radiator Tube Micro Channel Aluminum Flat Tube O F Temper
Flat Oval Aluminum Radiator Tube Micro Channel Aluminum Flat Tube O F Temper
Flat Oval Aluminum Radiator Tube Micro Channel Aluminum Flat Tube O F Temper
Flat Oval Aluminum Radiator Tube Micro Channel Aluminum Flat Tube O F Temper
Specifications
Brand Name :
Trumony
Model Number :
3003/3102/1100
Certification :
ISO 9001:2000,ISO/TS16949:2002
Place of Origin :
China
MOQ :
3-5 Ton
Price :
negotiable
Delivery Time :
15-20days
Packaging Details :
plywood case
Alloy :
3003,3102,1100,1050
Temper :
O,F,H111,H112
Shape :
Flat Oval
Applications :
Radiators,Condensers,Evaporators
Surface :
Zinc-spraying or mill finished
Description

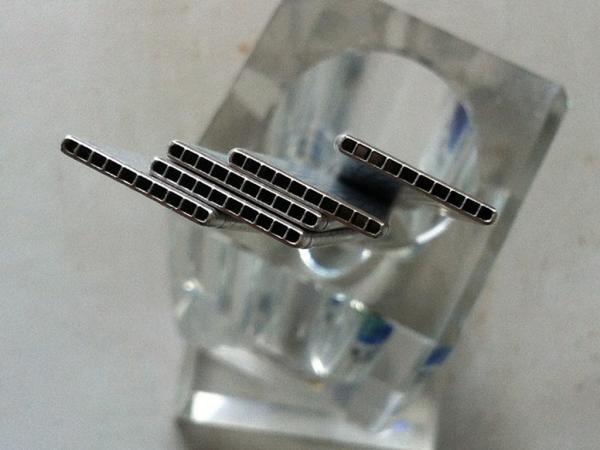

Aluminium Multi Port Extruded Tube For Heat Exchangers / Micro Channel Aluminum Flat Tube


Product introduction:

The Aluminium Multi Port Extruded tubes are unique tubes developed with the highest manufacturing quality. With their large internal surface area, they can achieve more efficient heat transfer and hence are ideal for use in highly effective heat exchangers.
The aluminium Multi Port Extruded Tube is a highly refined quality product and is characterized by the following properties:
1. Low weight
2. Excellent conductor of heat and electricity
3. High corrosion resistance
4. High recycling value
5. High pressure resistance
6. High surface quality


Commonly used material chemical composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) 0.05-0.20 ≤0.05 --- --- ≤0.10 --- ---
3 3102 ≤0.40 ≤0.70 ≤0.10 0.05-0.40 --- --- ≤0.30 --- ≤0.10
4 3003 ≤0.15 ≤0.15 ≤0.01 0.90-1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05


Supply state and mechanical properties

Alloy Temper Tensile Strength Yield Strength Elongation

1050

 O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%


The corrosion resistance performance
Salt spray test ≥750hours

The pressure resistance performance

Automobile Condensers Household Condensers Evaporators
≥9MPa ≥13.5 MPa ≥3.5 MPa

Applications:

1. The aluminium micro multi port extruded tube is primarily used for the following applications:
Condensers / Evaporators / Oil coolers / Radiators / Heater cores.
2. The aluminium macro multi port extruded tube is primarily used for the following applications:
Charge air coolers / Oil coolers / Fuel coolers / Industrial coolers.

Dimensions:

The multi port extrusions(MPE) are available in various sizes and alloys, ensuring the best properties for the purpose required.

MPE Width 7-120mm
Height 1-10mm
Wall thickness 0.2-0.5mm
Other non-standard dimensions are available upon request.


Package: In coil or Straight with fixed length.


Surface Treatment : With Zinc spraying or without Zinc spraying.
