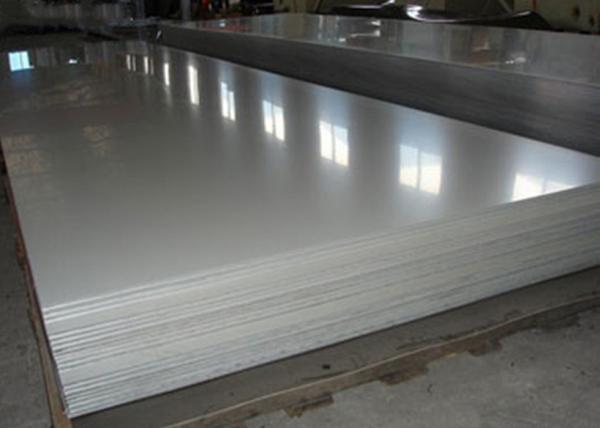

Silver Hot Rolling Aluminum Sheet For Military Shelter , 5052/3003/3004
Silver Hot Rolling Aluminum Sheet For Military Shelter , 5052/3003/3004
Silver Hot Rolling Aluminum Sheet For Military Shelter , 5052/3003/3004
Silver Hot Rolling Aluminum Sheet For Military Shelter , 5052/3003/3004
Silver Hot Rolling Aluminum Sheet For Military Shelter , 5052/3003/3004
Silver Hot Rolling Aluminum Sheet For Military Shelter , 5052/3003/3004
Silver Hot Rolling Aluminum Sheet For Military Shelter , 5052/3003/3004
Silver Hot Rolling Aluminum Sheet For Military Shelter , 5052/3003/3004
Specifications
Brand Name :
Trumony
Model Number :
3003/3004/5052
Certification :
RoHS/ISO9001/ASTM/JIS/GB/EN/ASTMB
Place of Origin :
China
MOQ :
5 tons
Supply Ability :
50, 000 Mt Per Year
Delivery Time :
according to specification and quantity
Packaging Details :
Standard Export Packaging
Color :
Silver
Technology :
Hot Rolling
Surface Treatment :
Mill Finish
Transport Package :
Standard Export Packaging
Specification :
Thickness: 0.2~3.5mm
Temper :
T3-T8
Description

Three Advantages of Military Shelter​ Aluminum Sheet:
1,Large size:Max.width reaches 2650mm and the length ≥ 10000mm
2,High Uniformity:annealed by continuous heat treatment line, and the properties differences of the same coil and between coils are small
3,Precise dimension and excellent flatness: dimension and flatness meet EN/ASTM standard.

Applications:

suitable for proof and side wall of Military Shelter​.

Alloy states:

5052,3003,3004

Specification:
1.Roof Plate

Alloy Temper Thickness(mm) Width(mm) Length(mm)
3003 H14/H16/H24/H26 0.2-3.5 2000-2650 ≥10000
5052 H32/34 0.2-3.5 2000-2650 ≥10000

2.Side Walls

Alloy Temper Thickness(mm) Width(mm) Length(mm)
3004 H36/H38 0.2-3.5 2000-2650 ≥10000
5052 H32/34 0.2-3.5 2000-2650 ≥10000

Mechanical Properties:

Alloy Temper Yield Strength(Rp0.2/MPa) Tensile StrengthRm(MPa) Elongation A(%) Standard
3003 H14 ≥115 140-180 ≥3 ASTM
H24
H16 ≥145 165-205 ≥3
H26
3004 H38 ≥215 ≥260 ≥2
5052 H32 ≥160 215-265 ≥4
H36 ≥200 255-305 ≥2

Chemical Composition:

Alloy Si Fe Cu Mn Mg Cr Zn Ti Standard
3003 0.60 0.70 0.05-0.2 1.0-1.5 -- -- 0.10 -- EN/ASTM
3004 0.30 0.70 0.25 1.0-1.5 0.8-1.3 -- 0.25 --
5052 0.25 0.40 0.10 0.10 2.2-2.8 0.15-0.35 0.10 --

Commercial terms

Minimum Order Quantity: 5 metric tons
Price: negotiation
Payment Terms: T/T or LC
Supply Ability: 50,000 mt per year
Delivery Time: 30 working days after received your down payment
Packaging Details: Standard export packaging


Terms and conditions:
1, Trade term: CIF / CFR / FOB
2, Payment term: 30% before production+70% before shipment
100% Irrevocable L/C at sight
Or we can further cummunicate with each other about this part.
3, Shipment: Normally it is about 30-35days.
4, MOQ: 5 metric tons for each thickness. (Normally it is formed according to the concrete specifications.)
5, Quantity tolerance: +/-10% of total quantity as confirmed PI.

Silver Hot Rolling Aluminum Sheet For Military Shelter , 5052/3003/3004

Our company products' range:

A variety of applications
1, Transportation(aircraft,high-speed train, ships, cars, etc.)
2, Construction(walls, ceiling, platforms, roofs,aluminum glass spacer, etc.)
3, Digital home appliances(refrigerators, air conditioners, freezers, computers, etc.)
4, Electronic(circuit board pads,capacitors, etc.)
5, Home(cooking utensils,household foil,lunch boxes, etc.)
6, Print(PS sheet, CTP sheet, etc.)
7, Other(tape,pipe packaging,anti-slip pedals, etc.)
