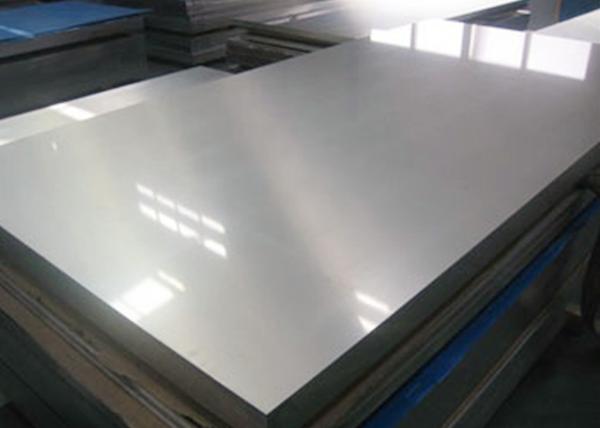

Trailer Use Thin Aluminum Sheet , Aluminium Sheet 3mm Mill Finish Surface Treatment
Trailer Use Thin Aluminum Sheet , Aluminium Sheet 3mm Mill Finish Surface Treatment
Trailer Use Thin Aluminum Sheet , Aluminium Sheet 3mm Mill Finish Surface Treatment
Trailer Use Thin Aluminum Sheet , Aluminium Sheet 3mm Mill Finish Surface Treatment
Trailer Use Thin Aluminum Sheet , Aluminium Sheet 3mm Mill Finish Surface Treatment
Trailer Use Thin Aluminum Sheet , Aluminium Sheet 3mm Mill Finish Surface Treatment
Specifications
Brand Name :
Trumony
Model Number :
3003/3004/5052
Certification :
RoHS/ISO9001/ASTM/JIS/GB/EN/ASTMB
Place of Origin :
China
MOQ :
5 tons
Supply Ability :
50, 000 Mt Per Year
Delivery Time :
according to specification and quantity
Packaging Details :
Standard Export Packaging
Color :
Silver
Application :
Transportation Tools
Technology :
Hot Rolling
Temper :
T3-T8
Surface Treatment :
Mill Finish
Alloy or not :
Alloy
Transport Package :
Standard Export Packaging
Specification :
Thickness: 0.2~3.5mm
Description

Trailer Use Thin Aluminum Sheet , Aluminium Sheet 3mm Mill Finish Surface Treatment

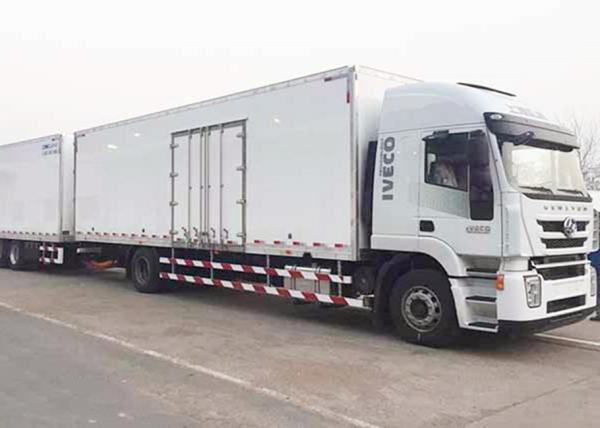

3003,3004,5052 Aluminum alloy wide sheet products suitable for proof and side wall of Van Trailer.
Max Width:2650mm
Length≥10000mm

Three Advantages of Trailer Aluminum Sheet:
1,Large size:Max.width reaches 2650mm and the length ≥ 10000mm
2,High Uniformity:annealed by continuous heat treatment line, and the properties differences of the same coil and between coils are small
3,Precise dimension and excellent flatness: dimension and flatness meet EN/ASTM standard.

Chemical Composition:

Alloy Si Fe Cu Mn Mg Cr Zn Ti Standard
3003 0.60 0.70 0.05-0.2 1.0-1.5 -- -- 0.10 -- EN/ASTM
3004 0.30 0.70 0.25 1.0-1.5 0.8-1.3 -- 0.25 --
5052 0.25 0.40 0.10 0.10 2.2-2.8 0.15-0.35 0.10 --

Specification:
1.Roof Plate

Alloy Temper Thickness(mm) Width(mm) Length(mm)
3003 H14/H16/H24/H26 0.2-3.5 2000-2650 ≥10000
5052 H32/34 0.2-3.5 2000-2650 ≥10000

2.Side Walls

Alloy Temper Thickness(mm) Width(mm) Length(mm)
3004 H36/H38 0.2-3.5 2000-2650 ≥10000
5052 H32/34 0.2-3.5 2000-2650 ≥10000


Mechanical Properties:

Alloy Temper Yield Strength(Rp0.2/MPa) Tensile StrengthRm(MPa) Elongation A(%) Standard
3003 H14 ≥115 140-180 ≥3 ASTM
H24
H16 ≥145 165-205 ≥3
H26
3004 H38 ≥215 ≥260 ≥2
5052 H32 ≥160 215-265 ≥4
H36 ≥200 255-305 ≥2


Terms and conditions:
1, Trade term: CIF / CFR / FOB
2, Payment term: 30% before production+70% before shipment
100% Irrevocable L/C at sight
Or we can further cummunicate with each other about this part.
3, Shipment: Normally it is about 30-35days.I
4, MOQ: 5 metric tons for each thickness. (Normally it is formed according to the concrete specifications.)
5, Quantity tolerance: +/-10% of total quantity as confirmed PI.

Commercial terms

Minimum Order Quantity: 5 metric tons
Price: negotiation
Payment Terms: T/T or LC
Supply Ability: 50,000 mt per year
Delivery Time: 30 working days after received your down payment
Packaging Details: Standard export packaging


Applications:

A variety of applications
1, Transportation(aircraft,high-speed train, ships, cars, etc.)
2, Construction(walls, ceiling, platforms, roofs,aluminum glass spacer, etc.)
3, Digital home appliances(refrigerators, air conditioners, freezers, computers, etc.)
4, Electronic(circuit board pads,capacitors, etc.)
5, Home(cooking utensils,household foil,lunch boxes, etc.)
6, Print(PS sheet, CTP sheet, etc.)
7, Other(tape,pipe packaging,anti-slip pedals, etc.)

Trailer Use Thin Aluminum Sheet , Aluminium Sheet 3mm Mill Finish Surface Treatment
