3003 / 3102 Aluminum Extruded Flat Tube For Automobile Condenser
3003 / 3102 Aluminum Extruded Flat Tube For Automobile Condenser
3003 / 3102 Aluminum Extruded Flat Tube For Automobile Condenser
3003 / 3102 Aluminum Extruded Flat Tube For Automobile Condenser
Specifications
Brand Name :
Trumony
Model Number :
3003/3102
Certification :
ISO 9001:2000,ISO/TS16949:2002
Place of Origin :
China
MOQ :
3-5 Ton
Price :
negotiation
Delivery Time :
15-20days
Packaging Details :
plywood case
Alloy :
3003/3102
Temper :
H112
Shape :
Flat Oval
Usage :
Automobile Condenser
Cooling method :
Direct cooling
Description

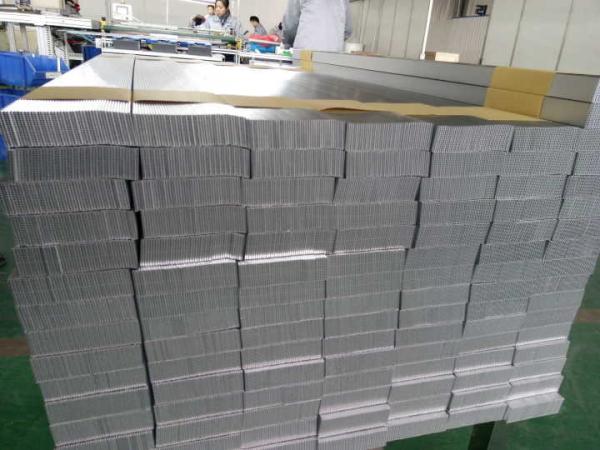

3003 / 3102 Aluminum Extruded Flat Tube For Automobile Condenser

Product Description:

Aluminum extruded flat tube is an important spare part for auto radiators/condensers etc.Good quality aluminum flat oval tubes can protect auto engine, as it ensure your radiator with high efficient cooling performance.

Commonly used material chemical composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) 0.05-0.20 ≤0.05 --- --- ≤0.10 --- ---
3 3102 ≤0.40 ≤0.70 ≤0.10 0.05-0.40 --- --- ≤0.30 --- ≤0.10
4 3003 ≤0.15 ≤0.15 ≤0.01 0.90-1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05


Supply state and mechanical properties

Alloy Temper Tensile Strength Yield Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%

Aluminum Extruded Flat Tube- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following properties:

1. Lower energy costs
2. Higher performance
3. Less space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution

Beside increased global performances, an all-aluminium brazed heat exchanger using Aluminum Extruded Flat Tube will also present better corrosion resistance. Aluminum Extruded Flat Tube are primarily used for the following applications:

Condensers
Evaporators

Oil coolers

Radiators
Heater cores

Aluminum Extruded Flat Tube are available in various sizes and alloys, ensuring the best properties for the purpose required.


Dimensions: Designed to customer specification

Package: coils or Straight with fixed length


Surface Treatment : Zinc spray / without Zinc spray

3003 / 3102 Aluminum Extruded Flat Tube For Automobile Condenser
