Chemical Composition Core 3003 + 1.5% Zn Clad 4343 Aluminium Foil Roll Thickness 0.08mm for welding Heat Exchangers
Chemical Composition Core 3003 + 1.5% Zn Clad 4343 Aluminium Foil Roll Thickness 0.08mm for welding Heat Exchangers
Chemical Composition Core 3003 + 1.5% Zn Clad 4343 Aluminium Foil Roll Thickness 0.08mm for welding Heat Exchangers
Chemical Composition Core 3003 + 1.5% Zn Clad 4343 Aluminium Foil Roll Thickness 0.08mm for welding Heat Exchangers
Specifications
Brand Name :
Trumony
Model Number :
3003/4343
Certification :
TS16949 , ISO14001 and OHSAS 18001
Place of Origin :
China
MOQ :
5 TON
Price :
negotiated
Payment Terms :
L/C, T/T
Supply Ability :
100,000 mt per year
Delivery Time :
30 working days after received your down payment
Packaging Details :
Standard export packaging
Core Alloy :
3003+1.5%Zn
Clad Alloy :
4343
Thickness :
0.08mm
Width :
1070mm
Packing :
Eye to wall
Temper :
H16
Description

4343/3003+1Zn+4343 H16 0.08 x 1070mm Aluminum Foil Roll for Automotive Heat Exchangers

1. Description of our production

Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger

1) Core Material

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 － 0.1 0.05 0.03 1
3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 0.5-1.50 0.05 0.05 2
3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 1.0-2.0 0.05 0.05 3
3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 － 1.0-2.0 0.05-0.2 - 4
3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 － 0.10 0.05 0.1 5
3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 － 0.01 6

2) Cladding Material

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
4343 6.8-8.2 0.8 0.25 0.1 － 0.2 － 0.05 1
4343+1%Zn 6.8-8.2 0.8 0.25 0.1 － 0.5-1.5 － 0.05 2
4045 9.0-11.0 0.8 0.3 0.05 － 0.2 － 0.2 3
4045+1%Zn 9.0-11.0 0.8 0.3 0.05 － 0.5-1.5 － 0.2 4
4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 － 0.2 5
7072 0.7 0.1 0.1 0.1 0.8-1.3 － － 6
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.5-1.0 － 0.03 7

3) Main mechanical of aluminum alloy and composite-material for welding heat exchanger

Alloy Code temper

Tensile Strength

Rm(MPa)

 Yield Strength Rp0.2(Mpa)

Extend Ratio

A50(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3.0
H16 185-225 ≥160 ≥1.0
H18 ≥185 - ≥0.5
TR-166 Etc.tube material H24 185-235 ≥150 ≥8

TR-116,TR-316 Etc.tube

material

 H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8

Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..

Additional: We can produce special specification according to customer’s request.

4) Produce capability

Width(mm) Thickness(mm) Length(mm) Inside Diameters(mm)
Sheet 500-1070 0.5-5.0 500-2500 -
Strip 12-1070 0.2-3.0 - 150,200,300,400,500
Foil 12-1070 0.05-0.2 - 150,200,300,400,500

Composite ratio 4-18%(per side)

Percent Clad(per side) 4-8% ＞ 8-18%
Cladding tolerance ±1.5% ±2.0%

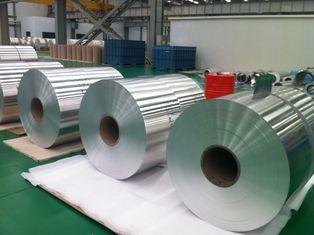

Chemical Composition Core 3003 + 1.5% Zn Clad 4343 Aluminium Foil Roll Thickness 0.08mm for welding Heat Exchangers

2. Our advantage

1. Since 1988, we have rich experience in this industry in China;

2. Good reputation in Aluminum and Copper Areas;

3. We start our productions from aluminum ingot,so we can control the quality as well;

4. We have our own development department for new material research;

5. Good experience and cooperation with big client in the world;

6. With Certificate TS16949, ISO14001 and OHSAS 18001;

7. High performance cost ratio;

8. Fast delivery time;

9. Good communication skills, and good service and understandings for customers;.

3. Application:

We dedicated to the production of clad and unclad aluminum materials for braze-type automobile heat exchangers like radiator, intercooler, condenser, evaporator and industrial heat exchangers, like air coolers for power plants, air conditioner etc.and other aluminum alloy products.

4. FAQ:

1, Q: Are you manufacturer?

A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.

2, Q: Do you accept customized orders?

A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

3. Q: How can I get one quotation faster?

A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.

4, Q: What's your MOQ?

A: Normally 1 metric tons are requested as the minimum order quantity on our side.

5, Q: What's your payment term?

A: 30% deposit in advance via T/T,balance before shipment.

Chemical Composition Core 3003 + 1.5% Zn Clad 4343 Aluminium Foil Roll Thickness 0.08mm for welding Heat Exchangers
