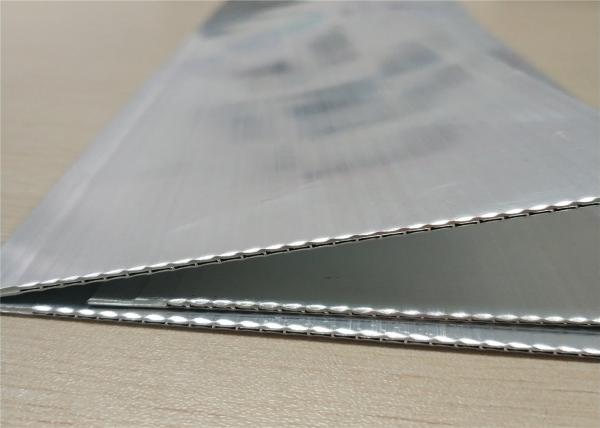

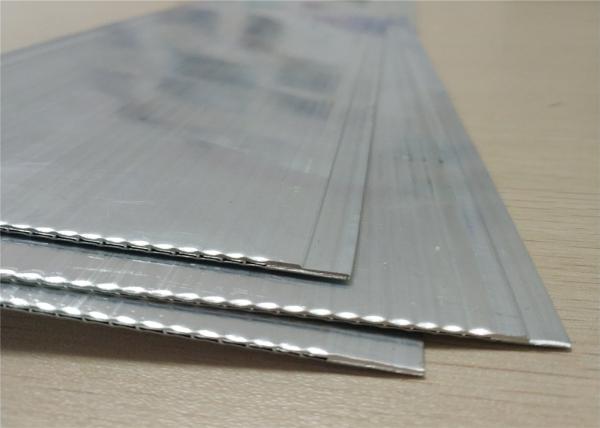

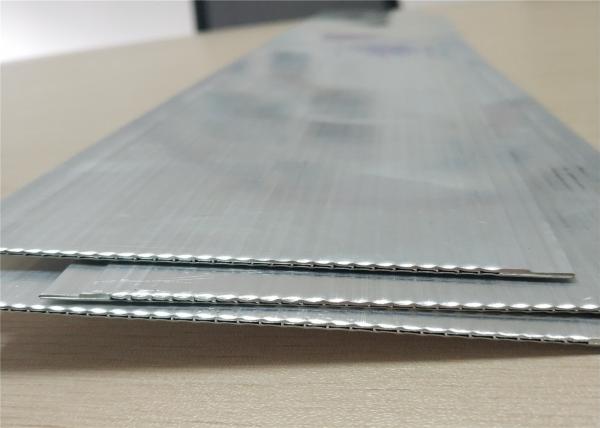

Battery Heat Transfer Aluminum Condenser Tube Extruded Channel Multi Port Flat Heat Pipe
Battery Heat Transfer Aluminum Condenser Tube Extruded Channel Multi Port Flat Heat Pipe
Battery Heat Transfer Aluminum Condenser Tube Extruded Channel Multi Port Flat Heat Pipe
Battery Heat Transfer Aluminum Condenser Tube Extruded Channel Multi Port Flat Heat Pipe
Battery Heat Transfer Aluminum Condenser Tube Extruded Channel Multi Port Flat Heat Pipe
Battery Heat Transfer Aluminum Condenser Tube Extruded Channel Multi Port Flat Heat Pipe
Specifications
Brand Name :
Trumony
Model Number :
TR-563
Certification :
CE,ISO,RoHS,UL
Place of Origin :
China
MOQ :
5Ton
Price :
US Dollar+2500+Ton
Payment Terms :
L/C, T/T
Supply Ability :
10000000kg/Year
Delivery Time :
15-45 days
Packaging Details :
Export Worthy Packing
Tpye :
Plate
Material :
Aluminum
Package :
Export Worthy Packing
Alloy :
4343/3003/4343
Temper :
O/H14/H24/H16/H18/H24
name :
Flexible Battery Pack Aluminum Radiator Parts Extrusion Micro Channel Pipe
Cnc machining or not :
CNC Machining
Size :
Customer's Requst
Description

Battery Heat Transfer Aluminum Condenser Tube Extruded Channel Multi Port Flat Heat Pipe

Product Description:
Aluminum flat tube is an important spare part for auto radiators. Good quality aluminum flat oval tubes can protect auto engine, as it ensure your radiator with high efficient cooling performance.

Our products are widely used in the field of conduction and heat dissipation of a series of products, such as new energy vehicles, lithium batteries, energy storage batteries and son on. We has worked with well-know international companies to develop relevant technical solutions and sample or supply.

The micro-channel tube also called The Multi-Port Extrusion (MPE)- is a highly refined quality product characterized by the following properties:
1. Low energy costs
2. High performance
3. Low space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution
7. Low refrigerant fill

Application:

Condensers
Evaporators
Oil coolers
Radiators
Heater cores

Our advantage

Since 2004, we have rich experience in this industry in China;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
We have our own development department for new material research;
All parts of ladder is self manufacturing, we have price advantage.
Good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Sample order is acceptable
High performance cost ratio;
Fast delivery time;
Good communication skills, and good service and understandings for customers

specification Various size as customer's requirements
Tensile Strength 95-185above
hard-solder Yes
usage Per customer's demand, our cooling plate can be used for newenergy vehicles.
We also provide designing scheme for customer's heat radiating requirement
Suface treatment anodizing ,polishing,turning ,power coating,mill finish etc
Equipment CNC ,extruding machine,cold drawn machine,heating oven,straigtening machine,cutting machine

Mechanical property
Alloy Code Temper Tensile Strength
Rm(Mpa)		 Yield Strength
(Mpa)		 Elongation(%)
TR-010,TR-020,TR-030,TR-040,
TR-050,TR-110,TR-310,TR-116,
TR-316,TR-111,TR-313,TR-121,
TR-131,TR-141,TR-150,TR-151,
TR-156Etc.		 O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3
H16 185-225 160 ≥1
H18 ≥185 —— ≥0.5
TR-166Etc. Tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8

Battery Heat Transfer Aluminum Condenser Tube Extruded Channel Multi Port Flat Heat Pipe
