Specifications
Brand Name :
Trumony
Model Number :
TR-563
Certification :
CE,ISO,RoHS,UL
Place of Origin :
China
MOQ :
5Ton
Price :
US Dollar+2500+Ton
Payment Terms :
L/C, T/T
Supply Ability :
10000000kg/Year
Delivery Time :
15-45 days
Packaging Details :
Export Worthy Packing
Tpye :
Plate
Material :
Aluminum
Package :
Export Worthy Packing
Alloy :
4343/3003/4343
Temper :
O/H14/H24/H16/H18/H24
name :
Flexible Battery Pack Aluminum Radiator Parts Extrusion Micro Channel Pipe
Cnc machining or not :
CNC Machining
Application :
Excavator,furniture,Auto /medical/agricultural/train/valve/textile,machine and AUTO
Description

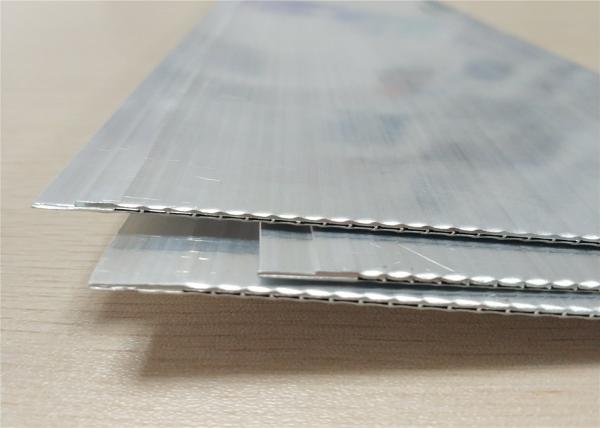

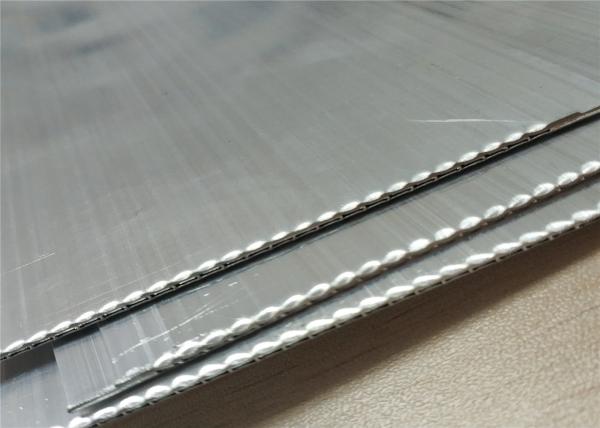

The micro-channel tube also called The Multi-Port Extrusion (MPE)- is a highly refined quality product characterized by the following properties:
1. Low energy costs
2. High performance
3. Low space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution
7. Low refrigerant fill

Application:

Condensers
Evaporators
Oil coolers
Radiators
Heater cores

Our advantage

Since 2004, we have rich experience in this industry in China;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
We have our own development department for new material research;
All parts of ladder is self manufacturing, we have price advantage.
Good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Sample order is acceptable
High performance cost ratio;
Fast delivery time;
Good communication skills, and good service and understandings for customers

CHEMICAL COMPOSITION (%)
Item Si Fe Cu Mn Mg Zn Cr Ti The rest Al
Single In total
Demand (%) Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Allowance
/ 0.4 / 0.7 / 0.1 0.05 0.4 / / / 0.3 / / / 0.1 / / / /
Test result 0.079 0.244 0.001 0.392 0.001 0.008 0.0005 0.009 / / Allowance

Mechanical property
Alloy Code Temper Tensile Strength
Rm(Mpa)
Yield Strength
(Mpa)
Elongation(%)
TR-010,TR-020,TR-030,TR-040,
TR-050,TR-110,TR-310,TR-116,
TR-316,TR-111,TR-313,TR-121,
TR-131,TR-141,TR-150,TR-151,
TR-156Etc.
O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3
H16 185-225 160 ≥1
H18 ≥185 —— ≥0.5
TR-166Etc. Tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8
