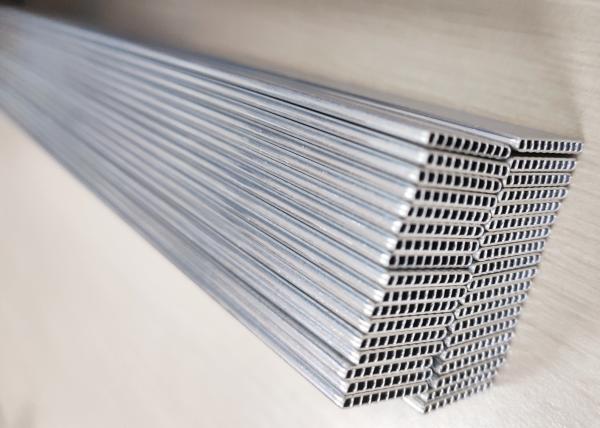

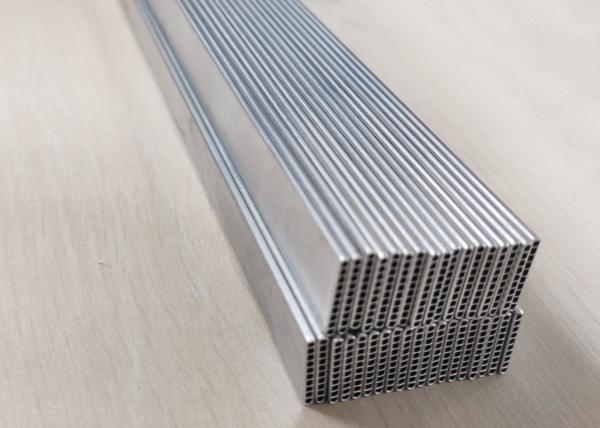

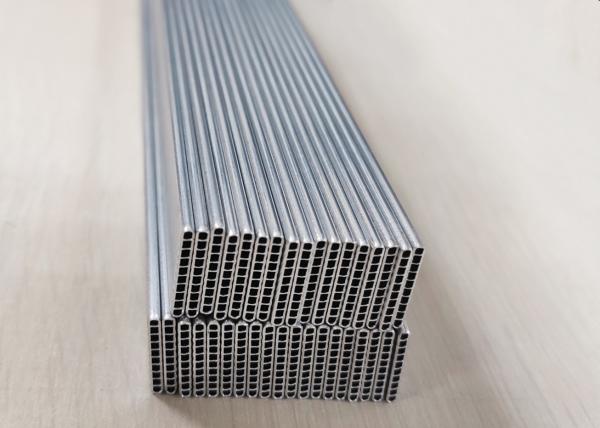

Mill Finish Micro Multi Port Extruded Aluminum Tube O / F / H111 / H112 For Evaporator
Mill Finish Micro Multi Port Extruded Aluminum Tube O / F / H111 / H112 For Evaporator
Mill Finish Micro Multi Port Extruded Aluminum Tube O / F / H111 / H112 For Evaporator
Mill Finish Micro Multi Port Extruded Aluminum Tube O / F / H111 / H112 For Evaporator
Mill Finish Micro Multi Port Extruded Aluminum Tube O / F / H111 / H112 For Evaporator
Mill Finish Micro Multi Port Extruded Aluminum Tube O / F / H111 / H112 For Evaporator
Mill Finish Micro Multi Port Extruded Aluminum Tube O / F / H111 / H112 For Evaporator
Mill Finish Micro Multi Port Extruded Aluminum Tube O / F / H111 / H112 For Evaporator
Mill Finish Micro Multi Port Extruded Aluminum Tube O / F / H111 / H112 For Evaporator
Mill Finish Micro Multi Port Extruded Aluminum Tube O / F / H111 / H112 For Evaporator
Specifications
Brand Name :
Trumony
Model Number :
customizable
Certification :
CE/RoHS/GS/ISO9001
Place of Origin :
China
MOQ :
5 tons
Supply Ability :
50, 000 Mt Per Year
Delivery Time :
according to specification and quantity
Packaging Details :
Standard Export Packaging
Color :
Silver
Shape :
Tube
Grade :
1000 or 3000 series
Specification :
according to customers' requests
Alloy states :
1050, 1100, 1197, 3102, 3r03
Surface Treatment :
Mill finish
Temper :
O/F/H111/H112
Description
1.Application:
1) car air conditioner
2) in the field of commercial:
such as household air conditioner, condenser, evaporator, fridge, oil cooler and inter cooler
2.Alloy States:
1) 1000 series:1050, 1100, 1197
2) 3000 series:3102, 3R03
3.Temper: O/F/H111/H112
4.Mechanical Properties
No. Alloy Temper Tensile Strength(Mpa) Yield Strength(Mpa) Elogation(%)
1 1050 O/F/H111/H112 ≥ 65 ≥ 20 ≥ 25
2 1100 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
3 1197 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20
4 3102 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
5 3R03 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20

5.Chemical Composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤ 0.25 ≤ 0.40 ≤ 0.05 ≤ 0.05 ≤ 0.05 - ≤ 0.05 ≤ 0.05 ≤ 0.03
2 1100 ≤ 0.95(Fe+Si) 0.05-0.20 ≤ 0.05 - - ≤ 0.10 - -
3 1197 ≤ 0.15 ≤ 0.20 0.40-0.55 0.10-0.20 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05 ≤ 0.05
4 3102 ≤ 0.40 ≤ 0.70 ≤ 0.10 0.05-0.40 - - ≤ 0.30 - ≤ 0.10
5 3R03 ≤ 0.15 ≤ 0.15 ≤ 0.01 0.90-1.10 ≤ 0.03 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05

6. Size Tolerance

Width Thickness Wall Thickness Length Lateral Curvature Frontal Curvature Twsiting Dgree
± 0.05mm ± 0.03mm ± 0.05mm ± 0.03mm ≤ L× 0.2% ≤ L× 0.25% ≤ L× 0.15%

7.Our products will be tested in strict standard before delivery, some data for your reference.

No Products' Testing Name Contents and requests
1 Corrosion Resistance Salt spray test: ≥ 750 hours
2 Zn Coating Standards 6/8/10/13± 2g/square meter
3 Flux Cotaing Standards 10-15± 2g/square meter

Mill Finish Micro Multi Port Extruded Aluminum Tube O / F / H111 / H112 For Evaporator

Mill Finish Micro Multi Port Extruded Aluminum Tube O / F / H111 / H112 For Evaporator
