1000 3000 Aluminum Micro Channel Extruded Flat Tube For EV Heat Exchanger
1000 3000 Aluminum Micro Channel Extruded Flat Tube For EV Heat Exchanger
1000 3000 Aluminum Micro Channel Extruded Flat Tube For EV Heat Exchanger
1000 3000 Aluminum Micro Channel Extruded Flat Tube For EV Heat Exchanger
1000 3000 Aluminum Micro Channel Extruded Flat Tube For EV Heat Exchanger
1000 3000 Aluminum Micro Channel Extruded Flat Tube For EV Heat Exchanger
1000 3000 Aluminum Micro Channel Extruded Flat Tube For EV Heat Exchanger
1000 3000 Aluminum Micro Channel Extruded Flat Tube For EV Heat Exchanger
Specifications
Brand Name :
Trumony
Model Number :
TR-T22001
Certification :
CE,ISO,RoHS,UL
Place of Origin :
China
MOQ :
500kg
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100000ton/Every Year
Delivery Time :
4~6wks with mold tooling time
Packaging Details :
Export Standard Packing
Material :
Aluminum Alloy
Series :
1000, 3000, 6000 series
Thickness :
1~4mm
Wall thickness :
0.15~0.6mm
Width :
8mm~60mm
Fixed length :
200mm~4000mm
Processing :
Extrusion
Surface treatment :
Mill finished
Temper :
O, H14, H24, H112
Keywords :
flat tube, extrusion tube, extruded tube
Description

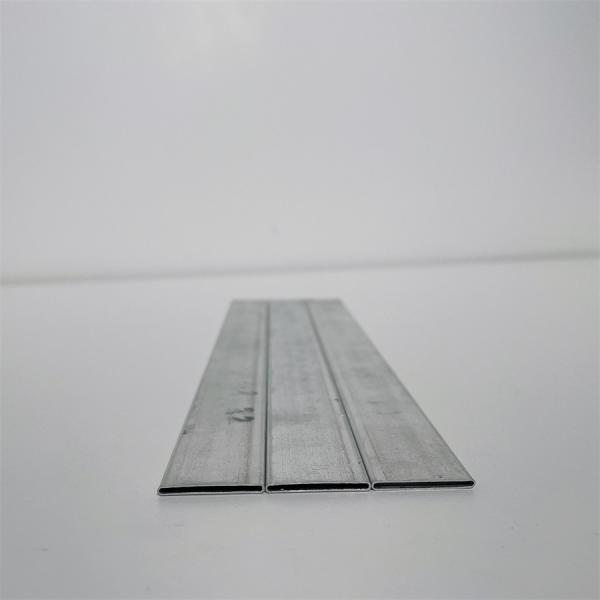

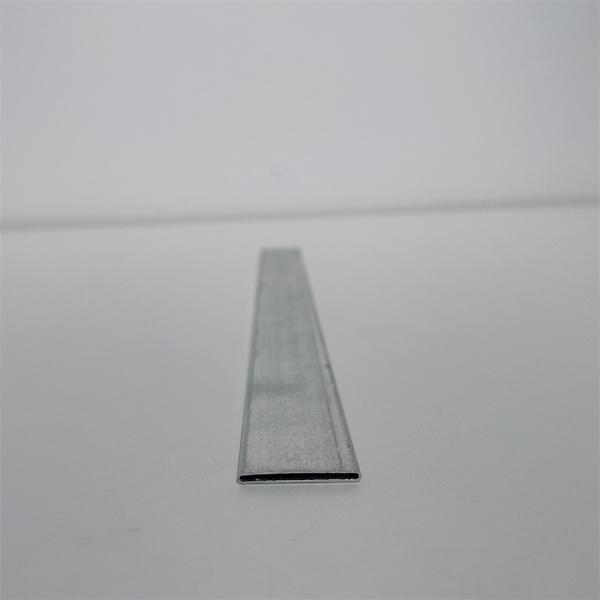

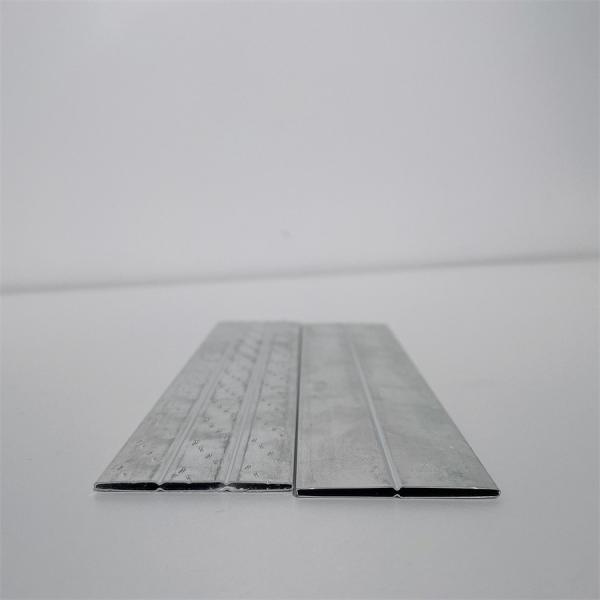

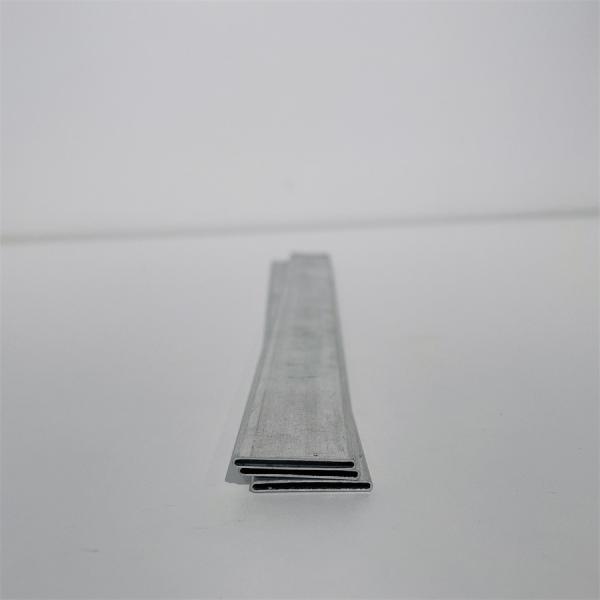

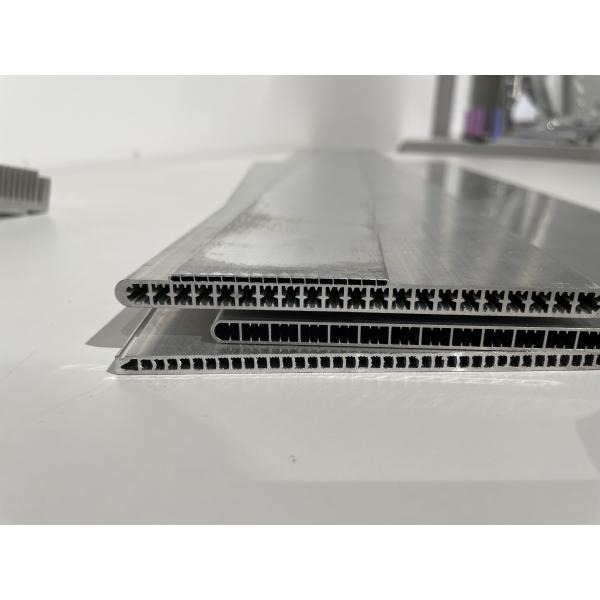

1000 3000 6000 Series Aluminum Extruded Micro Channel Flat Tube for EV Heat Exchanger

We Trumony, as a leading manufacturer of aluminum material for heat exchange industry, has deveploped and made more than 70 varieties of micro multi channel tubes. It's widely used for air condintioning, engine cooling, condenser, evaporator, radiator, heater core, oil cooler, charge air cooler/intercoolers. Qualified sample can be avaliable within 10 days according to customers' special requirements.

Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
1100 ≤0.95(Si+Fe) 0.05~0.20 ≤0.05 -- -- ≤0.10 --- ---
3102 ≤0.40 ≤0.70 ≤0.1 0.05~0.4 --- --- ≤0.3 --- ≤0.10

It can be customized per clients' request!

FAQ:

Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.

Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?
A: Yes,we can!

Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.


Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
