Electric Light Truck Liquid Based Battery Ribbon For BEV
Electric Light Truck Liquid Based Battery Ribbon For BEV
Electric Light Truck Liquid Based Battery Ribbon For BEV
Electric Light Truck Liquid Based Battery Ribbon For BEV
Electric Light Truck Liquid Based Battery Ribbon For BEV
Electric Light Truck Liquid Based Battery Ribbon For BEV
Specifications
Brand Name :
Trumony
Model Number :
TR-CY140
Certification :
ISO9001,ISO14000,IATF14969
Place of Origin :
China
MOQ :
Sample available
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100000 tons yearly
Delivery Time :
30days including tooling time
Packaging Details :
Ply-wood box specialized for export
Product name :
Liquid-Based Battery Ribbon Cooler Heat Exchanger
Type :
Electric Light Truck Battery Packs Cooling Channel
Process :
Aluminum Extrusion
Alloy :
3003
Temper :
O-H112
Application :
EV Battery Pack
Structure :
Micro channel tube+connector
Package :
cartons+pallets
Description

Electric Light Truck Battery Packs Cooling Channel System Liquid-Based Battery Ribbon Cooler Heat Exchanger

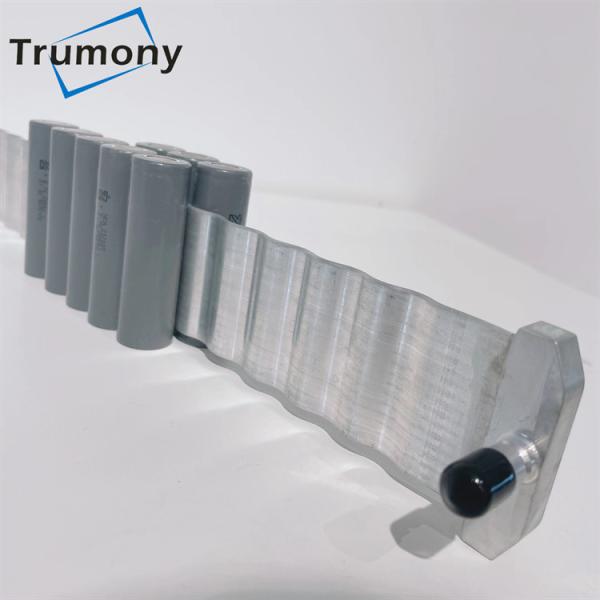

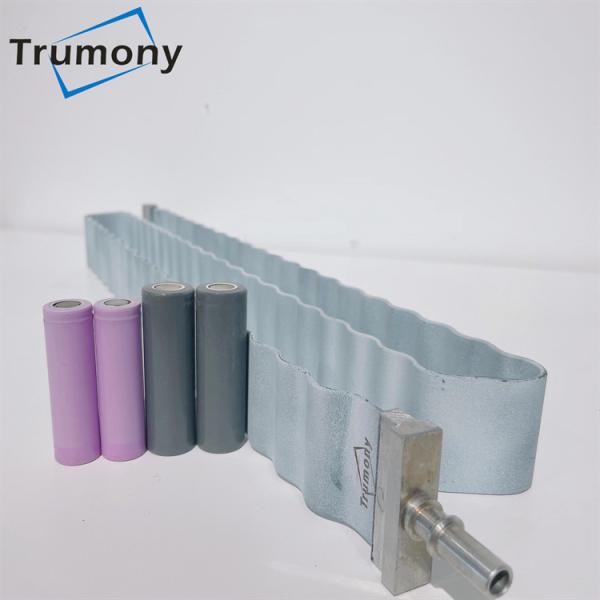

The aluminum micro channel cooling ribbon for 18650 abttery pack ,it is deisgned for small battery module just 24 cells. We make the snake tube through aluminum extrusion process ,bending and snake-shaping .Like Tesla Model S / Model X, they use the similar aluminum cooling tube for the thermal management system . Obiviously , it achieve good performance and stable heat dissipation effect. Nowdays, more and more electric vehicle companies who use the cylindrical battery pack module, they are would like to use the same snake cooling tube for EV. Moreover, except the 18650 battery cooling pipe, trumony can provide 21700 battery pack cooling solution and 3270 battery cooling tube and 4680 cooing tube .

Specification

Item aluminum cooling channels for BEV
Size As your design
Thickness 2.4mm,3mm
Application cylindrical battery pack cooling
Service Design, simulation, tooling ,prototype
Process Aluminum extrusion
Liquid cooling type cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate

Battery cooling system

1- Aluminum cooling cold plate for battery pack

2- Serpentine tube for new energy vehicle

3- Aluminum extrusion cooling plate for soft package battery pack

4- Aluminum stamping cold plate

*****Key point of design

1- Specify the battery type: cylindrical cells / square cells or prismatic cells/ soft battery or pouch cells

2- Module boundary dimensions

3- Heat dissipation requirement

4- Design and prototype budget

5- All heat exchanger choice such as the connectors,plastic quick connectors,battery cooling plate installation

With very rich experience in making cooling plates for battery packs.Below are the strength from us that you can rely on:

1. Aid in cooling components design feasibility

2. Proven solutions for both prismatic and cylindrical cells

3. Capability in doing DVP with client

4. Fast support in Prototype making

FAQ :


1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .


2. What the alloy and temper of your water cooling plate ?
A: The aluminum alloy is 3000,6000 and temper is O-H112.

3. What the process technology to do the cold plate or coolant channles ?
A: Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.

4. Do you support customized prototype for battery pack module ?
A: Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
