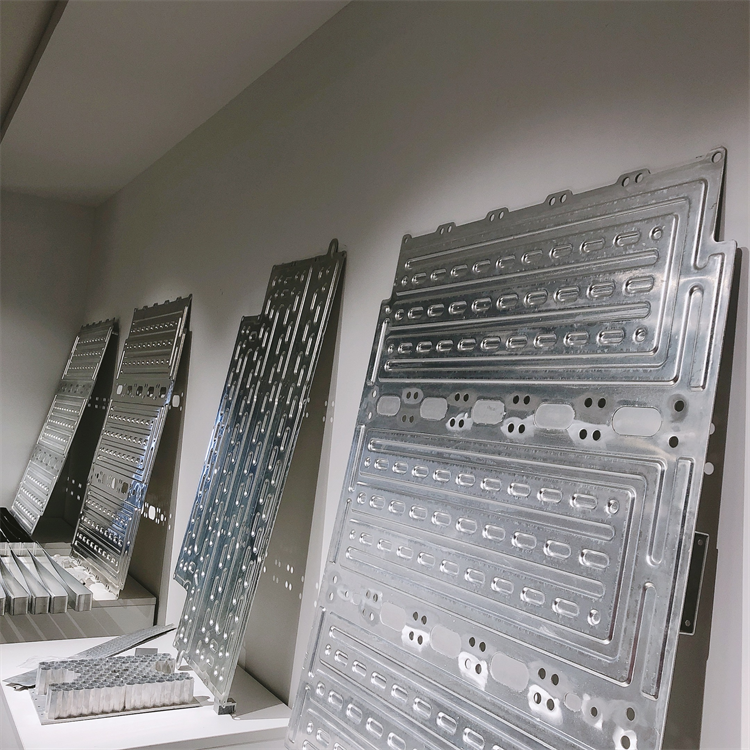

EV Pack Battery Cooling Aluminum Cold Plate 3003 Brazing Process
EV Pack Battery Cooling Aluminum Cold Plate 3003 Brazing Process
EV Pack Battery Cooling Aluminum Cold Plate 3003 Brazing Process
EV Pack Battery Cooling Aluminum Cold Plate 3003 Brazing Process
EV Pack Battery Cooling Aluminum Cold Plate 3003 Brazing Process
EV Pack Battery Cooling Aluminum Cold Plate 3003 Brazing Process
Specifications
Brand Name :
Trumony
Model Number :
TR-CY-T103
Certification :
ISO9001, IATF14969
Place of Origin :
China
MOQ :
Sample trial can be arranged
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100000 tons yearly
Delivery Time :
30days including tooling time
Packaging Details :
Ply-wood box specialized for export
Product name :
Brazing Process EV Pack Battery Cooling Aluminum Cold Plate
Keyword :
Battery Cooling Aluminum Cold Plate
Type :
Brazing water cooling plate
Grade :
3003
Coolant type :
Water
Temper :
O-H112
Usage :
EV Pack battery cooling
Structure :
Upper plate & lower plate+flow channel+connector
Pack :
Standard exporting package
Payment Term :
TT or LC
Description

3003 Brazing Process EV Pack Battery Cooling Aluminum Cold Plate

Brazing Process EV Pack Battery Cooling Aluminum Cold Plate

The performance and life of Li-ion battery packs for electric vehicle (EV), hybrid electrical vehicle (HEV), and plug-in hybrid electrical vehicle (PHEV) applications are influenced significantly by battery operation temperatures. Thermal management of a battery pack is one of the main factors to be considered in the pack design, especially for those with indirect air or indirect liquid cooling since the cooling medium is not in contact with the battery cells.

The battery cells in lithium-ion battery pack assembled with high-capacity and high-power pouch cells, are commonly cooled with thin aluminum cooling plates in contact with the cells. For HEV/EV lithium-ion battery systems assembled with high-capacity, high-power pouch cells, the cells are commonly cooled with thin aluminum cooling plates in contact with the cells. Thin aluminum cooling plates are cooled by cold plate with coolant flow paths.

The Aluminum cold plate can solve battery cooling problems, which you can contact TrumonyCompany, we can offer aluminum cold plate for battery cooling. Don’t hesitate to contact us!

Specifications

Type Battery cooling aluminum cold plate
Usage EV pack battery cooling
Dimension As your request
Technical Vacuum brazed process
Alloy 3003
Temper O-H112
Application Prismatic cells or soft package cells

Chemical Composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤ 0.25 ≤ 0.40 ≤ 0.05 ≤ 0.05 ≤ 0.05 - ≤ 0.05 ≤ 0.05 ≤ 0.03
2 1100 ≤ 0.95(Fe+Si) 0.05-0.20 ≤ 0.05 - - ≤ 0.10 - -
3 1197 ≤ 0.15 ≤ 0.20 0.40-0.55 0.10-0.20 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05 ≤ 0.05
4 3102 ≤ 0.40 ≤ 0.70 ≤ 0.10 0.05-0.40 - - ≤ 0.30 - ≤ 0.10
5 3R03 ≤ 0.15 ≤ 0.15 ≤ 0.01 0.90-1.10 ≤ 0.03 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05

Advantage:

Trumony Aluminium Limited, We are a professional battery pack heat exchanger manufacturer.

Here are a few things we are good at:
1 Tooling development we do it in house, so we can make initial testing prompt and accurate.
2 Making all kinds of heat exchangers we can do customized shape, to make the parts fit into different packs.
3 Assistance in parts design we have experienced engineer team, they can provide professional suggestions regarding feasibility of carrying out new designs.
4 One station service we can do heat exchangers, as well as its related insulation and silicon pad. So client can get
integrated solution.
