White Aluminum Single Entry Roll Bond Evaporator For Home Appliance
White Aluminum Single Entry Roll Bond Evaporator For Home Appliance
White Aluminum Single Entry Roll Bond Evaporator For Home Appliance
White Aluminum Single Entry Roll Bond Evaporator For Home Appliance
Specifications
Brand Name :
Trumony
Model Number :
TR-CY-T111
Certification :
ISO9001, IATF14969
Place of Origin :
China
MOQ :
Sample trial can be arranged
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100000 tons yearly
Delivery Time :
30days including tooling time
Packaging Details :
Ply-wood box specialized for export
Product name :
Home Appliance White Aluminum Roll Bond Evaporator Single Entry
Keyword :
Roll Bond Evaporator
Type :
Roll Bond Evaporator
Grade :
3003+1050
Temper :
O-H112
Technology :
Rolling
Pack :
Standard exporting package
Payment Term :
TT or LC
Description

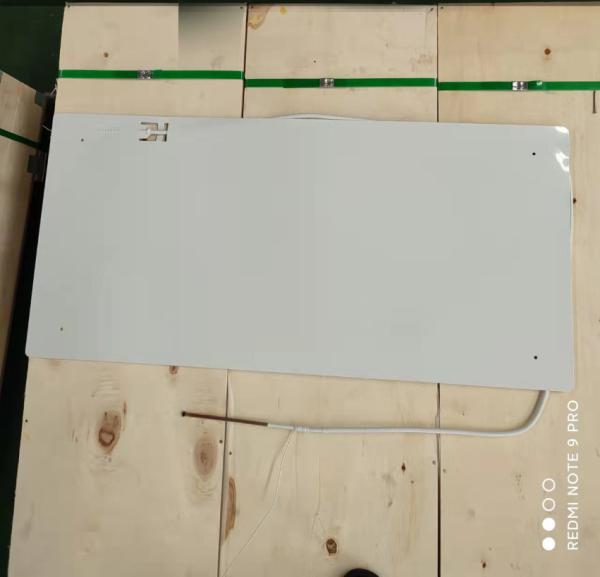

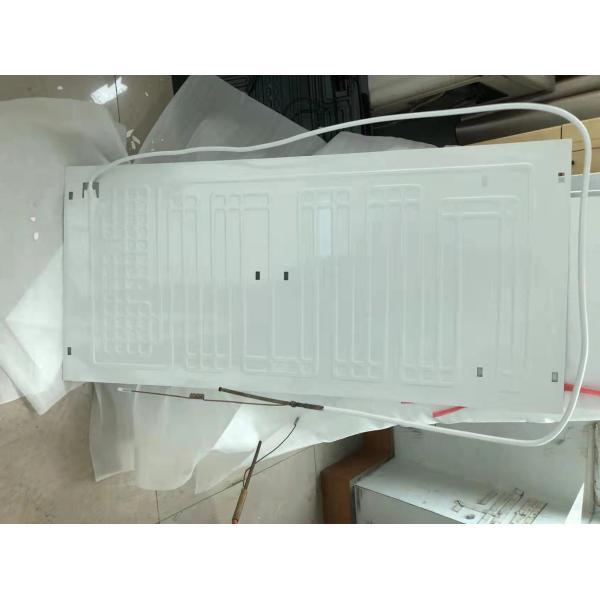

Home Appliance White Aluminum Single Entry Roll Bond Evaporator

Roll bond evaporator, aluminum evaporator, fridge evaporator, double size roll bond evaporator also can using on Solar panels

Products:381X229mm Aluminium Roll bond evaporator in refrigerator

Main use: Used in freezer, refrigerator, wine cabinet, showcase chiller etc.

Good quality, service and moderate price in the same field

Powerful production ability, quick delivery!

Alloy State:
3003 or according to customers' requests.

Core Alloy:3003

Element Si Fe Cu Mn Mg Cr Zn Bi Zr Ti Al
Max 0.6 0.7 0.20 1.5 - 0.05 0.10 0.05 - - Rem
Min - - 0.05 1.0 - - - - - - -

Raw material Al-plate: finished products thickness: 1.1 2.0mm,
raw material Al plate thickness: 1.4 2.5mm
Structure Double side roll bond evaporator,
Single side roll bond evaporator,part single side roll bond evaporator
Key process Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Technical Standards Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
Performance 1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134a & CFC cooling system.
3) Can satisfy the cooling capability requirements.
Capacity 3.5 million sets per year (10000 sets per day)

Specification of coating

Coating thickness thickness of coating40 90 μ m
Hardness of coating ≥2H
Impact of coating 50cm?kg/cm impact, no crack
Adhesion of coating ≥two grade
Flexibility of coating Around R=3D bend 180?, no crack or no fall off

Our advantages:
Founded since 2006, we have rich experience in this industry in China;
Good reputation in Aluminum materials field;
Have Ability of Design and Development.
We start our productions from aluminum ingot,so we can control the quality as well;
We have our own development department for new material research;
We have customers in over 50 countries and production in large scale, thus we have price advantage.
Good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Sample order is acceptable
High performance cost ratio;
Fast delivery time;
Good communication skills, and good service and understandings for customers;
Non-toxic, odorless, impermeable.

White Aluminum Single Entry Roll Bond Evaporator For Home Appliance
