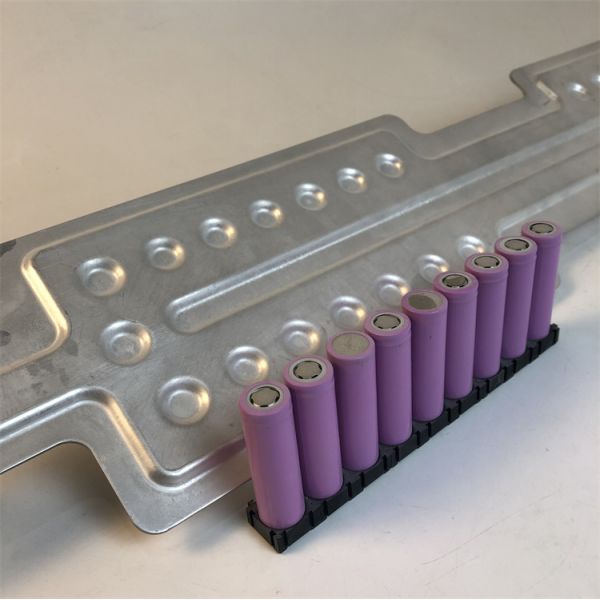

Micro Port EV Battery Aluminum Cold Plates Extruded Silver
Micro Port EV Battery Aluminum Cold Plates Extruded Silver
Micro Port EV Battery Aluminum Cold Plates Extruded Silver
Micro Port EV Battery Aluminum Cold Plates Extruded Silver
Specifications
Brand Name :
Trumony
Model Number :
TR-CY018
Certification :
ISO9001,ISO14969
Place of Origin :
China
MOQ :
Sample trial can be arranged
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100000 tons yearly
Delivery Time :
30days including tooling time
Packaging Details :
Ply-wood box specialized for export
Product name :
Aluminum Micro-Port Extruded EV Battery Cold Plates
Keyword :
EV Battery Cold Plates
Shape :
plate
Grade :
3000 Series
Color :
Silver
Surface :
Coating/Insulation/Film
Temper :
O,F,H111,H112
Application :
New Energy Vehicle Battery Cooling
Material :
alloy
Alloy :
3003,3102,1100,1050,6061
Pack :
Cartons
Description

Aluminum Micro-Port Extruded EV Battery Cold Plates

Micro-channel heat exchangers / liquid cold plates, use extruded rectangular flat tubes with multiple small channels running the length of the tube. They are available in a variety of designs and complexity to provide an ideal solution used in heat exchangers. They are exceptionally capable of handling high pressure refrigerants and are manufactured to meet the customer’s specific requirements with respect to alloy, geometry, wall and web thicknesses. With very low thermal resistance micro-extrusions are ideal for cooling high heat density components. Additional coating protection is also available when required for specific applications.

EV Battery cold plate Specifications

1. 3003 and other series aluminum alloy
2. anodizing, polishing, turning, power coating, mill finish etc
3. OEM, ODM, or design by ourselves
4. CNC ,extruding machine, cold drawn machine, heating oven, straightening machine, cutting machine

Cladding Materials

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 － 0.1 0.05 0.03 1
3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 0.5-1.50 0.05 0.05 2
3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 1.0-2.0 0.05 0.05 3
3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 － 1.0-2.0 0.05-0.2 - 4
3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 － 0.10 0.05 0.1 5
3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 － 0.01 6

Our advantage of aluminum battery cold pipe:

1. Since 2006, we have rich experience in this heat exchange area in China;
2. Good reputation in household foil areas;
3. We start our productions from aluminum ingot,so we can control the quality as well;
4. Design ability: have design team to give you technical support.
5. Price advantage.
6. Good experience and cooperation with big clients in the world;
7. With Certificate ISO9001-2008;
8. Sample order is acceptable
9. High performance cost ratio;
10. Fast delivery time and fast resolve problem attitude.

Micro Port EV Battery Aluminum Cold Plates Extruded Silver
