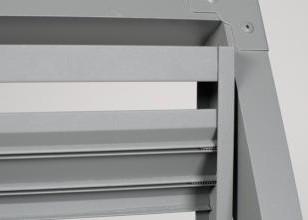

Window Anodized Aluminium Frame Profiles With 6005 / 6063 / 6061Alloy Material
Window Anodized Aluminium Frame Profiles With 6005 / 6063 / 6061Alloy Material
Window Anodized Aluminium Frame Profiles With 6005 / 6063 / 6061Alloy Material
Window Anodized Aluminium Frame Profiles With 6005 / 6063 / 6061Alloy Material
Specifications
Brand Name :
KaiLun
Model Number :
KL-F525
Certification :
ISO/TS16949,SGS,ROHS...
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
1 Tons
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
3000Tons / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
EP paper + Kraft Paper + Plywood pallet, as per export packing standard, custom packaging is available
Product Name :
Aluminum Structural Frame
Application: :
For Window Frame
Shape: :
H style
Material :
6000 series
Deep Process: :
Cutting, Milling, Drilling, Punching,CNC,etc
Keywords :
Aluminium Window Extrusion Parts
Description

6000 Series Aluminum Structural Profile for Window Frame with Silver Anodized Colour

Item Detail:

Name:

aluminum structural framing

Size:

44*13.5 MM

Weight:

0.275KG/M

Material:

 6005, 6063, 6061, etc.
Surface Treatment:

silver anodizing

Coating Thickness:

10 - 15 um

Length:

 1 - 6 M

Standard:

EN 755,CB/T 6892,SGS

Certification:

ISO/TS16949 : 2009

Deep Processing:

cutting,drilling,punching,etc

Product Features:

1. High hardness, hard aluminum series

2. Fair corrosion resistance. Heat treatable

3. Good machinability and better appearance

4. High quality with reasonable price

5. Better thermal and electrical conductivity

6. More than 10 years lifetime

Specifications:

Alloy Code

6005, 6063, 6061, etc

Temper

T3 - T8

Thickness

Aluprofile thickness: 1.0 - 10.0 mm;
Anodic oxidation thickness: 8 - 18 um;
Powder coating thickness: 40 - 80 um;

Length

Customized request available

Color

White, black, bronze, gray, green, etc.

Shape

Square, flat, round, hollow, oval, triangle, U-profiles,

L-profiles, T-profiles, H-profiles, customized available.

Surface Treatment

Mill finish, anodized, powder coating, electrophoresis,

wood grain,PVDF painting, polish, brushed

Machining

CNC, drilling, milling, cutting, punching, bending, etc.

Production Capacity

3000 tons monthly

Certificate&Standard

1) ISO/TS 16949:2009

2) SGSCertification;

3) ROHS Certification;

4) CE, BV, JIS, AS, NZS, QUALICOAT, QUOLANOD available

Guarantee

Surface color can be stable for 15~20 years indoor using

Chemical Composition:

Alloy

Chemical Composition

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others

Al(Min)

6005

0.6-0.9

0.35

0.1

0.1

0.4-0.6

0.1

0.1

0.1

0.15

Remainder

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Remainder

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Remainder

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

0.05

0.05

-

0.15

Remainder

Mechanical Properties

Alloy

Temper

Thickness

T.S.

Y.S

ELOG.

Hardness

σb (MPa)

σ0.2 (MPa)

δ%

HV

HW

6005

T5

≥ 0.8

≥260

≥240

≥10

≥85

≥15

6063

T4

≥ 0.8

≥130

≥65

≥12

-

-

T5

≥ 0.8

≥160

≥110

≥8

≥58

≥8

T6

≥ 0.8

≥205

≥180

≥8

≥65

≥10

6061

T4

≥ 0.8

≥180

≥110

≥16

≥65

≥10

T6

≥ 0.8

≥265

≥245

≥8

≥85

≥15.5

6005

T5

≥ 0.8

≥260

≥240

≥10

≥85

≥15

Product Drawing:

Competitive Advantage:

1. Top Aluminium profile manufacturer for more than 30 years in China.
2. Diverse Products used in the fields of construction, industry and deep-processing.
3. Quality Control is put in the core position of our production.
4. Customized Production shows our capability in product design and process control.
5. Perfect Customer Services include careful packaging, quick delivery and good
after-sale service.

6. We do everything in house and ISO/TS 16949 certified.
