Anodized Aluminum Sun External Aluminium Louvres Blade With Oval Aerofoil Shaped
Anodized Aluminum Sun External Aluminium Louvres Blade With Oval Aerofoil Shaped
Anodized Aluminum Sun External Aluminium Louvres Blade With Oval Aerofoil Shaped
Anodized Aluminum Sun External Aluminium Louvres Blade With Oval Aerofoil Shaped
Specifications
Brand Name :
KaiLun
Model Number :
KL-L513
Certification :
ISO/TS16949,SGS,ROHS...
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
3 Tons
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
3000Tons / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
EP paper + Kraft Paper + Plywood pallet, as per export packing standard, custom packaging is available
Product Name :
Aluminium Sun Blade
Application: :
For Building Material
Shape: :
Oval
Material :
6000 series
Temper: :
T5
Hardness: :
≥8 HW
Description

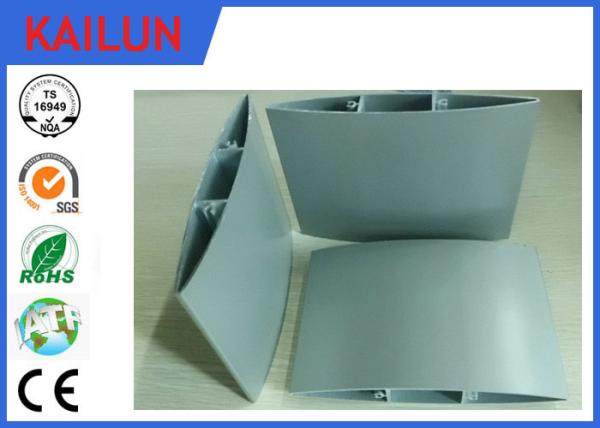

Aerofoil Anodized Aluminum Sun Louver Blade / Oval Shaped Aluminum Extrusion Section

Product Info:

1. Name: aluminium sun blade

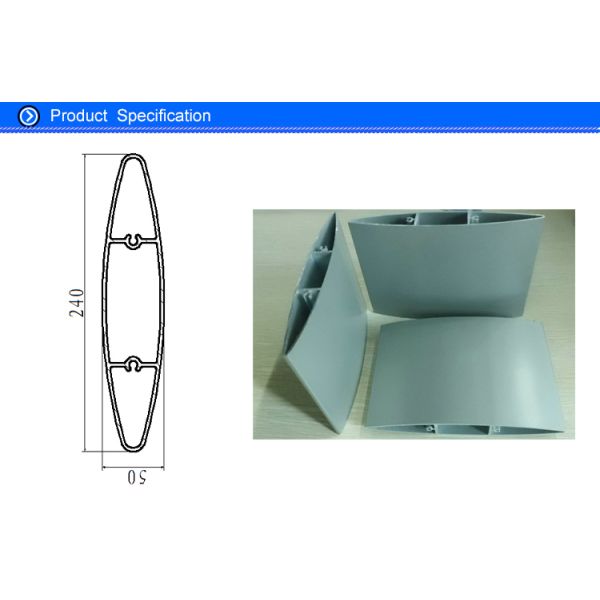

2. Size:240*50 MM

3. Weight:4.9 kg/m

4. Material: 6005, 6063, 6061, etc.

5. Surface Treatment: silver anodized
6. Coating Thickness: ≥15 um
7. Length: as customer's requirement

Applications:

1. for Government building

2. for Air port, Hotel

3. for Exhibition hall

4. for Commercial building

5. for Large-scale glass curtain wall

6. for Glass roof as awning

Advantages of Aluminum Sun Blade:

1. Protect from the strong sun light

2. Heat insulation

3. Easy installation: horizontal / vertical

4. Low maintenance cost

5. Long life

6. Up grade the building

7. Energy-saving

8. Light weight but strong enough

Aluminium Alloy Chemical Composition

Alloy

6063 (%)

6063A (%)

6061 (%)

6082 (%)

Si

0.2~0.60

0.3~0.60

0.4~0.80

0.7~1.30

Fe

0.35

0.15~0.35

0.70

0.50

Cu

0.10

0.10

0.15~0.40

0.10

Mn

0.10

0.15

0.15

0.40~1.0

Mg

0.45~0.90

0.60~0.90

0.80~1.20

0.6~1.20

Cr

0.10

0.05

0.04~0.35

0.25

Zn

0.10

0.15

0.25

0.20

Ti

0.10

0.10

0.15

0.10

Other (each)

0.05

0.05

0.05

0.50

Other (total)

0.15

0.15

0.15

0.15

Al

Remainder

Remainder

Remainder

Remainder

Anodized Aluminum Sun External Aluminium Louvres Blade With Oval Aerofoil Shaped

Factory Introduction:

Jiangsu Karen Aluminum Co.,Ltd is a large-scale professional manufacturing company.We focus on solar panel frame,aluminium beams,aluminium louvers,aluminium frame for HVAC systems,industrial aluminum profiles since 1985.

We are Gold Supplier for TOP 500 Enterprise.Some as below.

- TRINA SOLAR / RENESOLA / SOLARTRON PUBLIC / SHARP (Solar Industry)

- OTIS / Thyssenkrupp / Schindler Group / Westinghouse(Elevator&Escalator Parts)

- Carrier / Climaveneta / Mammoth Inc.(HVAC Profile)

More Products:

Anodized Aluminum Sun External Aluminium Louvres Blade With Oval Aerofoil Shaped

FAQ to save your precious time:

Question 1 :What is your normal terms of payment?

We always trade with you by T/T.But we also accept the L/C as you require.

Question 2 :Can you supply OEM services?

We offer OEM services for 20 years.

Question 3 :How many days for opening the mould?

Normally about 10 days.According to the difficulty of your drawing.
