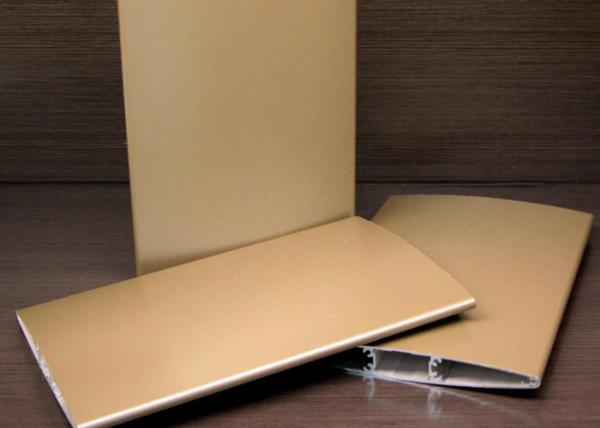

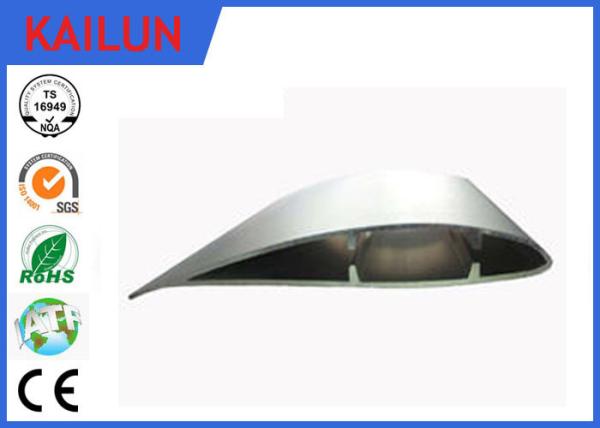

Aerofoil Shaped External Aluminium Louvres with 15 - 20 um Thick Clear Anodized Film
Aerofoil Shaped External Aluminium Louvres with 15 - 20 um Thick Clear Anodized Film
Aerofoil Shaped External Aluminium Louvres with 15 - 20 um Thick Clear Anodized Film
Aerofoil Shaped External Aluminium Louvres with 15 - 20 um Thick Clear Anodized Film
Specifications
Brand Name :
KaiLun
Model Number :
KL-L515
Certification :
ISO/TS16949,SGS,ROHS...
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
1 Tons
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
3000Tons / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
EP paper + Kraft Paper + Plywood pallet, as per export packing standard, custom packaging is available
Product Name :
Aluminium Louvre Blades
Application: :
For Industrial Use
Shape: :
Oval
Material :
6000 series
Temper: :
T5
Hardness: :
≥8 HW
Description

Aerofoil Silver Aluminium Louvre Blades with Clear Anodized Film 15-20um for Industrial Use

1.Alloy :6063,6061,6005,6060
2.Material:Aluminum
3.Temper: T4, T5, T6
4.Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
5.Deep process: Milling, Drilling, Bending,Cutting.
6.Application: Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
7.Color:clear, satin, bronze, black, golden, silver, other multicolor

Advantages of Aluminum Sun Blade:

1. Protect from the strong sun light

2. Heat insulation

3. Easy installation: horizontal / vertical

4. Low maintenance cost

5. Long life

6. Up grade the building

7. Energy-saving

8. Light weight but strong enough

Aluminium Alloy Chemical Composition

Alloy

6063 (%)

6063A (%)

6061 (%)

6082 (%)

Si

0.2~0.60

0.3~0.60

0.4~0.80

0.7~1.30

Fe

0.35

0.15~0.35

0.70

0.50

Cu

0.10

0.10

0.15~0.40

0.10

Mn

0.10

0.15

0.15

0.40~1.0

Mg

0.45~0.90

0.60~0.90

0.80~1.20

0.6~1.20

Cr

0.10

0.05

0.04~0.35

0.25

Zn

0.10

0.15

0.25

0.20

Ti

0.10

0.10

0.15

0.10

Other (each)

0.05

0.05

0.05

0.50

Other (total)

0.15

0.15

0.15

0.15

Al

Remainder

Remainder

Remainder

Remainder

Chemical composition:

Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest

Mechanical property:

Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%

Factory Introduction:

Jiangsu Karen Aluminum Co.,Ltd is a large-scale professional manufacturing company.We focus on solar panel frame,aluminium beams,aluminium louvers,aluminium frame for HVAC systems,industrial aluminum profiles since 1985.

We are Gold Supplier for TOP 500 Enterprise.Some as below.

- TRINA SOLAR / RENESOLA / SOLARTRON PUBLIC / SHARP (Solar Industry)

- OTIS / Thyssenkrupp / Schindler Group / Westinghouse(Elevator&Escalator Parts)

- Carrier / Climaveneta / Mammoth Inc.(HVAC Profile)

More Products:

Aerofoil Shaped External Aluminium Louvres with 15 - 20 um Thick Clear Anodized Film

FAQ to save your precious time:

Question 1 :What is your normal terms of payment?

We always trade with you by T/T.But we also accept the L/C as you require.

Question 2 :Can you supply OEM services?

We offer OEM services for 20 years.

Question 3 :How many days for opening the mould?

Normally about 10 days.According to the difficulty of your drawing.
