KONE Brand Aluminum Elevator Door Sill with 12 MM Single - Groove ISO / TS16949:2009
KONE Brand Aluminum Elevator Door Sill with 12 MM Single - Groove ISO / TS16949:2009
KONE Brand Aluminum Elevator Door Sill with 12 MM Single - Groove ISO / TS16949:2009
KONE Brand Aluminum Elevator Door Sill with 12 MM Single - Groove ISO / TS16949:2009
KONE Brand Aluminum Elevator Door Sill with 12 MM Single - Groove ISO / TS16949:2009
KONE Brand Aluminum Elevator Door Sill with 12 MM Single - Groove ISO / TS16949:2009
Specifications
Brand Name :
KaiLun
Model Number :
KL-K30339
Certification :
ISO/TS16949:2009
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
1000 PC
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
500000 PC / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
EP paper + Kraft Paper + Plywood pallet, as per export packing standard, custom packaging is available
Product Name :
Aluminum Single - Groove Sill
Application: :
For Elevator Door Part
Brand :
KONE
Material :
Aluminium
Width :
55 MM
Description

KONE Brand Aluminum Elevator Cabin Door Sill with 12 MM Single - Groove for Automatic Door System

Product Detail:

1. Name: aluminum sill profile

2. Size:55 X 25 mm used for floor door

3. Weight:1.68kg/m

4. Material: 6005, 6063, 6061, etc.

5. Surface Treatment: silver anodizing
6. Coating Thickness: 10 - 15 um

Product Features:

1. High hardness, hard aluminum series

2. Fair corrosion resistance. Heat treatable

3. Good machinability and better appearance

4. High quality with reasonable price

5. Better thermal and electrical conductivity

6. More than 10 years lifetime

Specifications:

Alloy Code

6005, 6063, 6061, etc

Temper

T3 - T8

Thickness

Aluprofile thickness: 1.0 - 10.0 mm;
Anodic oxidation thickness: 8 - 18 um;
Powder coating thickness: 40 - 80 um;

Length

Customized request available

Color

White, black, bronze, gray, green, etc.

Shape

Square, flat, round, hollow, oval, triangle, U-profiles,

L-profiles, T-profiles, H-profiles, customized available.

Surface Treatment

Mill finish, anodized, powder coating, electrophoresis,

wood grain,PVDF painting, polish, brushed

Machining

CNC, drilling, milling, cutting, punching, bending, etc.

Production Capacity

3000 tons monthly

Certificate&Standard

1) ISO/TS 16949:2009

2) SGSCertification;

3) ROHS Certification;

4) CE, BV, JIS, AS, NZS, QUALICOAT, QUOLANOD available

Guarantee

Surface color can be stable for 15~20 years indoor using

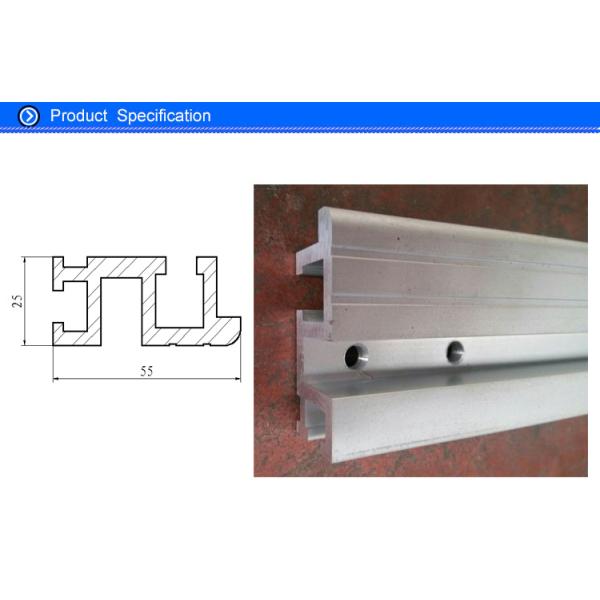

Product Drawing:

KONE Brand Aluminum Elevator Door Sill with 12 MM Single - Groove ISO / TS16949:2009

Chemical Composition of Aircraft Aluminum:

Alloy

Chemical Composition

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others

Al(Min)

6005

0.6-0.9

0.35

0.1

0.1

0.4-0.6

0.1

0.1

0.1

0.15

Remainder

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Remainder

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Remainder

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

0.05

0.05

-

0.15

Remainder

Mechanical Properties:

Alloy

Temper

Thickness

T.S.

Y.S

ELOG.

Hardness

σb (MPa)

σ0.2 (MPa)

δ%

HV

HW

6005

T5

≥ 0.8

≥260

≥240

≥10

≥85

≥15

6063

T4

≥ 0.8

≥130

≥65

≥12

-

-

T5

≥ 0.8

≥160

≥110

≥8

≥58

≥8

T6

≥ 0.8

≥205

≥180

≥8

≥65

≥10

6061

T4

≥ 0.8

≥180

≥110

≥16

≥65

≥10

T6

≥ 0.8

≥265

≥245

≥8

≥85

≥15.5

6005

T5

≥ 0.8

≥260

≥240

≥10

≥85

≥15

Flow Chart:

KONE Brand Aluminum Elevator Door Sill with 12 MM Single - Groove ISO / TS16949:2009

KONE Brand Aluminum Elevator Door Sill with 12 MM Single - Groove ISO / TS16949:2009

Our Services:

We are professional manufacturer and good supplier to provide all kinds of elevator parts with different brands. Our products have been exported to many countries.

KONE Brand Aluminum Elevator Door Sill with 12 MM Single - Groove ISO / TS16949:2009
