4 MM Glass Corner Key Type Size 35 X 35 MM Anodized Aluminum Solar Panel Frame For 250 Watt Solar Module
4 MM Glass Corner Key Type Size 35 X 35 MM Anodized Aluminum Solar Panel Frame For 250 Watt Solar Module
4 MM Glass Corner Key Type Size 35 X 35 MM Anodized Aluminum Solar Panel Frame For 250 Watt Solar Module
4 MM Glass Corner Key Type Size 35 X 35 MM Anodized Aluminum Solar Panel Frame For 250 Watt Solar Module
Specifications
Brand Name :
KaiLun
Model Number :
KL-SF2070
Certification :
ISO/TS16949:2009
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
20feet Container
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
600,000 sets / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
Protective film+ Corrugated board+ Wrapping film+Plywood pallet, as per export packing standard, custom packaging is available
Product Name: :
Solar Module Frame
Shape: :
Hollow
Temper: :
T5
Application :
For 250 Watt Solar Module
Color :
Silver
Description

Thailand Market 250Watt Solar Module Frame Size 35 X 35 MM for 4 MM Glass Corner Key Type


Frame Info:

Brand Name:KAILUN
Certification:TUV ,CE ,JET
Place of Origin:China
MOQ:2250 sets
Payment Terms:T/T ,L/C
Supply Ability:3000tons each month
Delivery Time:25days
Packaging Details:Packed with EP ,Carton ,Pallet or wooden case
Material:Aluminum Alloy
Temper:T5
Color:Silver
Application:Ground
Size:30*35 mm
Surface:Anodized



Usage:

Solar Panel Frame

1. for solar mounting system

2. for solar thermal energy

3. for 100 watt solar panel

4. for 200 watt solar panel

5. for 250 watt solar panel

6. for 300 watt solar panel

7. for black picture frame

8. for large picture frames












Chemical Compositions:

Alloy

Chemical Compositions

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others

Al(Min)

6005

0.6-0.9

0.35

0.1

0.1

0.4-0.6

0.1

0.1

0.1

0.15

rest

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

rest









Mechanical Property:

Alloy

Temper

Thickness

T.S.

Y.S

ELOG.

Hardness

σb (MPa)

σ0.2 (MPa)

δ%

HV

HW

6005

T5

≥ 0.8

≥260

≥240

≥10

≥85

≥15


6063

T4

≥ 0.8

≥130

≥65

≥12

-

-

T5

≥ 0.8

≥160

≥110

≥8

≥58

≥8

T6

≥ 0.8

≥205

≥180

≥8

≥65

≥10

6061

T4

≥ 0.8

≥180

≥110

≥16

≥65

≥10

T6

≥ 0.8

≥265

≥245

≥8

≥85

≥15.5



Description:

Jiangsu Karen Aluminum Co.,Ltd is a large-scale professional manufacturing company,specialized in aluminium extrusions & fabrication for Top 500 Enterprises. We focus on aluminum extrusion profiles,solar panel frame,elevator door sill,t slot aluminum extrusion,aluminium i beam,aluminium louvers since 1985.

We are Gold Supplier for TOP 500 Enterprise.Some as below.
- TRINA SOLAR / RENESOLA / SOLARTRON PUBLIC / SHARP (Solar Industry)

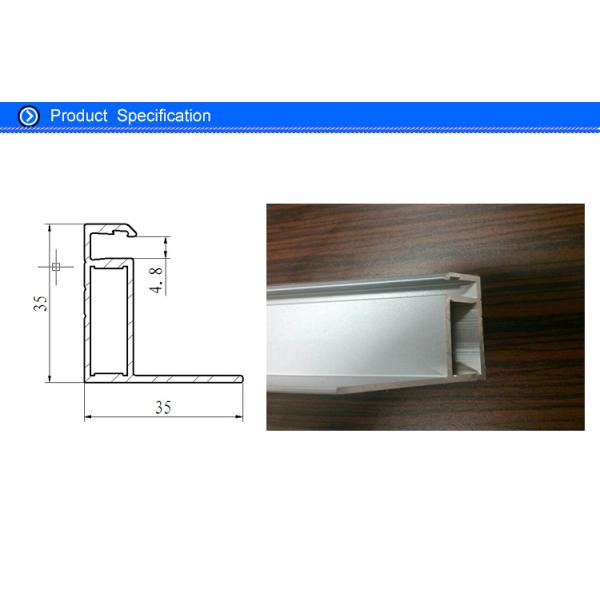

Frame Drawing:

4 MM Glass Corner Key Type Size 35 X 35 MM Anodized Aluminum Solar Panel Frame For 250 Watt Solar Module
Competitive Advantage:

In addition to high quality ,Karen offer customer complete service .
Our aluminum solar frame with a 15 year warranty .Maintenance service is also available .
