Corner Key Connection Black Anodized 6063 Aluminium Framing for 250 Watt Aluminum Solar Panel
Corner Key Connection Black Anodized 6063 Aluminium Framing for 250 Watt Aluminum Solar Panel
Specifications
Brand Name :
KaiLun
Model Number :
KL-SF21570
Certification :
ISO/TS16949:2009
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
20feet Container
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
600,000 sets / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
Protective film+ Corrugated board+ Wrapping film+Plywood pallet, as per export packing standard, custom packaging is available
Product Name: :
Solar Panel Frame
Shape :
Hollow
Temper: :
T5
Deep Process: :
Cutting, Milling, Drilling, Punching,CNC,etc
Application :
For Solar Energy
Material :
6000 series
Standard :
En 755
Description

250 Watt Aluminum Solar Panel Frame with Corner Key Connection , Black Anodized 6063 Aluminium Framing

Quick Detail:

1. Name: solar panel frame

2. Size: 1650*992*35*35mm

3. Weight: 2.69kg/set

4. Material: 6005, 6063, 6061, etc.

5. Surface Treatment: silver anodizing
6. Coating Thickness: 10 - 15 um
7. Length: as customer's requirement
8. Standard: EN 755,CB/T 6892,SGS

9. Certification: ISO/TS16949 : 2009

10. Deep Process: Available

Applications:

Solar Panel Frame

1. for solar mounting system

2. for solar thermal energy

3. for 100 watt solar panel

4. for 200 watt solar panel

5. for 250 watt solar panel

6. for 300 watt solar panel

7. for black picture frame

8. for large picture frames

Frame Sizes

1956 * 992 * 50 mm

1956 * 992 * 40 mm

1650 * 992 * 40 mm

1625 * 1015 * 40 mm

1640 * 992 * 40 mm

1650 * 992 * 35 mm

1638 * 982 * 35 mm

1580 * 808 * 35 mm

1500 * 670 * 30 mm

992 * 809 * 40 mm

537 *350 * 40 mm

Description:

Jiangsu Karen Aluminum Co.,Ltd is a large-scale professional manufacturing company,specialized in aluminium extrusions & fabrication for Top 500 Enterprises. We focus on aluminum shapes, aluminum door threshold, elevator sill, solar panel frame, aluminium beams, aluminium louvers, aluminium skirting, aluminium frame for HVAC systems, industrial profiles since 1985.

We are Gold Supplier for TOP 500 Enterprise.Some as below.

- TRINA SOLAR / RENESOLA / SOLARTRON PUBLIC / SHARP (Solar Industry)

- OTIS / Thyssenkrupp / Schindler Group / Westinghouse(Elevator&Escalator Parts)

- Carrier / Climaveneta / Mammoth Inc.(HVAC Profile)

Factory Tour:

Waiting for your visit to check every detail.

Corner Key Connection Black Anodized 6063 Aluminium Framing for 250 Watt Aluminum Solar Panel

Corner Key Connection Black Anodized 6063 Aluminium Framing for 250 Watt Aluminum Solar Panel

Some of Our Business Partners:

Corner Key Connection Black Anodized 6063 Aluminium Framing for 250 Watt Aluminum Solar Panel

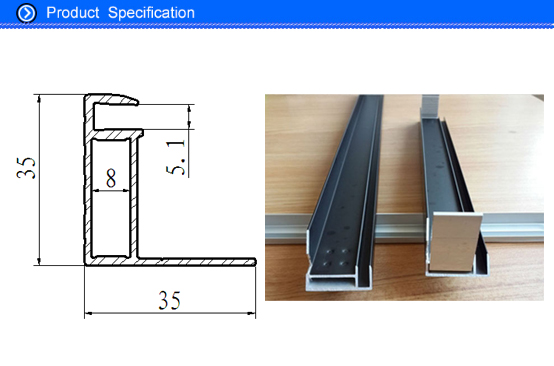

Product Drawing:

Corner Key Connection Black Anodized 6063 Aluminium Framing for 250 Watt Aluminum Solar Panel

Chemical Composition:

Alloy

Chemical Composition

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others

Al(Min)

6005

0.6-0.9

0.35

0.1

0.1

0.4-0.6

0.1

0.1

0.1

0.15

rest

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

rest

Mechanical Properties

Alloy

Temper

Thickness

T.S.

Y.S

ELOG.

Hardness

σb (MPa)

σ0.2 (MPa)

δ%

HV

HW

6005

T5

≥ 0.8

≥260

≥240

≥10

≥85

≥15

6063

T4

≥ 0.8

≥130

≥65

≥12

-

-

T5

≥ 0.8

≥160

≥110

≥8

≥58

≥8

T6

≥ 0.8

≥205

≥180

≥8

≥65

≥10

6061

T4

≥ 0.8

≥180

≥110

≥16

≥65

≥10

T6

≥ 0.8

≥265

≥245

≥8

≥85

≥15.5

Production Machinery:

Machine Name

Brand & Model No.

QTY

Years Used

Condition

Extruding Machine

Taiwan Yichang

14

25

Acceptable

Extruding Machine

Taiyuan Zhonggong

1

20

Acceptable

Anodizing Line

Taiwan Worldclean

2

20

Acceptable

Electrophoresis Line

Taiwan Worldclean

2

15

Acceptable

Powder Coating Line

Taiwan Worldclean

1

15

Acceptable

PVDF Coating Line

Taiwan Worldclean

1

15

Acceptable

Wood Grain Line

Taiwan Worldclean

1

5

Acceptable

Deep Processing Line

Solar Panel Frame

18

15

Acceptable

Packaging Line

No Information

2

15

Acceptable

Deep Processing Machinery:

Machine Name

Brand & Model No.

QTY

Years Used

Condition

CNC Machining Center

No Information

1

5

Acceptable

Bench Drilling Machine

Zhejiang Xiling

8

10

Acceptable

Punching Machine

Wuxi Lanling

13

10

Acceptable

Special Punching Machine

Wuxi Lanling

4

10

Acceptable

Ends Milling Machine

Wuxi Lanling

3

10

Acceptable

Digital Display Double Head Cutting Machine

Wegoma

13

10

Acceptable

Open Back Inclinable Press

Yangli Group

34

10

Acceptable

Plate Bender

Yangli Group

15

8

Acceptable

Competitive Advantage:

1. Rich Industry Experiences:

We have over 30 years experience in aluminum extrusion production, and over 10 years in solar panel frame,150 kinds of frame have been developed for a variety of use.

2. Good Capacity:

Equipped with 15 automatic extrusion lines,our production capacity above 3000T per month

3. Quality Management and Control System:

Having passed the ISO/TS 1694 and SGS certifications, our quality management and control team ensures that every product is manufactured to the highest specifications.

4. One-stop Service:

From the inspection of the raw material, extrusion, aging oven treatment, sandblasting, anodizing, film coating, further processing center, packaging; Karen Aluminum can take care of all of your aluminum extrusion product needs.

5. OEM Service:

6. Excellent ODM Service especially the professional design service:
