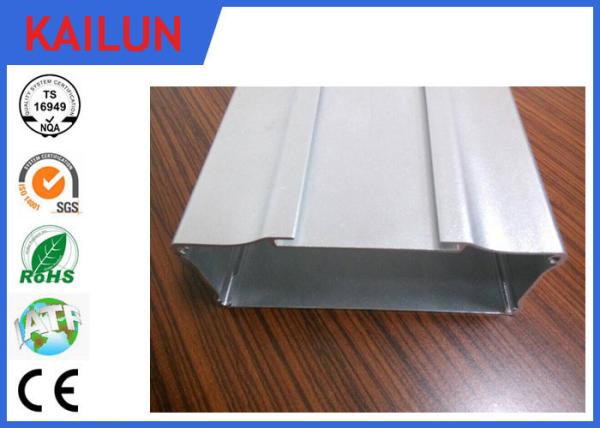

Aluminum Battery Boxes For 36v 15ah Powerful E - Bike , Extruded Custom Aluminum Boxes
Aluminum Battery Boxes For 36v 15ah Powerful E - Bike , Extruded Custom Aluminum Boxes
Aluminum Battery Boxes For 36v 15ah Powerful E - Bike , Extruded Custom Aluminum Boxes
Aluminum Battery Boxes For 36v 15ah Powerful E - Bike , Extruded Custom Aluminum Boxes
Specifications
Brand Name :
KaiLun
Model Number :
KL-K40423
Certification :
ISO/TS16949:2009
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
1 Tons
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
3000Tons / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
EP paper + Kraft Paper + Plywood pallet, as per export packing standard, custom packaging is available
Product Name :
Aluminium Frame Profile
Application: :
E - Bike Battery Box
Shape: :
Square
Material :
Aluminum Alloy 6063 -T5
Market: :
Global
Description

Extruded Aluminium Frame Profile for 36v 15Ah Powerful E - Bike Battery Box Section

Item Parameter:

Name:

Aluminum FrameProfile

Size:

155.5*65.9mm

Weight:

2.43kg/set

Material:

 6005, 6063, 6061, etc.
Surface Treatment:

silver anodizing

Coating Thickness:

10 - 15 um

Length:

as customer's requirement

Standard:

EN 755,GB/T 6892,SGS

Usage of lithium ion electric bicycle battery:

widely used in electric equipments:

1. Electric vehicles, such as e-bike, car, motorcycle, cleaning car, sight seeing trolley, bus, golf car etc.

2. Solar energy storage equipment or wind energy storage equipment.

3. Electric toys: remote control car, plane, bus etc.

4. Light: emergency light, warning light, cap-lamp and UPS

5. It also can be used in medical equipment and portable instrument.

Suitable Battery Specification:

Type LiNiCoMn2O4 Battery Pack
1. Basic Characteristics
Weight ≤ 3.2 kg
Model UPP-140917026
Dimension(D*H) 430*50*135mm
Working temperature Charge Temperature 0~45°C
Discharge Temperature -20~65°C
Retention of charge (store in one month) ≥95%
2. Technical Data
Rated Voltage 36V
Rated Capacity C1 ≥ 15Ah
Battery Resistance ≤100mΩ
Charge Way of Charge CC/CV(Constant Current;Constant Voltage)
Standard Charge Current 2A
Max Charge Current 5A
Max Charge Voltage 42V
Cell OverCharge Protection Voltage 4.2V/Cell
Discharge Standard Discharge Current 10A can be customized
Max Discharge Current 30A can be customized
Discharge Cut-off Voltage 30V
Cell Overdischarge Protection Voltage 3.0V/cell
Ratio Discharge 1C >96%C1
2C >93%C1
3C >90%C1
Cycle Life ≥ 600 Cycles
3. Safety Test
Short Circuit Safety Test No fire, No explosion
Overcharge Safety Test
Crush Safety Test
Needling Safety Test
Extrusion Safety Test
130°C High Temperature Safety Test

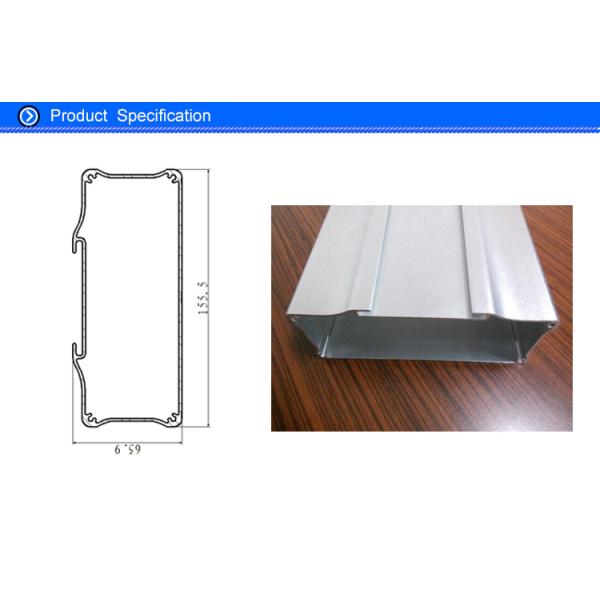

Product Drawing:

Aluminum Battery Boxes For 36v 15ah Powerful E - Bike , Extruded Custom Aluminum Boxes

Flow Chart:

Product design→Die Making→IQC→Extruding→Cutting→Heat Treatment→Harder Test

→Surface Treatment→Coating Test→Finish Processing→Packing→Shipping→After Sale Service

Packing Info:

1. Bundles Packing:

-- Inside: packed with plastic protective film to protect each piece

-- Outside: Wrap to be bundles by waterproof craft paper or EPE film.

2. Carton Packing:

--Inside: Each pcs pack in one plastic bag;

--Outside: Numbers of quantity put in one carton.

3. Wood Pallet Packing:

-- Inside: Bundles or cartons packing;

-- Outside: Numbers of bundles or cartons laden on one wood pallet.

4. Customized Packing Request Available.
