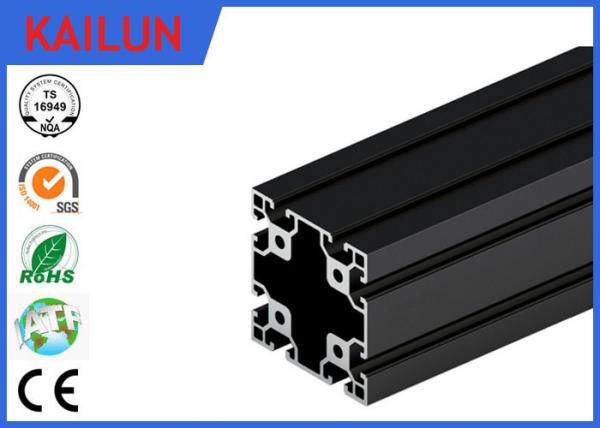

6063 T5 Black Anodized Aluminium T Section Extrusions 80 X 80 MM TS16949 / SGS
6063 T5 Black Anodized Aluminium T Section Extrusions 80 X 80 MM TS16949 / SGS
6063 T5 Black Anodized Aluminium T Section Extrusions 80 X 80 MM TS16949 / SGS
6063 T5 Black Anodized Aluminium T Section Extrusions 80 X 80 MM TS16949 / SGS
Specifications
Brand Name :
KaiLun
Model Number :
KL-K4090
Certification :
ISO/TS16949,SGS,ROHS...
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
1 Tons
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
3000Tons / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
EP paper + Kraft Paper + Plywood pallet, as per export packing standard, custom packaging is available
Product Name :
Aluminum Frame Profile
Usage: :
for T-Slotted Framing System
Shape: :
Square Hollow
Grade :
Alumnium Alloy
Key words :
Aluminum T-Slot Track
Colour :
Black
Description

80 X 80 MM Extrusions for Aluminum T - Slotted Framing System 6063 T5 Black Anodized

Detailed Product Description:

Product Name:

Aluminum Framr Profile

Alloy:

6005, 6063, 6061, etc.



Application :



for T-Slotted Framing System


Surface Treatment:

Mill Finished, Anodizing, Electrophoresis,
Powder Coating, Polishing, Wooden grain,Sand blasting
Size: 80*80mm Weight: 4.57kg/m

Deep Process :

Milling, Drilling ,Bending, Cutting

Temper:

T5

Primary Technical Parameter:

1) Chemical composition

Alloy

Si

Mg

Fe

Cu

Mn

Zn

Cr

Ti

6063

0.2~0.6

0.45~0.90

<0.35

<0.10

<0.10

<0.10

<0.10

<0.10

6060

0.3~0.6

0.35~0.60

0.1~0.3

~

<0.10

<0.15

<0.05

~

6463

0.2~0.6

0.45~0.90

<0.15

<0.20

<0.05

<0.05

~

~

6005

0.6~0.9

0.40~0.60

<0.35

<0.10

<0.10

<0.10

<0.10

<0.10

6061

0.4~0.8

0.80~1.2

<0.70

0.15~0.4

<0.15

<0.25

0.04~0.35

<0.15

6082

0.7~1.3

0.60~1.2

<0.50

<0.1

0.4~1.0

<0.20

<0.25

<0.10

6351

0.7~1.3

0.40~0.8

<0.50

<0.1

0.4~0.8

<0.20

~

<0.10


2) Mechanical property

Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T5

≥ 265Mpa

≥ 245Mpa

≥ 8%

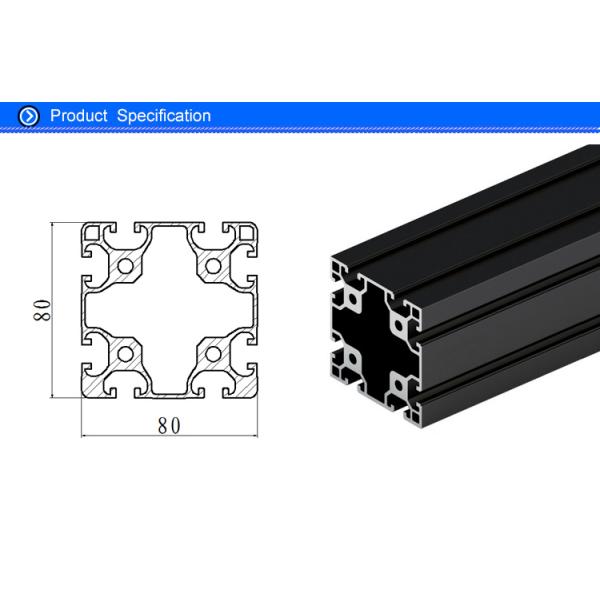

Crossing Sectional Profile:

6063 T5 Black Anodized Aluminium T Section Extrusions 80 X 80 MM TS16949 / SGS

Advantages of our extrusion process :

The extrusion process provides virtually unlimited opportunities for aluminium product shapes. Costs are cut by designing fewer components, which reduce fabrication and simplify assembly.
These features and benefits are unmatched by other materials and processes:
(1) Complex integral shapes
(2) Cost effective
(3) Low tooling costs
(4) Design flexibility
(5) Versatility in joining
(6) Machinable
(7) Rapid prototyping
(8) Short lead times
