Mill Finished 90 Degree Anodised Aluminium Angle for Solar Mounting System and Solar Panel
Mill Finished 90 Degree Anodised Aluminium Angle for Solar Mounting System and Solar Panel
Mill Finished 90 Degree Anodised Aluminium Angle for Solar Mounting System and Solar Panel
Mill Finished 90 Degree Anodised Aluminium Angle for Solar Mounting System and Solar Panel
Specifications
Brand Name :
KaiLun
Model Number :
KL-SF2132
Certification :
ISO/TS16949:2009
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
1 Tons
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
3000Tons / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
EP paper + Kraft Paper + Plywood pallet, as per export packing standard, custom packaging is available
Product Name :
Aluminium Angle Corner Key
Application: :
For Solar Mounting System
Shape: :
L style
OEM/ODM: :
Available
Degree :
90
Description

Mill Finished 90 Degree Aluminium Angle Corner Key for Solar Mounting System and Solar Panel

Product Description:

1. Name: aluminium angle corner key

2. Size: 47.7*47.7MM

3. Weight:0.81kg/m

5. Material: 6005, 6063, 6061, etc.
6. Coating Thickness: 10 - 15 um
7. Length: as customer's requirement
8. Standard: EN 755,CB/T 6892,SGS

9. Certification: ISO/TS16949 : 2009

10. Deep Process: cutting,drilling,punching,etc

Two types:

(1) 90°-Angle

(2) 45° -Angle

Suface Treatment:

(1). Anodizing:(Clear,silver,golden,bronze,other muiticolar.)

(2). Electrophoresis

(3). Powder coating,mill finish,PVDF,sandblasting,etc

Package:


Foam paper and carton box package, craft paper package, plastic film and the plastic wrap.

All the specification and packing details can according to customer's request

Specifications:

Business type:

Manufacturer

Standard:

GB 5237-2008 / En 755.2

Product series:

Aluminium profile for angle parts

Surface treatment:

Anodizing, Powder coating, electrophoresis, wooden finish

Packing:

Kraft paper, EPE foam, Shrink film, Composite paper

Payment term:

T/T, L/C at sight

Specification:

A. Alloy code 6063, 6060, 6061, 6005, 6082

B. State: T4 / T5 / T6

C. Length: 1m-7m

D. Normal Anodizing thickness: 8-15 micro

E. Normal powder coating thickness: 60-100 micro

F. Tensile strength: ≥ 160 mpa

G. Yield strength: ≥ 110 mpa

H. Extensibility: ≥ 8%

I. Hardness(HW): ≥ 8

Normal order process:

1. Confirm the drawings, colors and price;
2. Make the payment of 30% deposit
2. Start to make mould;
4. We send samples for your confirmation;
5. Mass production and delivery;

Technical Data:

1) Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn Ti impurity Al
6063 0.2 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.4-0.6 0.1 0.1 0.1 0.15 Rest

2) Mechanical property

Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥160Mpa ≥110Mpa ≥8%
T6 ≥205Mpa ≥180Mpa ≥8%
6061 T6 ≥265Mpa ≥245Mpa ≥8%

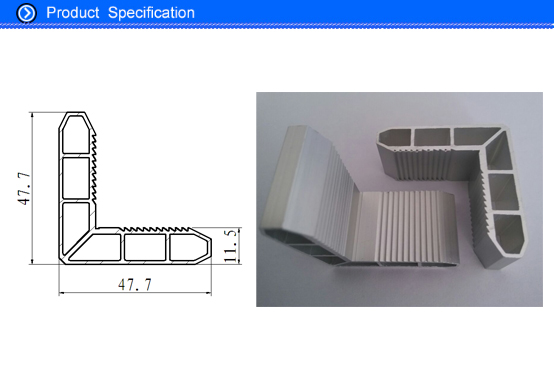

Mill Finished 90 Degree Anodised Aluminium Angle for Solar Mounting System and Solar Panel

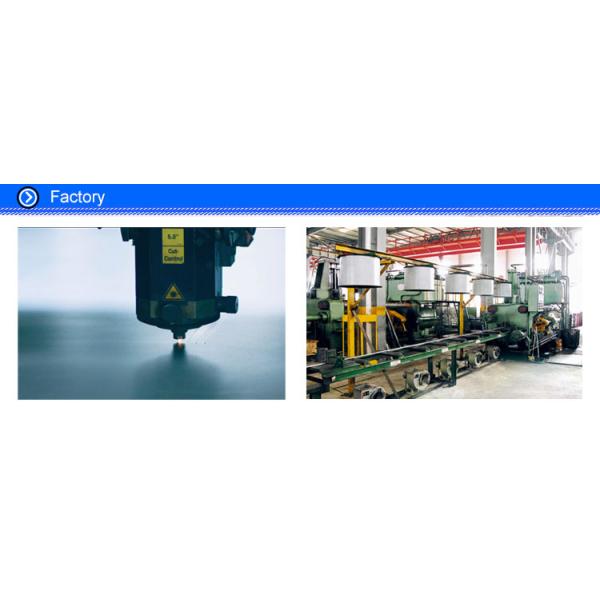

Factory Pic:

Mill Finished 90 Degree Anodised Aluminium Angle for Solar Mounting System and Solar Panel
