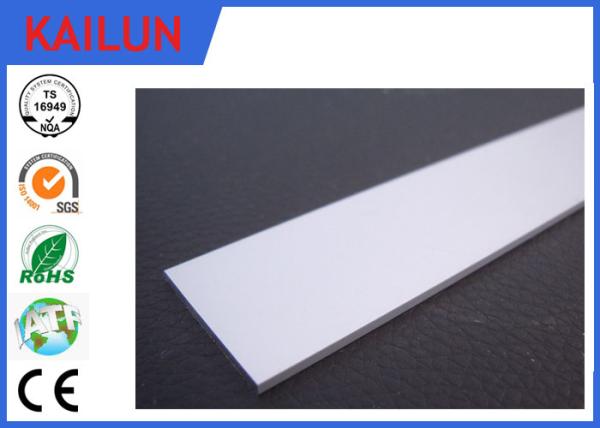

50mm Width T5 Aluminium Flat Bar For Home Decoration Extruded Aluminum Parts
50mm Width T5 Aluminium Flat Bar For Home Decoration Extruded Aluminum Parts
50mm Width T5 Aluminium Flat Bar For Home Decoration Extruded Aluminum Parts
50mm Width T5 Aluminium Flat Bar For Home Decoration Extruded Aluminum Parts
Specifications
Brand Name :
KaiLun
Model Number :
KL-F2031
Certification :
ISO/TS16949,SGS,ROHS.
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
1 Ton
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
3000tons / Month
Delivery Time :
Within 15 days after received your deposit
Packaging Details :
Protective film+ Corrugated board+ Wrapping film+Plywood pallet, as per export packing standard, custom packaging is available
Product Name: :
Extruded Aluminum Flat Bar
Shape :
Flat
Temper: :
T5
Deep Process: :
Cutting, Milling, Drilling, Punching,CNC,etc
OEM/ODM :
Available
Color :
Black
Description

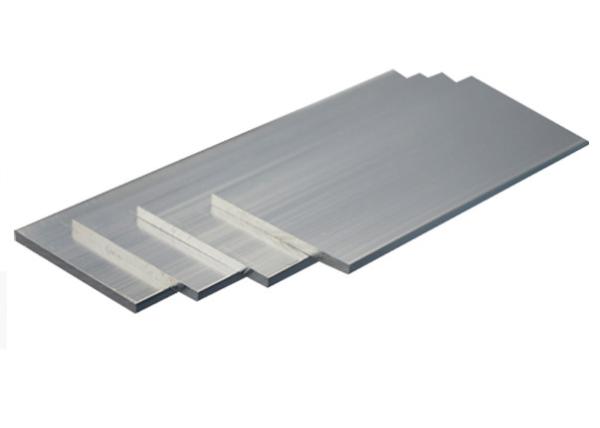

50MM Width Extrusion Aluminium Flat Bar with Silver Anodizing Color for Home Decoration Parts


Usage:

Aluminium Tube

1. for home decoration part

2. for fishing rod set

3. for vehicle use part

4. for glass curtain wall

5. for 30Watt LED lighting

6. for industrial machinery part

7. for black picture frame

8. for large picture frames












Chemical Compositions:

Alloy

Chemical Compositions

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others

Al(Min)

6005

0.6-0.9

0.35

0.1

0.1

0.4-0.6

0.1

0.1

0.1

0.15

rest

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

rest









Mechanical Properties:

Alloy

Temper

Thickness

T.S.

Y.S

ELOG.

Hardness

σb (MPa)

σ0.2 (MPa)

δ%

HV

HW

6005

T5

≥ 0.8

≥260

≥240

≥10

≥85

≥15


6063

T4

≥ 0.8

≥130

≥65

≥12

-

-

T5

≥ 0.8

≥160

≥110

≥8

≥58

≥8

T6

≥ 0.8

≥205

≥180

≥8

≥65

≥10

6061

T4

≥ 0.8

≥180

≥110

≥16

≥65

≥10

T6

≥ 0.8

≥265

≥245

≥8

≥85

≥15.5



Plant Profile:

Jiangsu Karen Aluminum Co.,Ltd is a large-scale professional manufacturing company,specialized in aluminium extrusions & fabrication for Top 500 Enterprises. We focus on aluminum extrusion profiles , solar panel frame , elevator door sill , t slot aluminum extrusion , aluminium i beam , aluminium louvers since 1985.

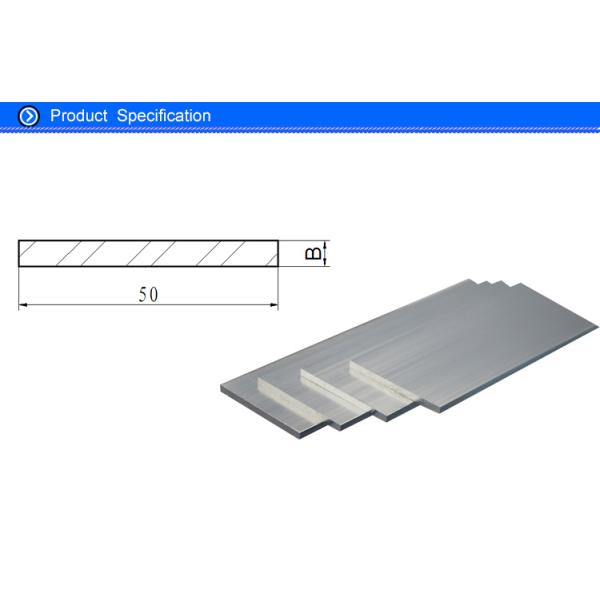

Flat Bar Drawing:

50mm Width T5 Aluminium Flat Bar For Home Decoration Extruded Aluminum Parts

Model No. Width (mm) Thickness(mm) EST.WEIGHT(kg/m)
F2031 50 5 0.678
F2032 50 5.5 0.745
F2033 50 6 0.813
F2034 50 6.5 0.881
F2035 50 7 0.949
F2036 50 7.5 1.016
F2037 50 8 1.084
F2038 50 8.5 1.152
F3006 50 9 1.220
F3007 50 9.5 1.287
F3008 50 10 1.355
F3009 50 10.5 1.423
F3010 50 11 1.491
F3011 50 11.5 1.558
F3012 50 12 1.626
F3013 50 12.5 1.694
F3014 50 13 1.762
F3015 50 13.5 1.829
F3016 50 14 1.897
F3017 50 14.5 1.965
F4015 50 15 2.033
F4016 50 15.5 2.100
F4017 50 16 2.168
F4018 50 16.5 2.236
F4019 50 17 2.304
F4020 50 17.5 2.371
F4021 50 18 2.439
F4022 50 18.5 2.507
F4023 50 19 2.575
F4024 50 19.5 2.642
F4025 50 20 2.71
F4027 50 20.5 2.778
F4028 50 21 2.846
F4029 50 21.5 2.913
F4030 50 22 2.981
F4031 50 22.5 3.049
F4032 50 23 3.117
F4033 50 23.5 3.184
F4034 50 24 3.252
F4035 50 24.5 3.320
F4036 50 25 3.388

Our Advantage:

1. Rich Industry Experiences:
We have over 30 years experience in aluminum extrusion production, and over 10 years in solar panel frame,150 kinds of frame have been developed for a variety of use.

2. Good Capacity:
Equipped with 15 automatic extrusion lines,our production capacity above 3000T per month

3. Quality Management and Control System:
Having passed the ISO/TS 1694 and SGS certifications, our quality management and control team ensures that every product is manufactured to the highest specifications.

4. One-stop Service:
From the inspection of the raw material, extrusion, aging oven treatment, sandblasting, anodizing, film coating, further processing center, packaging; Karen Aluminum can take care of all of your aluminum extrusion product needs.
