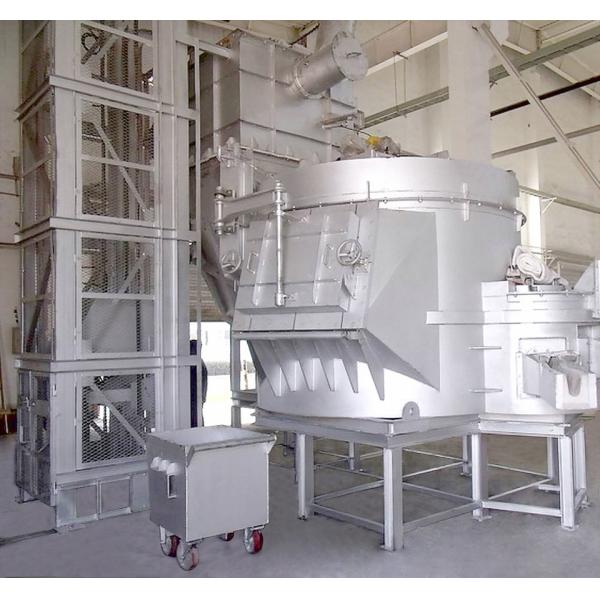

1 Ton Gas Fired Aluminum Scrap Melting Furnace With 4000 KW Aluminum Shell
1 Ton Gas Fired Aluminum Scrap Melting Furnace With 4000 KW Aluminum Shell
1 Ton Gas Fired Aluminum Scrap Melting Furnace With 4000 KW Aluminum Shell
1 Ton Gas Fired Aluminum Scrap Melting Furnace With 4000 KW Aluminum Shell
1 Ton Gas Fired Aluminum Scrap Melting Furnace With 4000 KW Aluminum Shell
1 Ton Gas Fired Aluminum Scrap Melting Furnace With 4000 KW Aluminum Shell
1 Ton Gas Fired Aluminum Scrap Melting Furnace With 4000 KW Aluminum Shell
1 Ton Gas Fired Aluminum Scrap Melting Furnace With 4000 KW Aluminum Shell
1 Ton Gas Fired Aluminum Scrap Melting Furnace With 4000 KW Aluminum Shell
1 Ton Gas Fired Aluminum Scrap Melting Furnace With 4000 KW Aluminum Shell
1 Ton Gas Fired Aluminum Scrap Melting Furnace With 4000 KW Aluminum Shell
1 Ton Gas Fired Aluminum Scrap Melting Furnace With 4000 KW Aluminum Shell
Specifications
Brand Name :
HYDEB
Model Number :
HBQ-261
Certification :
CE ISO9001
Place of Origin :
Jinan, China
MOQ :
1 set
Price :
1000USD/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
60 sets per year
Delivery Time :
45 workdays
Packaging Details :
Standard exporting package
Application :
Industry Heating Process
Weight :
2000 KG
Voltage :
3.7v-660v
Key Selling Points :
High-accuracy
Power :
1w-10000w
Dimension(L*W*H) :
customzied
Description

Manufacturer of 1 Ton Gas Fired Aluminum Scrap Melting Furnace with 4000 kW Aluminum Shell for Smelting

1. Smelting Crucible Furnace Genernal Introduce
-- Use in all foundries or aluminum die casting area
– Smeltery for feeding holding furnaces or for direct casting.
-- Low heat losses through high-quality insulation
-- No exhaust system needed
-- Accurate temperature control Crucible
-- Standard design for the use of graphite crucible
2. Smelting Crucible Furnace Specification Data
SN
Items
Date
Remarks
1
Efficient furnace capacity kg (Al)
580
2
Melting Rate kg/h (Al)
280
Inside the crucible there is already have 1/3 molten aluminum.
3
Maximum furnace temperature ℃
950
4
Precision of molten aluminum temperature control ℃ ≤± 5
5
Temperature control mode
PID+Dual temperature control
6
Crucible type and size mm OD 880, d 350mm, H 1000
BN800
Morgen
7
Furnace surface temperature rise ℃ ≤50
Except for the installation site of the heating tube, the discharge outlet and rising tube
8
Power Source Voltage V/Frequency HZ
380/50
9
Air Pressure MPa
0.5-0.7
3. Smelting Crucible Furnace Types
Type
CRL-300
CRL-500
CRL-600
CRL-800
CRL-1000
CRL-1200
Capacity
191KG
338KG
515KG
763KG
952KG
1062KG
