Customizable Online Launder Degassing Liquid System Moisture Ppm ≤3 Pressure MPa 0.1-0.6 Adjustable
Customizable Online Launder Degassing Liquid System Moisture Ppm ≤3 Pressure MPa 0.1-0.6 Adjustable
Customizable Online Launder Degassing Liquid System Moisture Ppm ≤3 Pressure MPa 0.1-0.6 Adjustable
Customizable Online Launder Degassing Liquid System Moisture Ppm ≤3 Pressure MPa 0.1-0.6 Adjustable
Customizable Online Launder Degassing Liquid System Moisture Ppm ≤3 Pressure MPa 0.1-0.6 Adjustable
Customizable Online Launder Degassing Liquid System Moisture Ppm ≤3 Pressure MPa 0.1-0.6 Adjustable
Specifications
Brand Name :
HYDEB
Model Number :
HDDL-IV
Place of Origin :
Jinan, China
Certification :
ISO CE
MOQ :
1
Price :
22999-39999USD/set
Packaging Details :
Wooden box
Delivery Time :
50-60 days
Payment Terms :
30%+70%, L/C, T/T
Supply Ability :
300 sets per year
Frequency Hz :
50
Flow rate (single rotor) m3/h :
0.5～3 Adjustable
O2ppm :
≤5
Number of rotors :
4
Maximum aluminum liquid processing volume t/h :
25
Graphite rotor speed r/min :
0－600
Total power KW :
<5
Flow rate m3/h :
≥0.5
Description

Customizable Online Launder Degassing Liquid System Moisture Ppm ≤3 Pressure MPa 0.1-0.6 Adjustable

Product Description:

In-Line Degassing Launder Type In-line Degassing in-line rotary degassing equipment for Liquid aluminium degassing fluxing

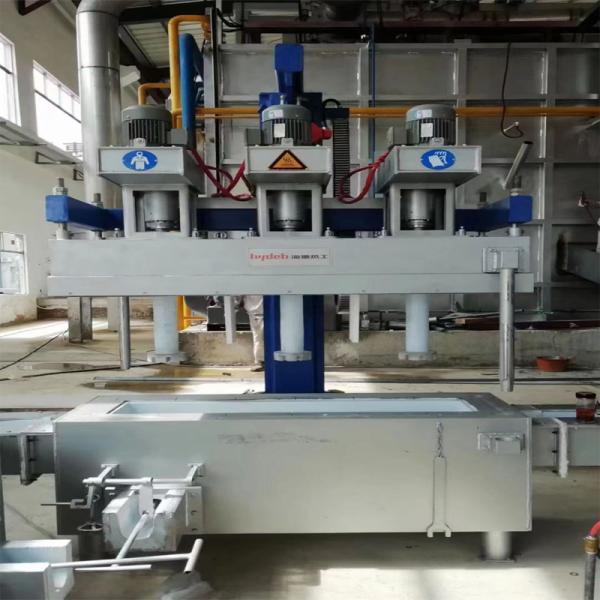

The LDU Launder Type In-line Rotory Degassing Unit is installed between the furnace and the casting machine along with the length of the launder. The degassing area is divided into several stages by using baffles to realize multi-stage online degassing and improve degassing efficiency. The number of installed rotors is determined by the flow rate and quality of the molten aluminium.
Customizable Online Launder Degassing Liquid System Moisture Ppm ≤3 Pressure MPa 0.1-0.6 Adjustable

Features:

◆ High degassing efficiency, up to 40%. By using multi-zone continuous degassing increases the contact area and time between bubbles and molten aluminium. The box body is sealed as a whole to ensure that on the top there will be an inert space over the molten aluminium surface during casting, to prevent the oxidation of the molten aluminium from producing more oxide slags, to prevent secondary pollution, and to improve the degassing efficiency

◆ Using the launder to degas, the residual molten aluminium is less, and reducing the loss of metal. The maintenance cost is low, and the launder replacement is convenient and fast.

◆ Convenient for the quick changeover of alloys. There is no heating device and no deep box, so at the end of each casting, most of the degassed molten aluminium is made into products. And the leaving molten aluminium in the degassing tank can be easily cleaned up, which is convenient for the quick changeover of alloys

◆ Especially suitable for semi-continuous casting lines such as cast bar and recycled aluminium ingot production. Alloys are changed frequently in this casting process and high levels of hydrogen removal are not required.

Customizable Online Launder Degassing Liquid System Moisture Ppm ≤3 Pressure MPa 0.1-0.6 Adjustable

Technical Parameters:

Frequency Hz 50
Number of Phases 3
Working liquid level in degassing tank ≥250
Refined gas Purity (%) ≥99.996
Normal service life of shaft and rotor 1 Month
Dew point ℃ <-69
Moisture (ppm) ≤3
Pressure MPa 0.1-0.6 Adjustable
O2ppm ≤5
Normal service life of box lining ≥12 Months

This table represents the technical parameters of the Inline Rotary Degassing Unit Casting, also known as the Aluminum Foundry Degasser or Aluminum Degassing Melting Furnace.

Customizable Online Launder Degassing Liquid System Moisture Ppm ≤3 Pressure MPa 0.1-0.6 AdjustableCustomizable Online Launder Degassing Liquid System Moisture Ppm ≤3 Pressure MPa 0.1-0.6 AdjustableCustomizable Online Launder Degassing Liquid System Moisture Ppm ≤3 Pressure MPa 0.1-0.6 Adjustable
