150mm~3000mm width Color Coated Aluminum Sheet Solid Aluminium Cladding

Specifications

Brand Name :

WHOLETOPS

Certification :

SGS

Place of Origin :

China

Supply Ability :

8000sqm per day

Packaging Details :

Wooden box

MOQ :

Negotiable

Price :

45USD-55USD

Delivery Time :

7-15work days

Payment Terms :

TT,L/C

Product name :

Ceramic Coated Aluminum Solid Panel

Thickness :

2.0mm—4.5mm

Surface Finished :

Ceramic Coated

Material :

Aluminum

Aluminum Alloy :

1100/3003/5005

Size :

150~3000mm×150~6000mm or customized

Application :

Shopping mall,lobby,hospital,office building

Class Fire Prevention :

Function :

Anti-Static, Antibacterial, Mould-Proof

Description

Lightweight Ceramic Coated Aluminum Solid Panel

Product Overview:

Material	Aluminum	Aluminum Alloy	1100 / 3003 / 5005
Total Thickness	2.0mm——4.5mm (normal), special thickness can be customized.	Surface Finish	Ceramic Coated
Class Fire Prevention	A1	Warranty	10-20 years
Size	150~3000mm×150~6000mm, Special size can be customized.	Color	Customized
Packing	Wooden Box	MOQ	500㎡

Product Information:

WHOLETOPS brand Lightweight Ceramic Coated Aluminum Solid Panel is composed of ceramic coated surface and aluminum plate. It is mainly made of high quality aluminum alloy and formed by sheet metal workshop through a variety of processing techniques. It is a kind of decoration material for building interior and exterior walls with superior performance. Its surface coating using advanced ceramic coating system, which has excellent durability, chemical corrosion resistance and good hardness and absolutely excellent fire prevention, insulation performance.

Specification:

1. Thickness: 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm and so on.

2. Surface finish: PVDF coated / Power coated

3. Aluminum Alloy: 1100, 3003, 5005

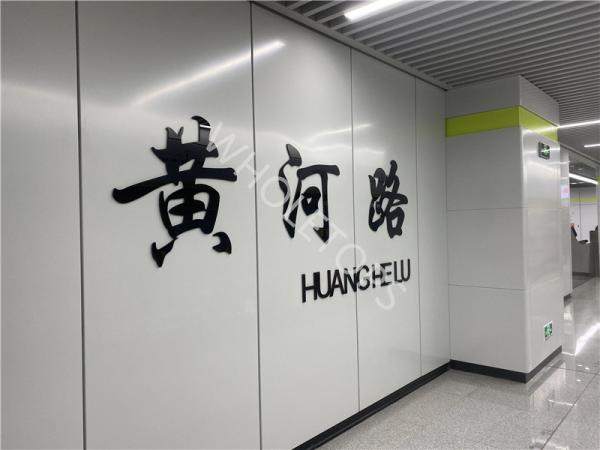

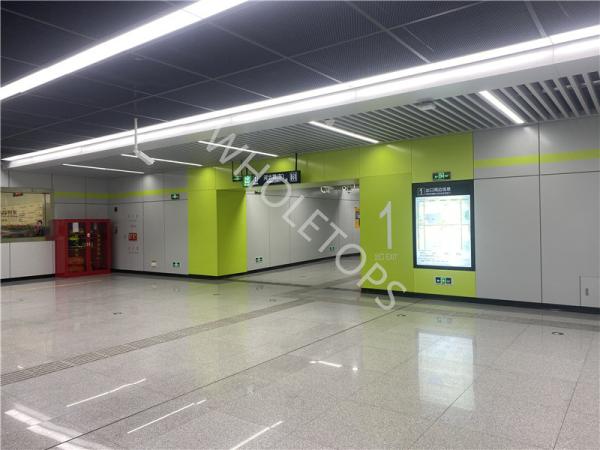

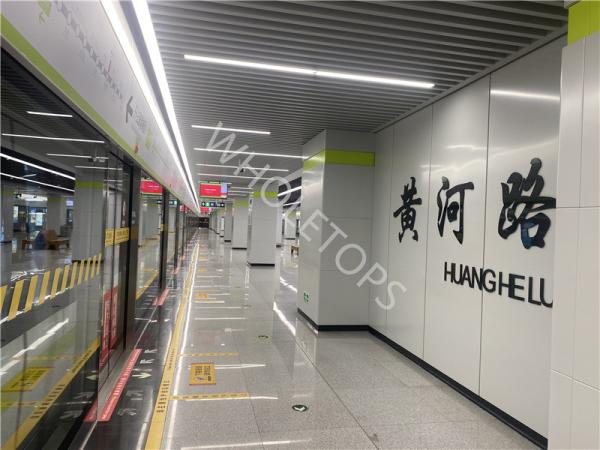

Scopes of Application:

Lightweight Ceramic Coated Aluminum Solid Panel is widely used in

1) Building exterior curtain walls..

2) Decoration and renovation additions for old buildings

3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies

4) Shop door decorations

5) Advertisement board display platforms and signboards

6) Wallboards and ceilings for tunnels..

Product advantages:

1. High hardness and scratch resistance; its hardness ≥ 7H, is 7 times compare with the fluorocarbon (PVDF) coated hardness

2. Silicate ceramic aluminum panel is use water as the solvent, not including xylene, it is safe and green product

3. At 300 degree, the color will not change and coating will not damaged. At 600 degrees, The coating film only occur discoloration without decomposition, It belonging to the incombustible decorative material, fire rating of A1 (fluorocarbon sheet A2)

4. Inorganic material to eliminate static electricity, so that the pollutants in the atmosphere will not adhesion, always keep the gorgeous appearance, It has the self-cleaning function

5. Can provide a variety of color, can adjust the brightness in a certain range, to meet the different requirements for the color and luster of buildings, to the designer to provide more vast space

Compare with PVDF coated solid aluminum panel:

Item	PVDF coated	Ceramic paint
Fire proof grade	A2 grade(smoke)	A1 grade(no smoke)
Hardness	0~2H	7~9H
Scratch resistant	Easy to scratch	Not easy to scratch
High temperature resistant	280℃ have smoke	1600 ℃ no smoke
QBWear resistant standard	＜500 time	＞2000 time
Toxicity	Organic solvent	water
cleaning	not self-clean	Self - clean
life	15 years	30 years
