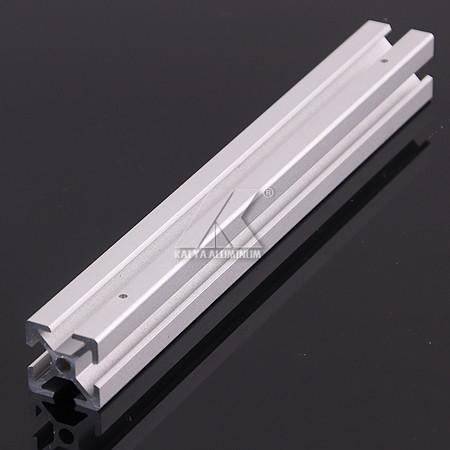

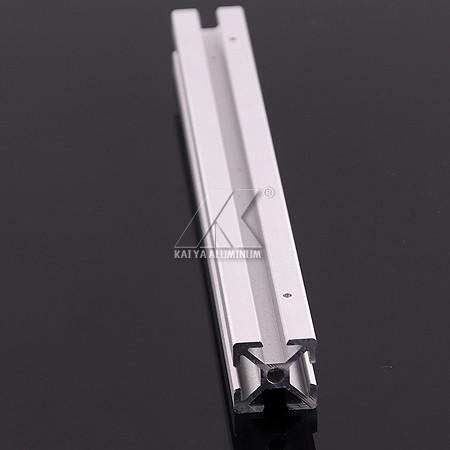

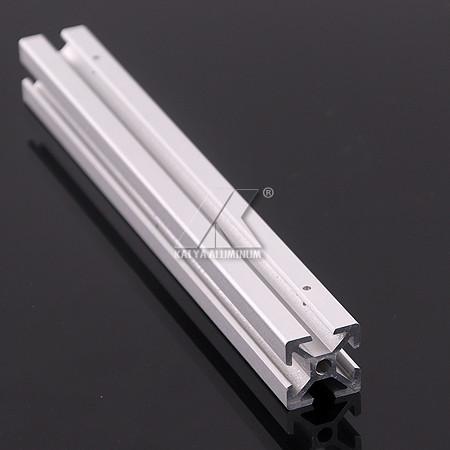

20x20mm T Slot Aluminum Extrusion , Anodized Aluminum Profiles 6000 Series
20x20mm T Slot Aluminum Extrusion , Anodized Aluminum Profiles 6000 Series
20x20mm T Slot Aluminum Extrusion , Anodized Aluminum Profiles 6000 Series
20x20mm T Slot Aluminum Extrusion , Anodized Aluminum Profiles 6000 Series
20x20mm T Slot Aluminum Extrusion , Anodized Aluminum Profiles 6000 Series
20x20mm T Slot Aluminum Extrusion , Anodized Aluminum Profiles 6000 Series
Specifications
Brand Name :
KAIYAMEI
Model Number :
KALSX002
Certification :
ISO 9000 ; ISO 9001 ; ISO 14000 ; CQC ; RoHS
Place of Origin :
Foshan, Guangdong, China
MOQ :
3000kgs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 TONS/YEAR
Delivery Time :
15-40 days
Packaging Details :
Protect film for each profile, shrink film / kraft paper exterior for each bundle or pack as customer request.
Material :
6063-T5
Finish :
Anodized
Size :
2020
Color :
Matt
Origin of place :
Guangdong, China
OEM :
Yes
Name :
Aluminum T slot
Description
2020mm 6000 Series T Slot For Frame Machine Anodized Aluminum Printer Profile
Product Description
Delivery time: 15-20 days after receiving the deposite.

Payment term: 30% deposite and 70% balance after the delivery

Material: 6063 Alloy

Temper: T5

Brand name: Kaiyamei Aluminum

Finish: Mill Finished, Anodizing, Electrophoresis, Powder Coating ,Polish, Wood grain, Sand Blasting

Color: Clear Satin, Bronze, Black, Golden, Silver,

Thickness: 0.8mm - 1.5mm

MOQ: 500KG. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

Length: 5.8-5.98m, or as customer's request

Sample delivery: Two weeks (one week for mould +one week making sample)

Sample design: It is better we can get your drawing or sample, we mainly make according to your design, and we can keep confidential for your design.

Maximum extruder machine: 8000 tons; Minimum extruder machine: 500 ton

Delivery: About a month, it depends on quantity and size.

If the profiles are customized, we will make the sample first, after we get the confirmation from you, we will start production.

Mechanical Properties of Sections under Room Temperature

Alloy

State

 Tensile strength test Hardness test
Tensile strength Rm M pa Non-proportional Stretching Stress Stretching rate Pattern thickness HV HW
Rp0.2Mpa (A50mm%) mm HV HW
6063 T4 130 75 14 -
T5 160 110 8 0.8 58 8
T6 205 180 8 -

6061

 T4 184 110 16 -
T6 265 245 8 -

6082

(6351)

 T4 205 110 12 -
T6 290 250 6 -

Advantages of the extrusion process

The extrusion process provides virtually unlimited opportunities for aluminium product shapes. Costs are cut by designing fewer components, which reduce fabrication and simplify assembly.
These features and benefits are unmatched by other materials and processes
Complex integral shapes Cost effective Low tooling costs
Design flexibility Versatility in joining Machinable
Rapid prototyping Short lead times Wide range of finishes

Questions & Answer

Q: How to ensure the quality of your products?
A: ISO9001,ISO1400,CE, CQM.client reqirements, product standards,strict inspection to control raw material,production process and final products.


Q: How can we get your price ?
A: We need below information to quote for you:
1. Please send us the Drawing of profile or specific sized of profile or send us the samples

2. Please tell us the surface treatment,

3. Tell us the quantity


Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.


Q: How long do you need the delivery time?
A: 1.Supply within 10-15days (product in our stock list)
2.Custom products need to be calculated according to the quantity.

About us :

Foshan Kaiya Aluminum Co., Ltd is a comprehensive and professional enterprise integrating research, design production and sales of aluminium extrusion profiles for construction and industrial applications. There are currently 24 aluminum extrusion process lines at 500MT TO 2500MT, 5 process lines for anodizing, 3 process lines for powder coating, 2 process line for painting, 2process line of polishing and brushing. We still have 2 packing line. Our annual production capacity has reached 80,000 tons which is at the forefront of the aluminium industry in China.
