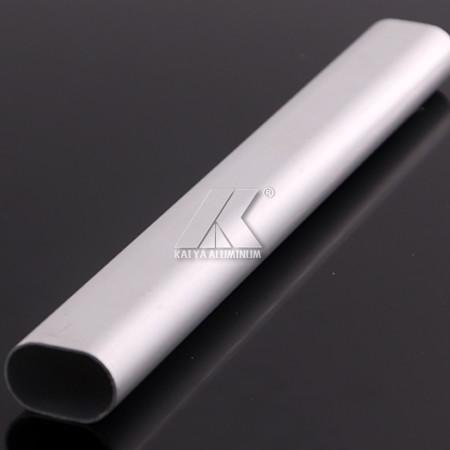

6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks
6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks
6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks
6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks
6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks
6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks
6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks
6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks
6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks
6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks
Specifications
Brand Name :
KAIYAMEI
Model Number :
008
Certification :
ISO, CE, ROHS
Place of Origin :
Foshan, Guangdong, China
MOQ :
3000kgs
Price :
deliberative
Payment Terms :
Western Union, T/T
Supply Ability :
8000T per year
Delivery Time :
20-25 DAYS
Packaging Details :
Protect Film for Each Profile, Shrink Film / Kraf
material :
6063
types :
CNC aluminum
shape :
oval
class :
6000 series
temper :
T3-T5
is alloy or not :
alloy
surface treatment :
anodized
specification :
customized
length :
customized
size :
customized
Description

6000 Series Aluminium Extrusion Oval Pipe For Auto Luggage Racks of Specials

Aluminum tubes

Mechanical Properties of Sections under Room Temperature


Alloy
State		 Tensile strength test Hardness test
Tensile strength Rm M pa Non-proportional Stretching Stress Stretching rate Pattern thickness HV HW
Rp0.2Mpa (A50mm%) mm HV HW
6063 T4 130 75 14 -
T5 160 110 8 0.8 58 8
T6 205 180 8 -

6061 		T4 184 110 16 -
T6 265 245 8 -
6082
(6351)		 T4 205 110 12 -
T6 290 250 6 -

Alloy 6063(%) 6061(%) 6082(%)
Silicon Si 0.20~0.60 0.40~0.80 0.7~1.2
Iron Fe 0.35 0.70 0.5
Copper Cu 0.10 0.15~0.40 0.1
Manganese Mn 0.10 0.15 0.4~0.8
Manganese Mg 0.45~0.90 0.18~1.2 0.6~0.8
Chromium Cr 0.10 0.04~0.35 0.25
Zine Zn 0.10 0.25 0.2
Titanium Ti 0.10 0.15 0.1
Others(each) 0.05 0.05 0.05
Others 0.15 0.15 0.15
Aluminum Remainder Remainder Remainder

General Chemical Composition of Alloy

Other aluminum alloy cuould be customized.

6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks

Aluminum tube

6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks

Aluminum Square and rectangleTube, is an extruded aluminum profile and use in a wide rangle of applications.

Oval tube is used in the luggage handle, wheelbarrow, industrial and so on.

Aluminum profile with different kinds of finish when they extruded, such as powder coated, Anodized, wood grain,

Fluorocarbon coating, electrophoresis, mill finish.etc.

Wood grain tubes shows

6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks

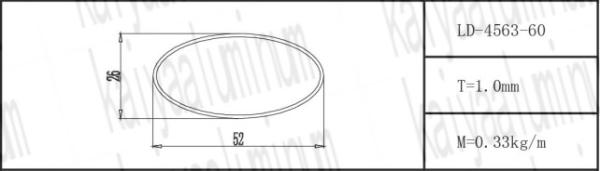

Available size for rectangle tube

6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks

We are welcome any customized size.

Our company

6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks

Foshan kaiya aluminum company is a large comprehensive enterprise integrating curtain wall profile, window & door profile, decorative profile, roller shutter profile and industry profile. Cover an area of nearly 80000 square meters, Foshan kaya aluminum company is a professional aluminum manufacturer and process company, mainly products including anodized profile, electrophoresis profile, spray coated profile, fluorocarbon coated profile, thermal break and plastic injection aluminum profile.
The company technical force is abundant,has modern management personnel more than 50 people, senior technical personnel 28 people, production staff more than 800 people, with complete and scientific quality management system, modernization of aluminum extrusion lines, advanced testing equipment, perfect dection means, which most important is extrusion machine, silicon machine, ice machine, electrophoresis, spraying line, wood grain line...............

Our workshop

6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks

6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks

Our package

6000 Series Oval Aluminium Extrusion Pipe For Auto Luggage Racks

1, Pearl cotton film+ shrink film

2, pearl cotton film + plastic film

3, pearl cottom film/shrink film +kraft paper

4, wood pallet

5, Any customized package is available.

We are welcome your inquiry, our team on line 24 hours!

Any inquiry or question welcome dirctly contact or via mail: yezhi@kaiya-aluminum.com
