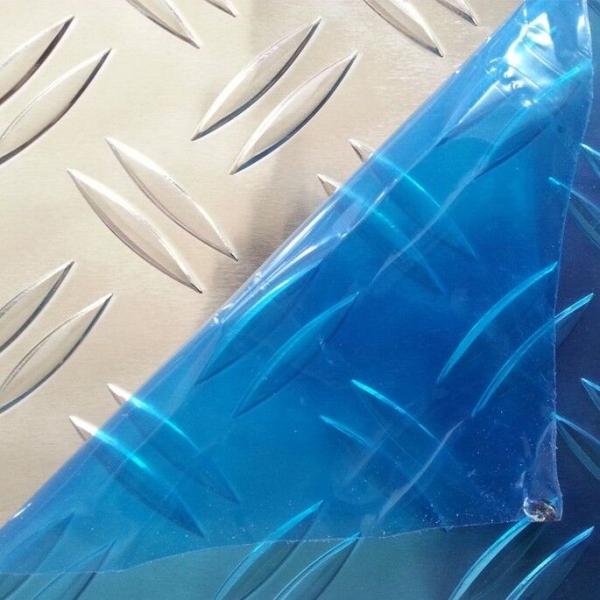

1050 1060 1100 3003 Embossed Aluminum Diamond Tread Plate
1050 1060 1100 3003 Embossed Aluminum Diamond Tread Plate
1050 1060 1100 3003 Embossed Aluminum Diamond Tread Plate
1050 1060 1100 3003 Embossed Aluminum Diamond Tread Plate
1050 1060 1100 3003 Embossed Aluminum Diamond Tread Plate
1050 1060 1100 3003 Embossed Aluminum Diamond Tread Plate
1050 1060 1100 3003 Embossed Aluminum Diamond Tread Plate
1050 1060 1100 3003 Embossed Aluminum Diamond Tread Plate
Specifications
Brand Name :
OEM
Model Number :
ZX-1050 1060 1100 3003 3105 5005 5052
Certification :
ISO/SGS
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, T/T, Western Union
Supply Ability :
1000 Ton per Month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases standard export package
Name :
Diamond Plate Aluminum Sheets
Alloy Or Not :
Is Alloy
Type :
Plate
Surface Treatment :
Embossed
Application :
Curtain Wall, Public restrooms, Vessel etc.
Width :
1000mm, 1200mm, 1219mm, 1220mm, 1250mm
Color :
Silver or as required
Grade :
1000 Series
Temper :
O-H112
Thickness :
0.2 - 10.0mm
Surface :
polished, anodized, laminated
Shape :
Sheet/Roll/Coil/Plate
Tolerance :
±15%
Pattern :
Hammered, Stucco, tread, checkered, diamond, compass
Description

1050 1060 1100 3003 Embossed Aluminum Diamond Tread Plate

The general embossed aluminum sheet: 1060 aluminum sheet for the sheet from the processing of aluminum alloy pattern sheet, able to adapt to the normal environment, low prices. Usually cold storage, flooring, packaging and more use of this pattern aluminum sheet.

Al-Mn alloy embossed aluminum sheet: 3003 as the main raw material processing, the aluminum sheet, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern sheet, with a certain anti-rust properties, but the hardness and corrosion resistance Less than 5,000 series of pattern sheet, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.

Al-Mg alloy embossed aluminum sheet: 5052 or 5083, such as 5000 series of aluminum as raw material processing, with good corrosion resistance, hardness, anti-rust performance. Usually used in special places, such as ships, cars lights, humid environment, the high hardness of aluminum, a certain load-bearing capacity.

Product Name

1050 1060 1100 3003 Aluminum Tread Sheet/Embossed Aluminum Plate Price

Alloy No.

1050 1060 1100 3003 3005 3105 5005 5052 5182 etc.

Temper No.

O, H12/H22, H14/H24, H16/H26, H18, F etc.

Thickness

0.2 - 10.0mm

Width

Max 2400mm; Regular width is 1000mm, 1200mm, 1219mm, 1220mm, 1250mm

Length

Max 12000mm; Regular length is 2000mm, 2400mm, 2438mm, 2440mm, 2500mm

Surface

Embossed (Hammered, Stucco, diamond, compass, orange peel etc.)

Package

Export packaging fumigation pallet or based on requested

Standard

ASTM, GB/T3190-2008, ENAW, JIS, etc.

Application

Curtain Wall, Public restrooms, Vessel etc.

1050 1060 1100 3003 Embossed Aluminum Diamond Tread Plate
