1500mm X 6000mm Aluminium Ceiling Panels , Hot Insulation Lightweight Honecomb Panels
1500mm X 6000mm Aluminium Ceiling Panels , Hot Insulation Lightweight Honecomb Panels
1500mm X 6000mm Aluminium Ceiling Panels , Hot Insulation Lightweight Honecomb Panels
1500mm X 6000mm Aluminium Ceiling Panels , Hot Insulation Lightweight Honecomb Panels
Specifications
Brand Name :
WILLSTRONG
Model Number :
WSAHP 01
Certification :
ISO 14001
Place of Origin :
China Guanghzou
MOQ :
300
Price :
45usd/sqm
Delivery Time :
15
Packaging Details :
wood pallet
Structure :
Sandwich structure
Function :
Sound-absorbing; Fire-proof
Coating :
PET/PVDF Roller painting
Color :
RAL & PANTON
Size :
1220*2440
Alloy :
1100;3003;5052
Description

Factory

1500mm X 6000mm Aluminium Ceiling Panels , Hot Insulation Lightweight Honecomb Panels

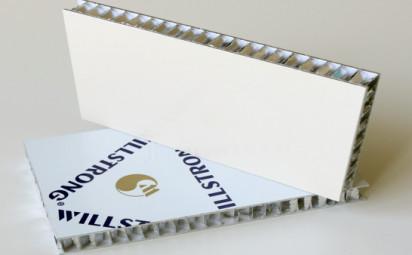

WILLSTRONG® AHP is an innovative composite materials in sandwich structure, composed of two thin aluminium cover sheets and hexagonal aluminium core, laminated under hot pressure by aviation-grade adhesive agent. Aluminum Honeycomb panel for ceiling have the performance of sound-absorbing, is a high-end product.

1500mm X 6000mm Aluminium Ceiling Panels , Hot Insulation Lightweight Honecomb Panels

Item Standard Specification
Face Material Material: Al-mg-mn alloy , Copper, Zinc and Stainless Steel, etc
Thickness:0.7mm or 1.0mm(other options are available)
Back Material Material: Al-mg-mn alloy Copper, Zinc and Stainless Steel, etc
Thickness:0.7mm or 1.0mm(other options are available)
CORE Material: Aluminum Honeycomb Core
Thickness:0.075mm(other options are available)
Bore:4mm or 19mm
Adhesive Adhesive film
Surface PVDF Coating, PET Coating (other options are available)
Size Length≤6000mm(other options are available)
Width≤1500mm(other options are available)
Thickness:6mm,12mm,20mm,25mm,35mm
Weight 5.00~7.5kg/m2
Color Stone finishing of WILLSTRONG or Customized
FR GBT 8624-2006 Grade : Bs1,d0,t0

Advantages:
Physical Performance Excellent high rigidity, bending strength, light weight, perfect flatness, sound insulation, hot insulation, good machinability .
Shapes Non-plane panel is possible, no need further process.
Varies of Dimension Big size, up to 1500mm*6000mm
Durability Excellent quality, durable for 20 years or more
Fireproof performance non-combustible
Installation Single panel independently dismounting ,easy for fabrication ,installation and maintain .
Jointing: Open style and closed style

1500mm X 6000mm Aluminium Ceiling Panels , Hot Insulation Lightweight Honecomb Panels
