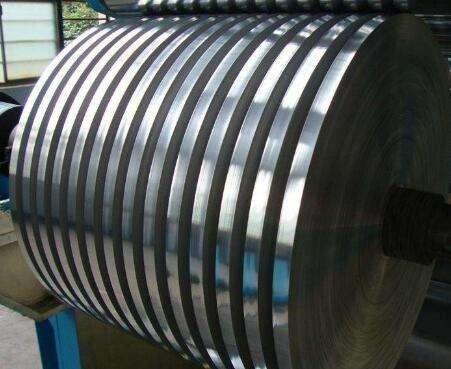

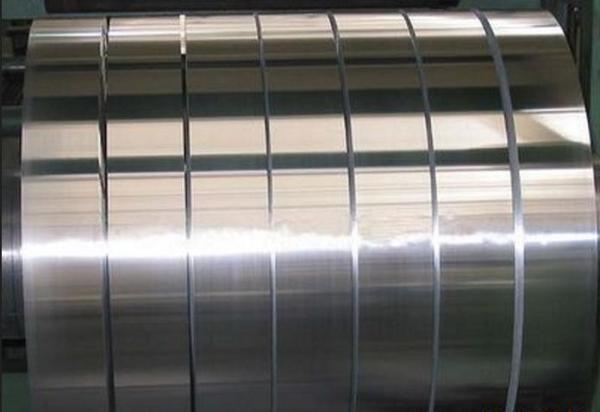

AA1050 Aluminum Alloy Strip Customized Min 20mm Width For Transforme
AA1050 Aluminum Alloy Strip Customized Min 20mm Width For Transforme
AA1050 Aluminum Alloy Strip Customized Min 20mm Width For Transforme
AA1050 Aluminum Alloy Strip Customized Min 20mm Width For Transforme
AA1050 Aluminum Alloy Strip Customized Min 20mm Width For Transforme
AA1050 Aluminum Alloy Strip Customized Min 20mm Width For Transforme
Specifications
Brand Name :
NOONDAY
Model Number :
1050/ 1060/ 1070/ 1100/ 3003/ 5052
Certification :
RoHS/ISO9001/ASTM/JIS/GB/EN/ASTMB
Place of Origin :
China
MOQ :
3 tons
Payment Terms :
L/C, T/T
Supply Ability :
20, 000 Mt Per Year
Delivery Time :
according to specification and quantity
Packaging Details :
Standard Export Packaging
Color: :
Silver
Alloy States: :
1050/ 1060/ 1070/ 1100/ 3003/ 5052
Surface Treatment: :
Mill Finish
Technology: :
Strip
Thickness: :
0.15-3.0mm
Width: :
Min 20mm
Transport Package: :
Standard Export Packaging
Description

AA1050 Aluminium strip for transforme

Aluminium strip for transformer winding 1050-O


(1) Chemical Composition

Si Fe Cu Mn Mg Cr Zn Ti Others Al.
Individual Total
Max. 0.25 Max.
0.40		 Max.
0.05		 Max.
0.05		 Max.
0.05		 — Max.
0.05		 Max.
0.03		 Max.
0.03		 — Min. 99.50


(2) Mechanical properties and electric conductivity

Thickness(mm) Tensile Strength(Mpa) Elongation
%		 Bending 180 buckling inside radius Electric conductivity at 20
Over 0.3 to 0.5 Min. 60 Max. 90 20 min. Close contact 62.5 min.
Over 0.5 to 0.8 25 min.
Over 0.8 to 1.3 30 min.
Over 1.3 to 2.0 35 min.
Over 2.0 to 2.5 35 min


(3)Application :transformer strip for transformer winding 1050 can be used for variable transformer like low or high voltage transformer winding,etc.
transfer strip for electrical coil application ranges from 0.3mm to 2.5mm, the alloy 1050(99.50% aluminum) can be used to meet the minimum industry requirements for strip conductor, is closely controlled to assure smooth, substantially burr-free edges and strip-size availabilities are in capacities exactly equivalent to those of standard copper wire sizes.

Specification:
1) Alloy 1050/ 1060/ 1070/ 1100/ 3003/ 5052
2) Thickness: 0.15- 3.0mm
3) Width Size: Min 20mm
4) Customer's specification is welcomed

Characteristic:

Appearance: natural color, Very smooth, Non-knife-cut mark.
Usage: Used in the Gutter, Constructions, Decorations, Air conditioning and Radiators et.


Packing:
1) Plastic drum.
2) According to the customer's demand.

Terms and conditions:

Trade term CIF / CFR / FOB
Payment term 30% before production+70% before shipment
100% Irrevocable L/C at sight
Or we can further cummunicate with each other about this part.
Shipment Normally it is about 30-35days
MOQ 5 metric tons for each thickness. (Normally it is formed according to the concrete specifications.)
Quantity tolerance +/-10% of total quantity as confirmed PI.


Commercial terms:

Minimum Order Quantity: 3 metric tons
Price: negotiation
Payment Terms: T/T or LC
Supply Ability: 20,000 mt per year
Delivery Time: 30 working days after received your down payment
Packaging Details: Standard export packaging


Our advantages:
1, Since 2008, we have rich experience in this industry in China;
2, Good reputation in the production of aluminium/aluminum plate areas;
3, We start our productions from aluminum ingot,so we can control the quality as well;
4, We have our own development department for new material research;
5, Good experience and cooperation with big clients in the world;
6, With Certificate ISO9001-2008;
7, High performance cost ratio;
8, Fast delivery time;
9, Customized orders available;
10, Good communication skills, and good service and understandings for customers.
