Thickness 0.10-3.0mm Aluminium Foil Strip , Brushed Aluminum Strips For Multilayer Pipe
Thickness 0.10-3.0mm Aluminium Foil Strip , Brushed Aluminum Strips For Multilayer Pipe
Thickness 0.10-3.0mm Aluminium Foil Strip , Brushed Aluminum Strips For Multilayer Pipe
Thickness 0.10-3.0mm Aluminium Foil Strip , Brushed Aluminum Strips For Multilayer Pipe
Thickness 0.10-3.0mm Aluminium Foil Strip , Brushed Aluminum Strips For Multilayer Pipe
Thickness 0.10-3.0mm Aluminium Foil Strip , Brushed Aluminum Strips For Multilayer Pipe
Specifications
Brand Name :
NOONDAY
Model Number :
AA1050/ AA1060/ AA1100/ AA3003/ AA8011
Certification :
RoHS/ISO9001/ASTM/JIS/GB/EN/ASTMB
Place of Origin :
China
MOQ :
3 tons
Payment Terms :
L/C, T/T
Supply Ability :
20, 000 Mt Per Year
Delivery Time :
according to specification and quantity
Packaging Details :
Standard Export Packaging
Color: :
Silver
Alloy States: :
AA1050/ AA1060/ AA1100/ AA3003/ AA8011
Surface Treatment: :
Mill Finish
Technology: :
Strip
Thickness: :
0.15-3.0mm
Width: :
4mm-1350mm
Transport Package: :
Standard Export Packaging
Description

Aluminum Alloy Strip For Multilayer Pipe

Aluminum Strip for PEX/AL/PEX pipe
Aluminum Alloy AA1050/ AA1060/ AA1100/ AA3003/ AA8011
Temper HO
Treatment process DC &CC
Specification

Thickness: 0.1-3.0mm

Width : 4-1350mm
Core 150mm, 300mm, 400mm (aluminium or paper core)
O.D. 1200mm-1350mm
Tensile strength ≥120 mpa
Yield strength < 95 N/mm2
Elongation > 20%
Application Five layer composite pipe
Packing Wooden pallet sutiable for long distance sea transportation

More information for aluminium strips for PEX/AL/PEX pipe

1. Propertities:

Our aluminium strip based on a new generation of materials for multilayer pipes offer outstanding advantages such as:

l Excellent roll forming and welding;

l Properties (for TIG, laser and overlap or butt welding) ;

l High strength combined with high elongation;

l Extrmely consistemt material characteristics;

l Good adhesion between aluminum and polyethylene due to special chemical degrease.

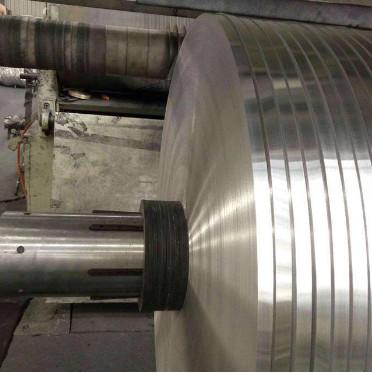

The slitting line, desined for slitting of narrouw and thin coils in soft conditions, ensures:

l No sticky windings and no staining;

l Less manipulation after sltting, less risk for damage and contamination;

l Uniform tension throughout the whole cil via most accurate control systems;

l Consistent slit edge quality due to accurate tooling: very low burr and edge deformation results in stable behaviour during the process.

Chemical degreasing line:

degreasing—— acid cleaning —— neutralization —— hot water washing —— drying

l Our material for multilayer pipes has a special chemical degreased surface for excellent adhesion between aluminium and polyethylene

l It is proven by peeling tests on different types of pipes that the adhesion with chemically degreased aluminium is much better than with

only thermally degreased aluminium.

Comparison for chemical degreased surface and thermally degreased

Thermally degreased :Though the surface seems very clean but the surface still contains dust or rollong oil remain.

Chemical degreased: During the degresing process, the surface oxides dissolve in the hot sulphuric acid. No rolling oil and debris on the

surface which will gives excellent adhesion properties and good welding performance.

3. Packing conditions:
