AA3003 Sliver Heavy Gauge Aluminum Foil Temper H24 Thickness 0.03-0.13mm
AA3003 Sliver Heavy Gauge Aluminum Foil Temper H24 Thickness 0.03-0.13mm
AA3003 Sliver Heavy Gauge Aluminum Foil Temper H24 Thickness 0.03-0.13mm
AA3003 Sliver Heavy Gauge Aluminum Foil Temper H24 Thickness 0.03-0.13mm
AA3003 Sliver Heavy Gauge Aluminum Foil Temper H24 Thickness 0.03-0.13mm
AA3003 Sliver Heavy Gauge Aluminum Foil Temper H24 Thickness 0.03-0.13mm
Specifications
Brand Name :
NOONDAY
Model Number :
Non Alloy
Certification :
RoHS/ISO9001/ASTM/JIS/GB/EN/ASTMB
Place of Origin :
China
MOQ :
5tons
Payment Terms :
L/C, T/T
Supply Ability :
50, 000 Mt Per Year
Delivery Time :
according to specification and quantity
Packaging Details :
Standard Export Packaging
Color: :
Sliver
Alloy States: :
3003
Surface Treatment: :
Mill finish
Technology: :
Rolling
Thickness: :
0.03mm-0.13mm
Width: :
200mm-1200mm
Application: :
For Container Foil And Describes The Quality Attributes Of The Master Foil Rolls.
Transport Package: :
Standard Export Packaging
Description

NOONDAY CONTAINER FOIL SPECIFICATION

Product Description

PURPOSE

To establish definitive quality standards on foil rolls, thereby minimizing claims attributable to any lack of understanding between supplier and customer.

OBJECTIVE

This specification covers 3003 alloy foil master rolls for container foil and describes the quality attributes of the master foil rolls.

PHYSICAL REQUIREMENTS

ALLOY AND TEMPER

Alloy and temper should correspond to Table 1.

Table 1

Alloy Temper
3003 H24

SPECIFICATION AND TOLERANCE

The specification is as below Table 2.

Table 2

Gauge

mm

Gauge Tolerance

mm

Width

mm

Width Tolerance

mm

ID

mm

OD

mm

 Core Material
0.03~0.13 ±5% 200~ 1200 ±1

Æ 76.2

Æ 150

Æ 152

600max to ID 76.2

900max to ID 150 & 152

Aluminium

&

Steel

CHEMICAL COMPOSITION

The chemical composition should correspond to Table 3.

Table 3

Alloy Si Fe Cu Mn Zn Others Al
Single Total Up
3003 0.6 0.7 0.05～0.20 1.0～1.5 0.10 0.05 0.15 ＞99.35

MECHANICAL PROPERTIES

Mechanical properties should correspond to Table 4.

Table 4

Alloy Temper

Gauge

mm

Tensile Strength

Mpa

Elongation

%

Erichsen

mm
3003 H24 0.03～0.13 140-190 ≥6.0 ≥4.5

SURFACE CONDITION

The surface shall be cleaned and free from inclusions, scratches, wrinkles, cracks, overlapping or other internal defects.

Pin-holes

The pin-holes should correspond to Table 5.

Table 5

Gauge 0.030～0.050 0.050～0.13
Pinholes/m2 ≤30 0

Spice

The splices are as below Table 6.

Table 6

Gauge,mm Splices
≤0.06 ≤1
＞0.06 0

a) All splices to be ultrasonic/tape.

b) It is allowed one splice per roll. (Max. once per 2000m)

c) Marked at the roll edge with a film, placed close to the splice.

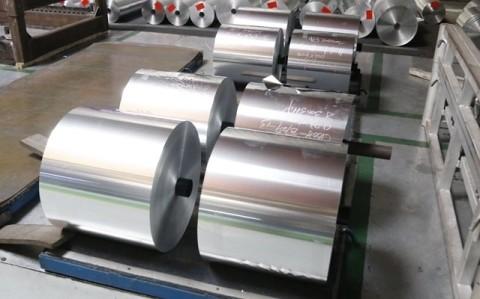

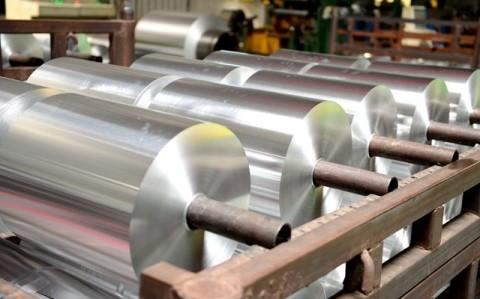

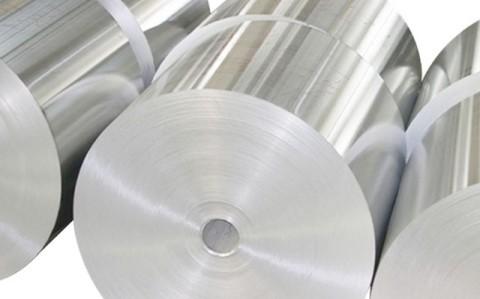

AA3003 Sliver Heavy Gauge Aluminum Foil Temper H24 Thickness 0.03-0.13mm AA3003 Sliver Heavy Gauge Aluminum Foil Temper H24 Thickness 0.03-0.13mm AA3003 Sliver Heavy Gauge Aluminum Foil Temper H24 Thickness 0.03-0.13mm

Our advantages:
1, Since 2008, we have rich experience in this industry in China;
2, Good reputation in the production of aluminium/aluminum plate areas;
3, We start our productions from aluminum ingot,so we can control the quality as well;
4, We have our own development department for new material research;
5, Good experience and cooperation with big clients in the world;
6, With Certificate ISO9001-2008;
7, High performance cost ratio;
8, Fast delivery time;
9, Customized orders available;
10, Good communication skills, and good service and understandings for customers.
