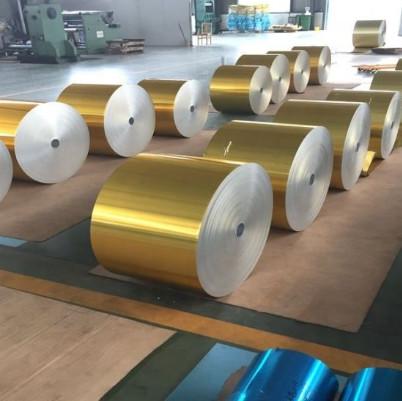

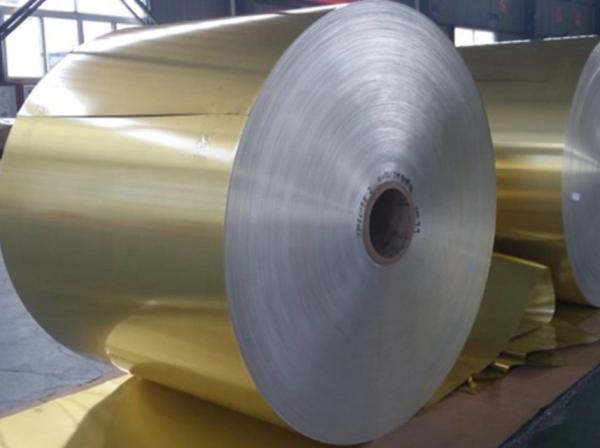

Hydrophilic Coating Aluminium Foil Roll Width 100mm-1600mm For Air Conditioner
Hydrophilic Coating Aluminium Foil Roll Width 100mm-1600mm For Air Conditioner
Hydrophilic Coating Aluminium Foil Roll Width 100mm-1600mm For Air Conditioner
Hydrophilic Coating Aluminium Foil Roll Width 100mm-1600mm For Air Conditioner
Hydrophilic Coating Aluminium Foil Roll Width 100mm-1600mm For Air Conditioner
Hydrophilic Coating Aluminium Foil Roll Width 100mm-1600mm For Air Conditioner
Specifications
Brand Name :
NOONDAY
Model Number :
AA8011/ AA1100/ AA3102
Certification :
RoHS/ISO9001/ASTM/JIS/GB/EN/ASTMB
Place of Origin :
China
MOQ :
5tons
Payment Terms :
L/C, T/T
Supply Ability :
50, 000 Mt Per Year
Delivery Time :
according to specification and quantity
Packaging Details :
Standard Export Packaging
Color: :
Sliver
Alloy States: :
AA8011/ AA1100/ AA3102
Surface Treatment: :
Light Blue, Dark Blue, Golden, Special White
Technology: :
Rolling
Thickness: :
0.08mm-0.20mm
Width: :
100mm-1600mm
Application: :
Cooling Exchanger,air Conditioners Rediators
Transport Package: :
Standard Export Packaging
Description

AA 8079 Thickness 0.01mm-0.2mm Hydrophil Aluminum Foil For Air Conditioner

Product Description:
The Hydrophilic Foil has a layer coating material, which has the performance of high corrosion resistance. It can be used in a variety of heat exchange constructions where the basic function is to efficiently transfer heat. Also this fin foil can be used for evaporator and condenser in most residential, automotive, and commercial air conditioning units and in humidifiers and other equipment.
Our company can produce aluminium coil used for aluminium/plastic composite panel, and the base material for color coated aluminium coil. The aluminium substrate gets degreased , chemically pre-treated and coated in a single production step which resulting in a high-quality uniform coating reproducible at any time and a material which has been developed for easy processing for a variety of application.
By changing the alloy, we have achieved on the basis of ensuring the fin formability and strength, the thickness of the fin is reduced. And then it can reduce the volume of equipment and improve heat transfer efficiency.
Usages:

1. Mainly for fin stock, air conditioner.

2. Widely used in insulation board

3. Aluminum curtain wall

4. Aluminum-magnesium-manganese roofing system

5. Aluminum ceiling

6. Acp and many other areas

7. Lighting,

8. Printing,

9. Packing,

10. Decorative,

11. Electronics surface,

12. Hot rolled thick plate,

13. PS base plate,

14. Aluminum plastic base plate,

15. Aluminum curtain wall base plate,

16. Aluminum composite panel base plate,

17. Aluminum spacer,

18. Aluminum embossed sheet,

19 Aluminum tread plate

Property:

Item
Technical data
Film Thickness
1.0-2.0um ( one side average thickness)
Hydrophilicity
Primary contact angle 10° / Continuous contact angle 20°
Adherence Strength
Erich-sen test(pressed depth 5 mm), no peeling off
Grinding test (100 / 100 ) : No separating
Corrosion Resistance
Salt&Spray (72 hours) R.N<9.5
Alkaid resistance
Dipped in 20% Na-OH under 20°C for 3 minutes. absolutely no blister.
Impregnable resistance
Sample weight loss < 1%
Heat resistance
Under 200℃ keep 5 minutes, performance and color unchanged

Under 300℃ keep 5 minutes, coating film become a bit yellow
Oil proof
24 Hours, no blister on the coating layer
Coating film odor
No stranger odor
Abrasion to mold
Same as ordinary aluminium foil

Our advantages:
1, Since 2008, we have rich experience in this industry in China;
2, Good reputation in the production of aluminium/aluminum plate areas;
3, We start our productions from aluminum ingot,so we can control the quality as well;
4, We have our own development department for new material research;
5, Good experience and cooperation with big clients in the world;
6, With Certificate ISO9001-2008;
7, High performance cost ratio;
8, Fast delivery time;
9, Customized orders available;
10, Good communication skills, and good service and understandings for customers.
