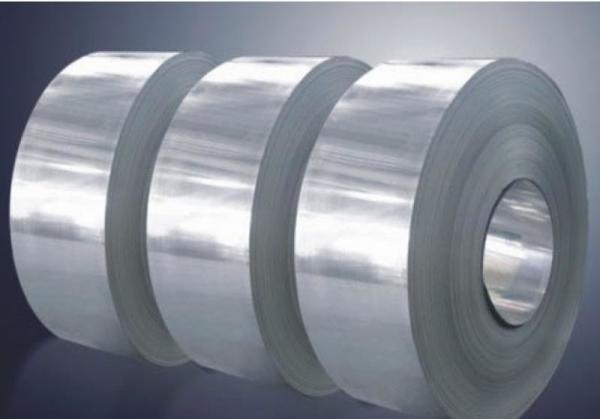

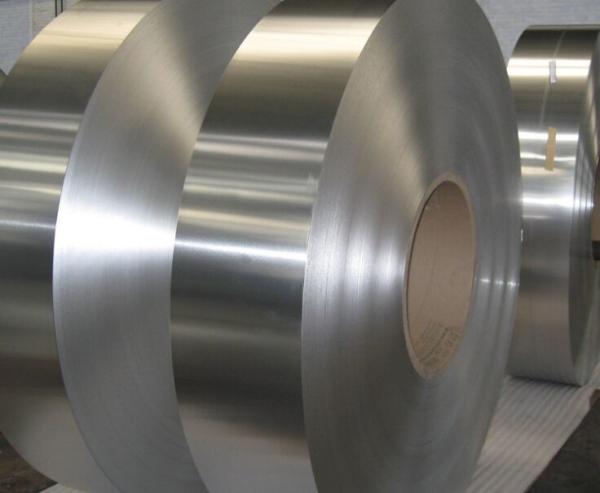

Decorative Thin Aluminum Strips High Machining Precision Corrosion Resistance
Decorative Thin Aluminum Strips High Machining Precision Corrosion Resistance
Decorative Thin Aluminum Strips High Machining Precision Corrosion Resistance
Decorative Thin Aluminum Strips High Machining Precision Corrosion Resistance
Decorative Thin Aluminum Strips High Machining Precision Corrosion Resistance
Decorative Thin Aluminum Strips High Machining Precision Corrosion Resistance
Specifications
Brand Name :
NOONDAY
Model Number :
AA1050/ AA1060/ AA1070
Certification :
RoHS/ISO9001/ASTM/JIS/GB/EN/ASTMB
Place of Origin :
China
MOQ :
5 tons
Payment Terms :
L/C, T/T
Supply Ability :
20, 000 Mt Per Year
Delivery Time :
according to specification and quantity
Packaging Details :
Standard Export Packaging
Color: :
Silver
Alloy States: :
AA1050/ AA1060/ AA1070
Surface Treatment: :
Mill Finish
Technology: :
Strip
Thickness: :
0.16-3.0mm
Width: :
20mm- 2000mm
Transport Package: :
Standard Export Packaging
Description

Corrosion Resistance Decorative Aluminum Strips High Machining Precision

Product Description

1. Application: Dry-type transformer

2: Alloy and Temper

AA1070,1070A,1060,1050,1050A,1350 , Temper: O

3 Specification and tolerance(mm)

Table 1: thickness tolerance

Thickness(Min) Thickness tolerance

Standard

(plus.minues)

 EN485 GB/T3880-2006
1000 1000～1250 1000 1000～1250
0.2～0.4 ±0.02 ±0.02 ±0.04 0.02 ±0.03
0.4～0.8 ±0.03 ±0.03 ±0.04～±0.06 0.03 ±0.04～±0.06
0.8～1.1 ±0.04 ±0.04 ±0.06～±0.07 0.04 ±0.06～±0.07
1.1～1.4 ±0.05 ±0.05 ±0.07～±0.09 0.05 ±0.07～±0.08
1.4～2.0 ±0.06 ±0.06 ±0.09～±0.11 0.06 ±0.08～±0.09
2.0～2.5 ±0.07 ±0.07 ±0.12 0.07 ±0.09
2.5～3.0 ±0.08 ±0.08 ±0.13 0.08 ±0.12

Table 2: edge curve

Width(mm) Edge curve
less than 150mm l ess than 1／2000
more than 150mm less than 2／2000

Table 3: high grade edge curve(mm)

width(more than) Curve(less than)
25～100 8
100～300 6
300～600 5
600～1000 4
1000～2000 3
2000～2500 3

4 Mechnical propety: As Per EN485

5 : conductivity

Under condition of annealing at temperature of 20℃,conductivity shall be :1/ρ20℃≥35.4m/Ω·mm2

Decorative Thin Aluminum Strips High Machining Precision Corrosion Resistance Decorative Thin Aluminum Strips High Machining Precision Corrosion Resistance


Our advantages:
1, Since 2008, we have rich experience in this industry in China;
2, Good reputation in the production of aluminium/aluminum plate areas;
3, We start our productions from aluminum ingot,so we can control the quality as well;
4, We have our own development department for new material research;
5, Good experience and cooperation with big clients in the world;
6, With Certificate ISO9001-2008;
7, High performance cost ratio;
8, Fast delivery time;
9, Customized orders available;
10, Good communication skills, and good service and understandings for customers.
