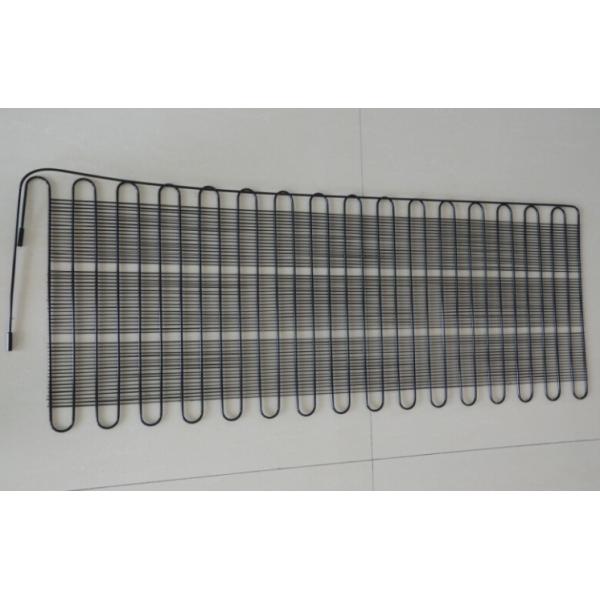

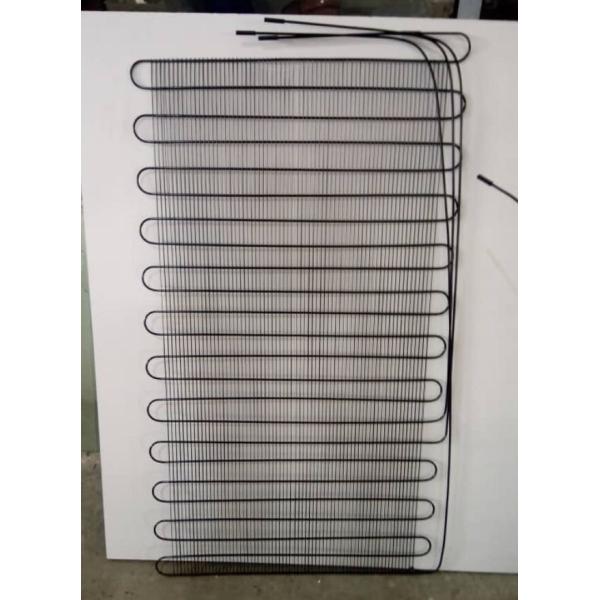

Black Coated WOT R404a Wire On Tube Condenser
Black Coated WOT R404a Wire On Tube Condenser
Black Coated WOT R404a Wire On Tube Condenser
Black Coated WOT R404a Wire On Tube Condenser
Specifications
Brand Name :
TATATO
Model Number :
TA-W11
Certification :
ISO
Place of Origin :
Anhui, China (Mainland)
MOQ :
500 Piece/Pieces
Price :
Negotiable
Supply Ability :
20000 Piece/Pieces per Day
Packaging Details :
Wooden case, sea-worthy packing , customizable
Type :
Black Coated WOT Condenser
Refrigerant :
R134a/R600a/R404a
Material :
Steel
Condition :
New
Voltage :
110-120v/220-240v
Application :
Refrigerator, Freezer
Size :
Customizable
Port :
Shanghai, Nanjing, Wuhu
Description
Electrophoretic Coated Steel Tube Suitable For R404a Refrigerator Freezer
Product Description
Wire Tube Condenser for Refrigerator

Technical Parameter:

1) Material:

a) Bundy tube (steel tube coated with copper): 4.76x0.7mm, 6x0.7mm, 6.35x0.7mm, 8x0.7mm

b) Low carbon steel wire: 1.0-1.6mm (both sides can be with steel plates and brackets)

c) Bracket: steel plate (SPCC), thickness 0.6-1.5

2) Structure: bundy tubes welded with steel wires

3) Painting: Cathode Electrophoretic Painting

4) Control Spec..:
Residual moisture: ≤ 5 mg/100cm3

Residual impurities: ≤ 10 mg / 100cm3

Residual mineral oil: ≤ 100 mg / 100cm3

Residual chloride ion: ≤ 5vloppm

Residual paraffin: ≤ 3mg / m2

Maximum single impurity: ≤ 0.5mm

WE can supply the products according to clients' drawings or samples, also can help the clients design and produce different condensers.

Black Coated WOT R404a Wire On Tube CondenserBlack Coated WOT R404a Wire On Tube Condenser

TAITONG REFRIGERATION with over years develpment of the parts and

components for refrigeraton. now becoming the biggest professional manufactuer

for evaproators , condensers and all type of the pipe system for refrigerators

in the fifth place in comprehensive ranking among the industry of the same kind.

Nearly 100,000 saqure meters

More than 1000 emplyees

Manage own brand TATATO

Obtain 100 patents

ISO9001-2008,ISO14001-2004 certificated

Black Coated WOT R404a Wire On Tube Condenser

Quanlity control

The central laboratory is equipped with the device which made by the world's top manufacturer.

They can carry out the test such as :the product composition analysis, mechanical performanceanalysis,

metallographic analysis, environmental simulation, heat test, testing analysis, corrosionanalysis, project.

Black Coated WOT R404a Wire On Tube CondenserBlack Coated WOT R404a Wire On Tube CondenserBlack Coated WOT R404a Wire On Tube Condenser

Workshop

Black Coated WOT R404a Wire On Tube Condenser

Cooperation customer

Black Coated WOT R404a Wire On Tube Condenser

Packing &Shipping

Black Coated WOT R404a Wire On Tube Condenser

TATATO showcase

Black Coated WOT R404a Wire On Tube Condenser

Black Coated WOT R404a Wire On Tube Condenser
