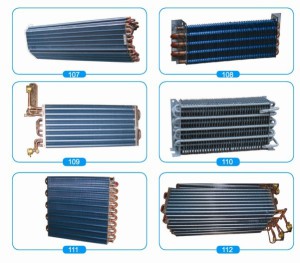

Fridge Aluminum Fin Heat Exchanger Well Distributed Liquid Dispensing
Fridge Aluminum Fin Heat Exchanger Well Distributed Liquid Dispensing
Specifications
Certification :
ISO
Place of Origin :
Anhui, China (Mainland)
Brand Name :
TATATO
Model Number :
TA-F13
Supply Ability :
10000 Piece/Pieces per Day
Packaging Details :
Wooden case, accept customized.
MOQ :
1x20ft container
Price :
Negotiable
Type :
Air Conditioner EVAPORATOR
Material :
Copper Tube and Aluminum Plate
Use for :
Air Conditoner
Refrigerant :
R134a, R600a, R22
Size :
Follow Customers' Request
Port :
Wuhu, Nanjing, Ningbo
Description
Flat Sheet Copper Finned Pipe Heat Exchanger Commercial 110 - 120 Voltage
Product Description
  • Well distributed liquid dispensing of windward area ofcondenser coil
  • High quality mechanical expanding or super high pressinghydraulic expanding between copper tube and fins, tight contacting andoptimized heat exchanging.
  • Free pitch distance selection, reduce the frost affection inlow temperature.
  • With single or double reverse-flow system, small waterresistance, good heat exchanging
  • With super high temperature vacuum drying, ensure innerwithout impurity or water substance.

Usage:

Productsare suitable for R134A, R22, R404A, R407C, and CO2 refrigerant.

Widely used for commercial refrigerators and freezers, commercial showcase cabinet,air-conditioning systems, dehumidifier, ice maker etc.

Material:

copper tube, aluminum fins, galvanized steel bracket ifneed
- Copper tube: made by Hailiang China,Φ5,Φ7mm,Φ7.94,Φ9.52, Φ12.7, Φ15.88, inner thread groove or smooth tube
- Aluminum foil: blue or other color hydrophilic, or uncoated bare
- Fin type: louver, flat, corrugated or slit fin
- Side plate: galvanized steel plate, stainless steel, aluminum or brass.

Production process:
Tube bending, punching fin, tube expanding, fins installation, drying, welding,leakage test, tube bending, quality inspection, packing

FQC & OQC:

Tightness testing: gas testing under 3.0Mpaair pressure
Leakage testing: water leakagetesting


Available pins:

No. Copper tube Diameter Holes & rows of pitch Fin
space		 Holes array Fin surface Fin edge type
1 Φ5/8”(15.88mm) 50x50mm 4~10mm Equilateral triangle Sin-wave & corrugated Flat + wave
2 Φ5/8”(15.88mm) 38x33mm 2.5~4mm Equilateral triangle Sin-wave & corrugated Flat + wave
3 Φ1/2”(12.7mm) 31.75x27.5mm 3~9mm Equilateral triangle Sin-wave & corrugated Flat + wave
4 Φ0.472” (12mm) 35x35mm 6~11mm Equilateral triangle Sin-wave & corrugated Flat + wave
5 Φ3/8”(9.52mm) 25x21.65mm 1.5~6mm Equilateral triangle Sin-wave & corrugated Flat + wave
6 Φ3/8”(9.52mm) 31.75x27.5mm 2.5~7.5mm Equilateral triangle Sin-wave & corrugated Flat + wave
7 Φ3/8”(9.52mm) 25x21.65mm 1.5~2.5mm Equilateral triangle Louver Flat
8 Φ3/8”(9.52mm) 25.4x19.05mm 1.8~5mm Equilateral triangle Louver Flat
9 Φ5/16”(7.94mm) 25x21.65mm 1.5~5mm Equilateral triangle Flat Flat + wave
10 Φ0.276” (7mm) 21x12.7mm 1.3~1.8mm Equilateral triangle Louver Flat

We can produce by customer order orsample, also can help customer design and produce different models of condenser& evaporator coil. Welcome sending your drawing or sample to us.

Fridge Aluminum Fin Heat Exchanger Well Distributed Liquid Dispensing

TAITONG REFRIGERATION with over years develpment of the parts and

components for refrigeraton. now becoming the biggest professional manufactuer

for evaproators , condensers and all type of the pipe system for refrigerators

in the fifth place in comprehensive ranking among the industry of the same kind.

Nearly 100,000 saqure meters

More than 1000 emplyees

Manage own brand TATATO

Obtain 100 patents

ISO9001-2008,ISO14001-2004 certificated

Fridge Aluminum Fin Heat Exchanger Well Distributed Liquid Dispensing

Quanlity control

The central laboratory is equipped with the device which made by the world's top manufacturer.

They can carry out the test such as :the product composition analysis, mechanical performanceanalysis,

metallographic analysis, environmental simulation, heat test, testing analysis, corrosionanalysis, project.

Fridge Aluminum Fin Heat Exchanger Well Distributed Liquid DispensingFridge Aluminum Fin Heat Exchanger Well Distributed Liquid DispensingFridge Aluminum Fin Heat Exchanger Well Distributed Liquid Dispensing

Workshop

Fridge Aluminum Fin Heat Exchanger Well Distributed Liquid Dispensing

Cooperation customer

Fridge Aluminum Fin Heat Exchanger Well Distributed Liquid Dispensing

Packing &Shipping

Fridge Aluminum Fin Heat Exchanger Well Distributed Liquid Dispensing

TATATO showcase

Fridge Aluminum Fin Heat Exchanger Well Distributed Liquid Dispensing

Fridge Aluminum Fin Heat Exchanger Well Distributed Liquid Dispensing

contact us

Fridge Aluminum Fin Heat Exchanger Well Distributed Liquid Dispensing
