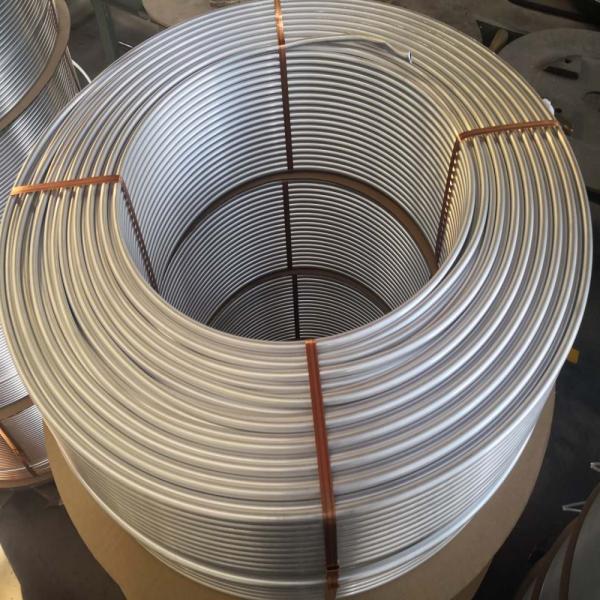

φ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditioner
φ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditioner
Specifications
Brand Name :
TATATO
Model Number :
TA-L03
Certification :
REACH & ROHS & WEEE & PFOS
Place of Origin :
CHINA
MOQ :
1000 kgs
Price :
Negotiable
Supply Ability :
30000 kgs/day
Delivery Time :
7-10 days
Packaging Details :
Wooden Pallet
Material :
Aluminum
Color :
Silver
Application :
Air Conditioner Heat Exchanger
Outer Diameter :
7.94mm
Process :
Conform Extrusion--Drawing
Thickness :
0.4-0.5mm
Thread :
Vertical
Description

Product Description
1. Item no.: TA-L03

2. Specification

The aluminum tube has high ductility through extrusion and drawing. And the tooth height from 0.05mm to 0.25mm

enhances its heat conduction performance. Now it is growing popular in air conditioner’s heat exchange system

especially high end air conditioner due to its low cost and better performance.

Spec. Wall thickness Groove height(mm) Groove number Helix angle Groove top angle Weight per meter(g)
φ7.94mm 0.4-0.5mm 0.05-0.25mm 40-50 18° 50° 40±3

3. Production line

φ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditionerφ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditioner


4. Packing

φ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditioner

TAITONG REFRIGERATION with over years develpment of the parts and

components for refrigeraton. now becoming the biggest professional manufactuer

for evaproators , condensers and all type of the pipe system for refrigerators

in the fifth place in comprehensive ranking among the industry of the same kind.

Nearly 100,000 saqure meters

More than 1000 emplyees

Manage own brand TATATO

Obtain 100 patents

ISO9001-2008,ISO14001-2004 certificated

φ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditioner

Quanlity control

The central laboratory is equipped with the device which made by the world's top manufacturer.

They can carry out the test such as :the product composition analysis, mechanical performanceanalysis,

metallographic analysis, environmental simulation, heat test, testing analysis, corrosionanalysis, project.

φ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditionerφ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditionerφ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditioner

Workshop

φ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditioner

Cooperation customer

φ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditioner

Packing &Shipping

φ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditioner

TATATO showcase

φ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditioner

φ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditioner

contact us

φ7.94mm Threaded Aluminum Tube in Coil High Ductility for Air Conditioner
