49HRC Hardness Cold Chamber Casting Shot Sleeves For Aluminum Die Casting Industry
49HRC Hardness Cold Chamber Casting Shot Sleeves For Aluminum Die Casting Industry
49HRC Hardness Cold Chamber Casting Shot Sleeves For Aluminum Die Casting Industry
49HRC Hardness Cold Chamber Casting Shot Sleeves For Aluminum Die Casting Industry
49HRC Hardness Cold Chamber Casting Shot Sleeves For Aluminum Die Casting Industry
49HRC Hardness Cold Chamber Casting Shot Sleeves For Aluminum Die Casting Industry
Specifications
Brand Name :
CUSTOM
Model Number :
Die Casting Shot Sleeves
Certification :
Material Certificate
Place of Origin :
CHINA
MOQ :
1
Price :
EUR1600~2500 EACH
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
25PCS PER MONTH
Delivery Time :
30DAYS
Packaging Details :
POLY BAG+WOODEN CARTON
Material :
1.2344,H13
Outer Diameter :
249mm
Inside Diameter :
118mm
Length :
805mm
Finish :
Heat treatment Gas Nitridation
Hardness :
49HRC
Used :
PDC Cold Chamber Machine
Tolerance of Inside Diameter :
H7 +0.035-0
Description

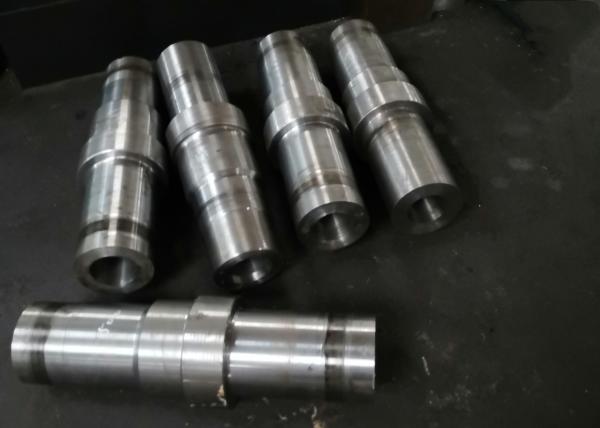

Aluminium Pressure Die Casting Shot Sleeve for Die Casting Industry

Product Description

  • The Pressure Die Casting Shot Sleeve is the critical to the sucess of the die casting operation.
  • The Primary Function of a Die Casting Shot Sleeve is to receive and hold the molten metal after ladling.
  • The Die Casting Shot Sleeve provides a pressure chamber to contain the metal during injection and intensification.
  • The quality of die castings will depend on the ability of the shot sleeve to convey the molten alloy into the die cavity.

Material H13,1.2344
Tolerance of Inside Diameter H7 +0.035 -0
Material Conditions Annealed
Hardness 477~475HB
Lifetime Over than 1year as per your requirement
Surface Treatment Gas Nitridation 0.2mm
Material Shaped Forged
Market European, US

49HRC Hardness Cold Chamber Casting Shot Sleeves For Aluminum Die Casting Industry

49HRC Hardness Cold Chamber Casting Shot Sleeves For Aluminum Die Casting Industry

Why Choose Us?

  • Strictly Control the Shot Sleeve Inside Diameter;
  • The length of 1130mm can be available;
  • Our Quality Shot Sleeves is helpful for problem-free operation;
  • Quality Certificate of Material Guaranteed;
  • Quality Sourced Finish Treatment Ensured ;
  • Lower Priced Parts;
  • Delivered on time;
  • Located in Die Casting Industry Base In China;
  • Focus on Tooling & Mold Spare Parts;
  • More Than 7 Years` Experiences on Hardware;
  • These Die-Casting Machine Parts Are Used In Toshiba, Buhler, Ube, Lk, Yizhi Mi, Etc;
  • Mold Parts Equipped With The Production Of Automotive OEM Mold;
  • One Stop Solution;
  • Manufacturing Capacity of Shot Sleeves over 85pcs each Month;
  • Enjoy High Reputation Among Customers.

49HRC Hardness Cold Chamber Casting Shot Sleeves For Aluminum Die Casting Industry
