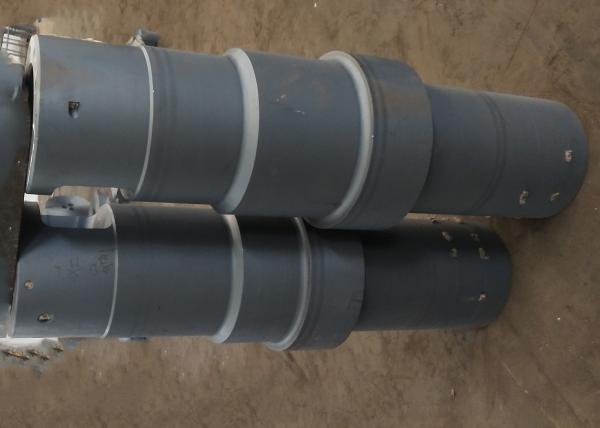

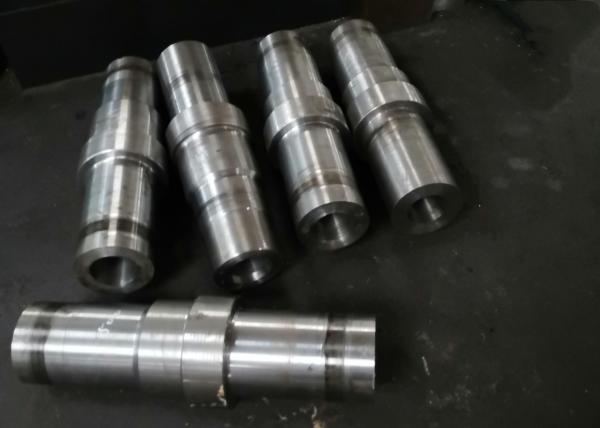

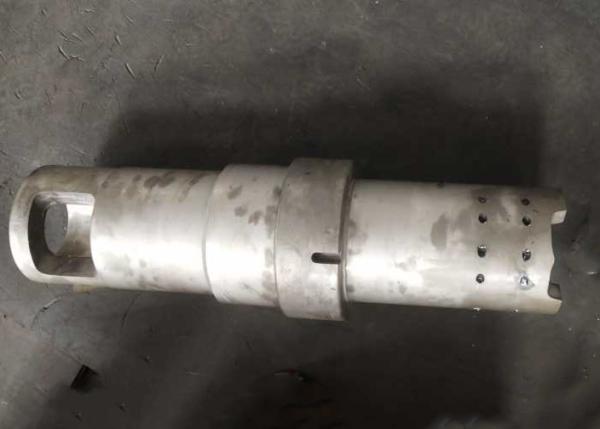

Nitrided H13 Steel Die Casting Shot Sleeve 49HRC Hardness For Injection System
Nitrided H13 Steel Die Casting Shot Sleeve 49HRC Hardness For Injection System
Nitrided H13 Steel Die Casting Shot Sleeve 49HRC Hardness For Injection System
Nitrided H13 Steel Die Casting Shot Sleeve 49HRC Hardness For Injection System
Nitrided H13 Steel Die Casting Shot Sleeve 49HRC Hardness For Injection System
Nitrided H13 Steel Die Casting Shot Sleeve 49HRC Hardness For Injection System
Specifications
Brand Name :
CUSTOM
Model Number :
Steel Die Casting Shot Sleeve
Certification :
Material Certificate
Place of Origin :
CHINA
MOQ :
1
Price :
EUR1800~2400 EACH
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
25PCS PER MONTH
Delivery Time :
30DAYS
Packaging Details :
POLY BAG+WOODEN CARTON
Material :
1.2344
Outer Diameter :
249mm
Inside Diameter :
110mm
Length :
805mm
Finish :
Heat treatment Gas Nitridation
Hardness :
49HRC
Design :
With Cooling System
Used :
PDC Cold Chamber Machine
Description

Nitrided H13 Steel Die Casting Shot Sleeve used in the injection system of die casting industry

Product Description

The Steel Die Casting Shot Sleeve is the critical to the sucess of the die casting operation.

Material H13,1.2344,SKD61,Dievar,Others
Surface Finish Rough Peeled
Material Conditions Annealed
Hardness 477~475HB
Lifetime Over than 1year as per your requirement
Surface Treatment Gas Nitridation 0.2mm
Material Shaped Forged
Other Parts Available Shot Tips ,Shot Cylinder and The Plunger Rod

Nitrided H13 Steel Die Casting Shot Sleeve 49HRC Hardness For Injection System

Nitrided H13 Steel Die Casting Shot Sleeve 49HRC Hardness For Injection System

Material Datasheet for Pressure Die casting Shot Sleeve

H13 is a hot work chromium-molybdenum-vanadium tool steel. It has excellent working properties and offers
high temperature strength and wear resistance.

H13 used to fabircate die casting shot sleeves has to be heat treatment to provide a suitable combination of toughness and resistance to thermal fatigue, erosion and wear.

  • Common H13 Tool Steel Related Specifications

Country USA German Japan
Standard ASTM A681 DIN EN ISO 4957 JIS G4404
Grades H13 1.2344/X40CrMoV5-1 SKD61

  • H13 Tool Steel Chemical Composition
ASTM A681 C Mn P S Si Cr V Mo
H13 0.32 0.45 0.2 0.6 0.03 0.03 0.8 1.25 4.75 5.5 0.8 1.2 1.1 1.75
DIN ISO 4957 C Mn P S Si Cr V Mo
1.2344 /X40CrMoV5-1 0.35 0.42 0.25 0.5 0.03 0.02 0.8 1.2 4.8 5.5 0.85 1.15 1.1 1.5
JIS G4404 C Mn P S Si Cr V Mo
SKD61 0.35 0.42 0.25 0.5 0.03 0.02 0.8 1.2 4.8 5.5 0.8 1.15 1 1.5

Why Choose Us?

  • Quality Certificate of Material Guaranteed;
  • Quality Sourced Finish Treatment Ensured ;
  • Competitively Priced Parts;
  • Delivered on time;
  • Located in Die Casting Industry Base In China;
  • Focus on Tooling & Mold Spare Parts;
  • More Than 7 Years` Experiences on Hardware;
  • These Die-Casting Machine Parts Are Used In Toshiba, Buhler, Ube, Lk, Yizhi Mi, Etc;
  • Mold Parts Equipped With The Production Of Automotive OEM Mold;
  • One Stop Solution;
  • Manufacturing Capacity of Shot Sleeves over 85pcs each Month;
  • Enjoy High Reputation Among Customers.
