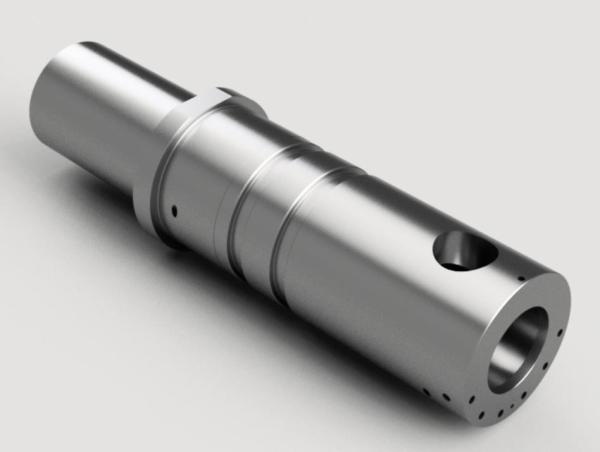

Annealed Die Casting Shot Sleeve 47 - 49HRC Hardness With Cooling System
Annealed Die Casting Shot Sleeve 47 - 49HRC Hardness With Cooling System
Annealed Die Casting Shot Sleeve 47 - 49HRC Hardness With Cooling System
Annealed Die Casting Shot Sleeve 47 - 49HRC Hardness With Cooling System
Annealed Die Casting Shot Sleeve 47 - 49HRC Hardness With Cooling System
Annealed Die Casting Shot Sleeve 47 - 49HRC Hardness With Cooling System
Specifications
Brand Name :
custom
Model Number :
Pressure Die casting Shot Sleeves
Place of Origin :
China
MOQ :
1
Price :
USD50~USD6000
Supply Ability :
50PIECES EACH MONTH
Delivery Time :
3weeks
Packaging Details :
Wooden Carton suitable rough handle during transit
Item :
Die casting Shot Sleeves
Material :
H13,1.2344,SKD61
Surface Finish :
Rough Peeled
Material Conditions :
Annealed
Hardness :
47~49HRC,477~475HB
Lifetime :
Over than 1 years
Size :
From 160tonnage to 3000tonnage die casting machine
Material Quality :
Certified
Shot Sleeves :
Gas Nitridation
Material Shaped :
Forging
Description

Annealed Aluminum Pressure Die Casting HPDC Shot Sleeves With Cooling System

Product Description

This Pressure Die Casting HPDC Shot Sleeve is a key Element of the Aluminum Die Cast Process.

This HPDC Shot Sleeve can totally consider the failures of shot sleeves.

The Shot sleeves normally fail from one of the following five reasons:

  • Erosion under the pour hole
  • Soldering of the aluminum to the sleeve
  • Wear and scoring on the internal surface
  • Gross or large scale cracking leading to catastrophic failure
  • Thermal fatigue producing small surface cracks (heat checking) on the inside surface

Material H13,1.2344,SKD61,Others
Surface Finish Rough Peeled
Material Conditions Annealed
Hardness 47~49HRC,477~475HB
Lifetime Over than 1year as per your requirement
Surface Treatment Gas Nitridation 0.2mm
Material Shaped Forging
The main components of the shot system 1.The cold chamber or shot sleeve
2.The plunger tip or shot tip
3.The shot cylinder
4.The plunger rod

Annealed Die Casting Shot Sleeve 47 - 49HRC Hardness With Cooling System

Annealed Die Casting Shot Sleeve 47 - 49HRC Hardness With Cooling System

Annealed Die Casting Shot Sleeve 47 - 49HRC Hardness With Cooling System

Material Datasheet for Pressure Die casting Shot Sleeve

H13 is a hot work chromium-molybdenum-vanadium tool steel. It has excellent working properties and offers
high temperature strength and wear resistance.

  • Common H13 Tool Steel Related Specifications

Country USA German Japan
Standard ASTM A681 DIN EN ISO 4957 JIS G4404
Grades H13 1.2344/X40CrMoV5-1 SKD61

  • H13 Tool Steel Chemical Composition
ASTM A681 C Mn P S Si Cr V Mo
H13 0.32 0.45 0.2 0.6 0.03 0.03 0.8 1.25 4.75 5.5 0.8 1.2 1.1 1.75
DIN ISO 4957 C Mn P S Si Cr V Mo
1.2344 /X40CrMoV5-1 0.35 0.42 0.25 0.5 0.03 0.02 0.8 1.2 4.8 5.5 0.85 1.15 1.1 1.5
JIS G4404 C Mn P S Si Cr V Mo
SKD61 0.35 0.42 0.25 0.5 0.03 0.02 0.8 1.2 4.8 5.5 0.8 1.15 1 1.5
