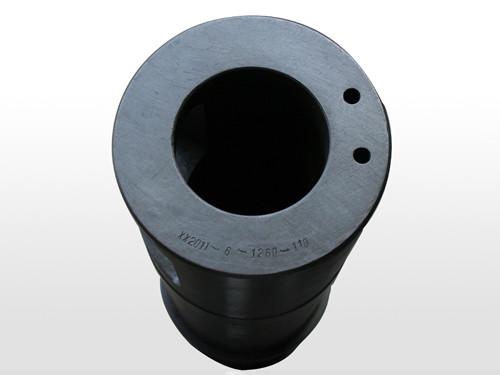

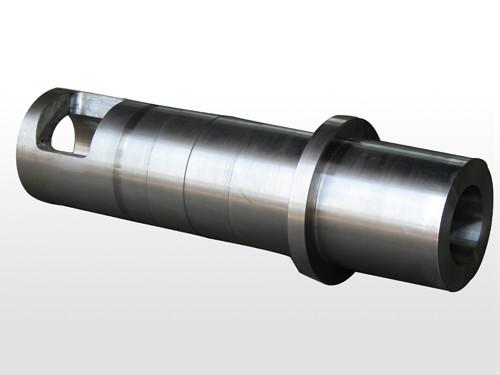

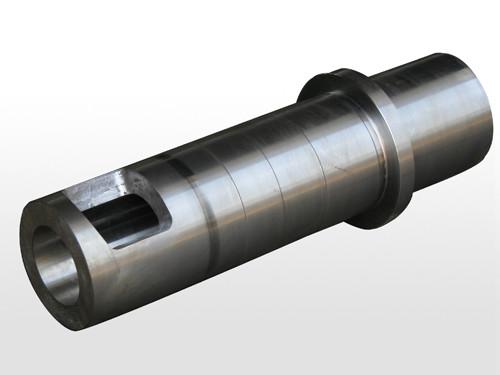

160T - 3000T Shot Sleeve Die Casting Rough Peeled Surface Annealed Material
160T - 3000T Shot Sleeve Die Casting Rough Peeled Surface Annealed Material
160T - 3000T Shot Sleeve Die Casting Rough Peeled Surface Annealed Material
160T - 3000T Shot Sleeve Die Casting Rough Peeled Surface Annealed Material
160T - 3000T Shot Sleeve Die Casting Rough Peeled Surface Annealed Material
160T - 3000T Shot Sleeve Die Casting Rough Peeled Surface Annealed Material
Specifications
Brand Name :
custom
Model Number :
Aluminum Die Casting Application Shot Sleeves
Place of Origin :
China
MOQ :
1
Supply Ability :
50PIECES EACH MONTH
Delivery Time :
3weeks
Packaging Details :
Wooden Carton suitable rough handle during transit
Item :
Shot Sleeves
Material :
H13,1.2344,SKD61
Surface Finish :
Rough Peeled
Material Conditions :
Annealed
Hardness :
47~49HRC,477~475HB
Lifetime :
Over than 1 years
Size :
From 160tonnage - 3000tonnage die casting machine
Material Quality :
Certified
Shot Sleeves :
Gas Nitridation
Material Shaped :
Forging
Description

Aluminum Die Casting Application and 160T - 3000T Dimensions Shot Sleeve

Product Description

  • Good Alignment of our Shot Sleeve between the plunger tip and the cold chamber.
  • Exactly Dimensions to keep these components function as a system for successful operation
  • Application on Die Casting foundry and Die Casting mould
  • Correctly Inside Diameter is to keep problem - free operation
  • Wear and scoring on the internal surface
  • Gross or large scale cracking leading to catastrophic failure
  • Thermal fatigue producing small surface cracks (heat checking) on the inside surface

Material H13,1.2344,SKD61,Others
Surface Finish Rough Peeled
Material Conditions Annealed
Hardness 47~49HRC,477~475HB
Lifetime Over than 1year as per your requirement
Surface Treatment Gas Nitridation 0.2mm
Material Shaped Forging
The main components of the shot system 1.The cold chamber or shot sleeve
2.The plunger tip or shot tip
3.The shot cylinder
4.The plunger rod

Material Datasheet for Aluminum Die casting Application Shot Sleeve

H13 used to fabricate shot sleeves has to be heat treated to provide a suitable combination of toghness, and resistance to thermal fatigue, erosion and wear.

  • Common H13 Tool Steel Related Specifications

Country USA German Japan
Standard ASTM A681 DIN EN ISO 4957 JIS G4404
Grades H13 1.2344/X40CrMoV5-1 SKD61

  • H13 Tool Steel Chemical Composition
ASTM A681 C Mn P S Si Cr V Mo
H13 0.32 0.45 0.2 0.6 0.03 0.03 0.8 1.25 4.75 5.5 0.8 1.2 1.1 1.75
DIN ISO 4957 C Mn P S Si Cr V Mo
1.2344 /X40CrMoV5-1 0.35 0.42 0.25 0.5 0.03 0.02 0.8 1.2 4.8 5.5 0.85 1.15 1.1 1.5
JIS G4404 C Mn P S Si Cr V Mo
SKD61 0.35 0.42 0.25 0.5 0.03 0.02 0.8 1.2 4.8 5.5 0.8 1.15 1 1.5

160T - 3000T Shot Sleeve Die Casting Rough Peeled Surface Annealed Material

160T - 3000T Shot Sleeve Die Casting Rough Peeled Surface Annealed Material
