4 Feet Width Coated Expanded Metal , 5 X 10mm Carbon Steel Woven Metal Mesh
4 Feet Width Coated Expanded Metal , 5 X 10mm Carbon Steel Woven Metal Mesh
4 Feet Width Coated Expanded Metal , 5 X 10mm Carbon Steel Woven Metal Mesh
4 Feet Width Coated Expanded Metal , 5 X 10mm Carbon Steel Woven Metal Mesh
Specifications
Brand Name :
Anao
Model Number :
5x10mm
Certification :
CE,PC+SC
Place of Origin :
Hebei China
MOQ :
10 rolls
Price :
Negotiable
Supply Ability :
One 20' container per month
Delivery Time :
30 days after receiving deposit or L/C
Packaging Details :
Paper,woven bag
Product :
Galvanized expanded metal mesh
Material :
Steel coils
Mesh opening :
5x10mm
Thickness :
0.5mm
Mesh Width :
4 feet
Mesh length :
12m
Weight :
6.5kg/roll
Coated :
Customized
Description

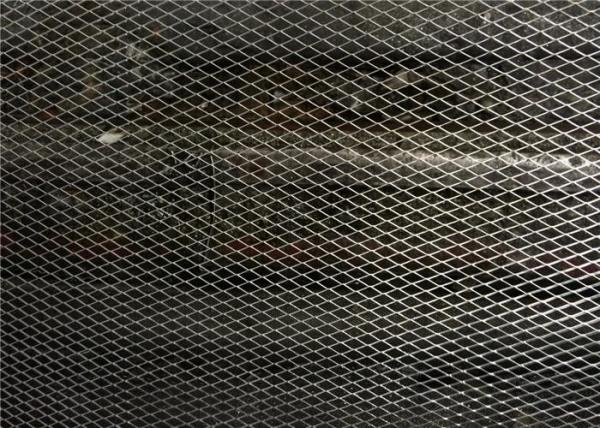

4 Feet Width 5x10mm Steel Expanded Metal Mesh With Weight 6.5KG Per Roll

Expanded Metal is produced from solid sheets or plates of carbon, galvanized and stainless steel, as well
as aluminum and a variety of alloys of copper, nickel, silver, titanium and other metals. Because expanded metal is made from a solid sheet of metal, and it is not woven or welded - it can never unravel.
To produce expanded metal, a sheet or plate is simultaneously slit and stretched. This process expands the cuts into diamond shaped holes of uniform size and shape. Because no metal is lost in the expanding process,expanded metal is cost effective and saves energy by conserving material and allowing the fabrication to go further and do more.

Introduction:

4 Feet Width Coated Expanded Metal , 5 X 10mm Carbon Steel Woven Metal Mesh


When choosing expanded metal for your fence application, you will need to determine which style or diamond size is best for your application. Expanded metal designations are indicated by SWD (the measurement on the short way of diamond), while the second number may specify the gauge of metal,
the weight per hundred sq. foot, or have some other significance.

Another consideration when ordering expanded metal mesh panels is the actual metal strand width and
metal strand thickness. These are important because they contribute the actual opening size of the
diamond and the % open area or visibility through the fence.

Specifications:

Expanded metal mesh
SWD&LWD 5*10mm
Thickness 0.5mm
Mesh width 4 feet
Mesh length 12m
Net weight 6.5kg/roll

Expanded metal mesh during production:

4 Feet Width Coated Expanded Metal , 5 X 10mm Carbon Steel Woven Metal Mesh
