Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh
Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh
Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh
Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh
Specifications
Brand Name :
Anao
Model Number :
YNS
Certification :
ISO
Place of Origin :
Hebei China
MOQ :
100 rolls
Price :
Negotiable
Supply Ability :
One 20' container per month
Delivery Time :
30 days after receiving deposit or L/C
Packaging Details :
each roll in one carton
Product :
aluminum expanded metal mesh
Mesh style :
Diamond
Thickness :
0.3mm-3.0mm
Mesh width :
0.5-1.5 meter
Mesh length :
18-50 meter
Material :
Aluminum
Description

Diamond Aluminum Expanded Metal Mesh For Doors Security With All Kinds Color

Diamond expanded mesh is also one of the wire mesh industry. It is also called anti glare net, expanded metal net, diamond net, punching net and so on.

Diamond expanded mesh is a metal sheet with diamond shaped mesh formed after stamping and stretching through special machinery.

Material: low carbon steel plate, stainless steel plate, aluminum magnesium alloy plate, aluminum plate.

Applications:

Because of aluminum expanded metal mesh's favorable strength-to-weight ratio and attractive finish, aluminum expanded metal has hundreds of uses from air filters to patio furniture to walkways.

Sizes:

Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh
Long way of mesh: TB: 12.5-200mm
Short way of mesh: 5-80mm
Thickness: 0.5-8mm
Expanded metal mesh at length from 600-4000mm and width from 600-2000m

Sheet
Thickness		 Opening in
Width(mm)		 Opening in
Length(mm)		 Stem
mm		 Roll width
mm		 Roll Length
mm		 Weight
kg/m 2
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
4 80 180 4 2 10 3.0
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.2

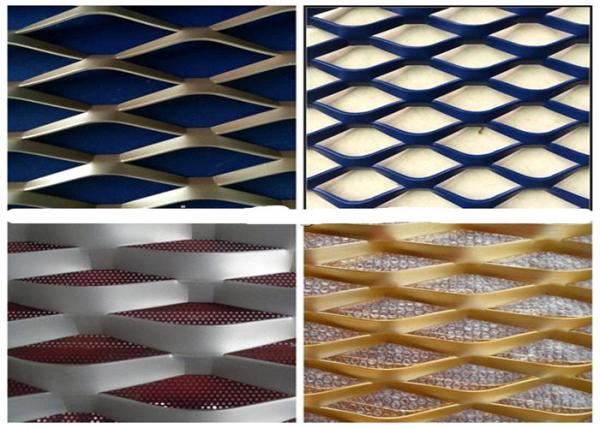

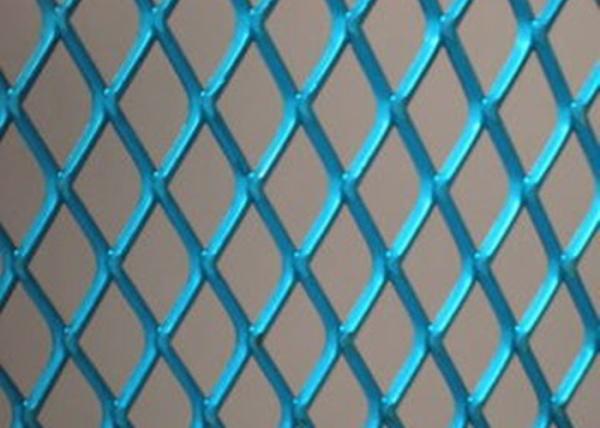

Aluminum Expanded Metal Mesh Pictures:
Anti Glare Aluminum Diamond Mesh Screen , Punching Flat Expanded Metal Mesh
